Ubiquiti Active Ethernet 24V Fibre-to-Ethernet Media Converter
- SKU: UACC-AE
$27.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information
Active Ethernet 24V Fibre-to-Ethernet Media Converter
A fiber-to-copper media module that allows wireless equipment without SFP ports to support fiber uplinks up to 1 Gbps.
Features:

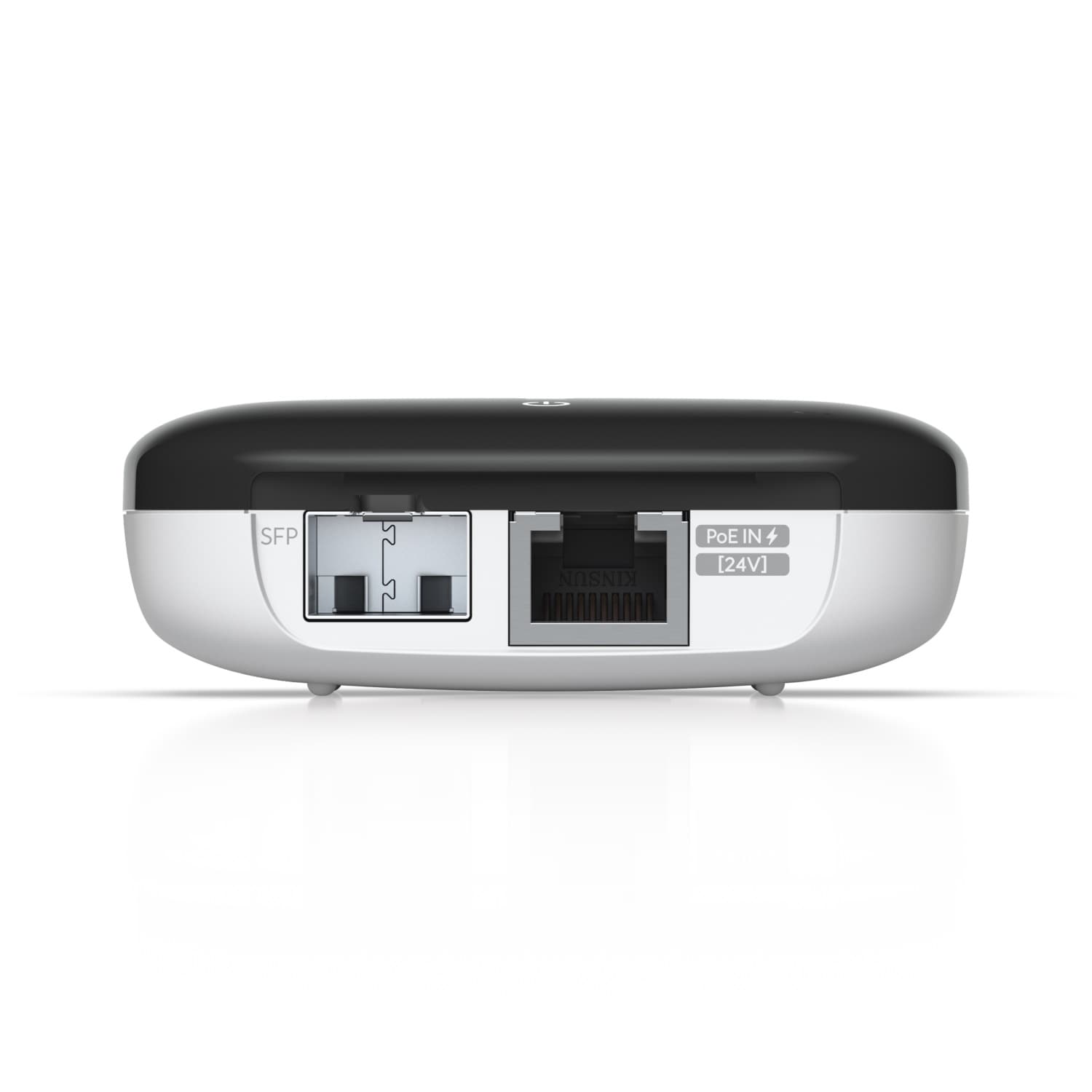

- (1) SFP port and (1) GbE RJ45 LAN port
- Fiber-to-Ethernet conversion
- Fiber connectivity to any PoE device
- Designed for indoor use
Specifications
Specifications UACC-AE
| Dimensions | 76.5 x 76.5 x 26.8 mm (3 x 3 x 1") |
| Weight | 70 g (2.4 oz) |
| Enclosure material | UV-stabilized polycarbonate (PC110U) |
| Hardware | |
| Networking interface | (1) 1 Gbps SFP Port (1) GbE RJ45 port |
| Power method | PoE (Pins 1, 2+; 3, 6-) Passive PoE, 24V (Pins 4, 5+; 7, 8-) |
| Power supply | UniFi PoE switch |
| Max. power consumption | 1.5W |
| Supported voltage range | 16–57V |
| Ambient operating temperature | -40 to 60° C (-40 to 140° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |

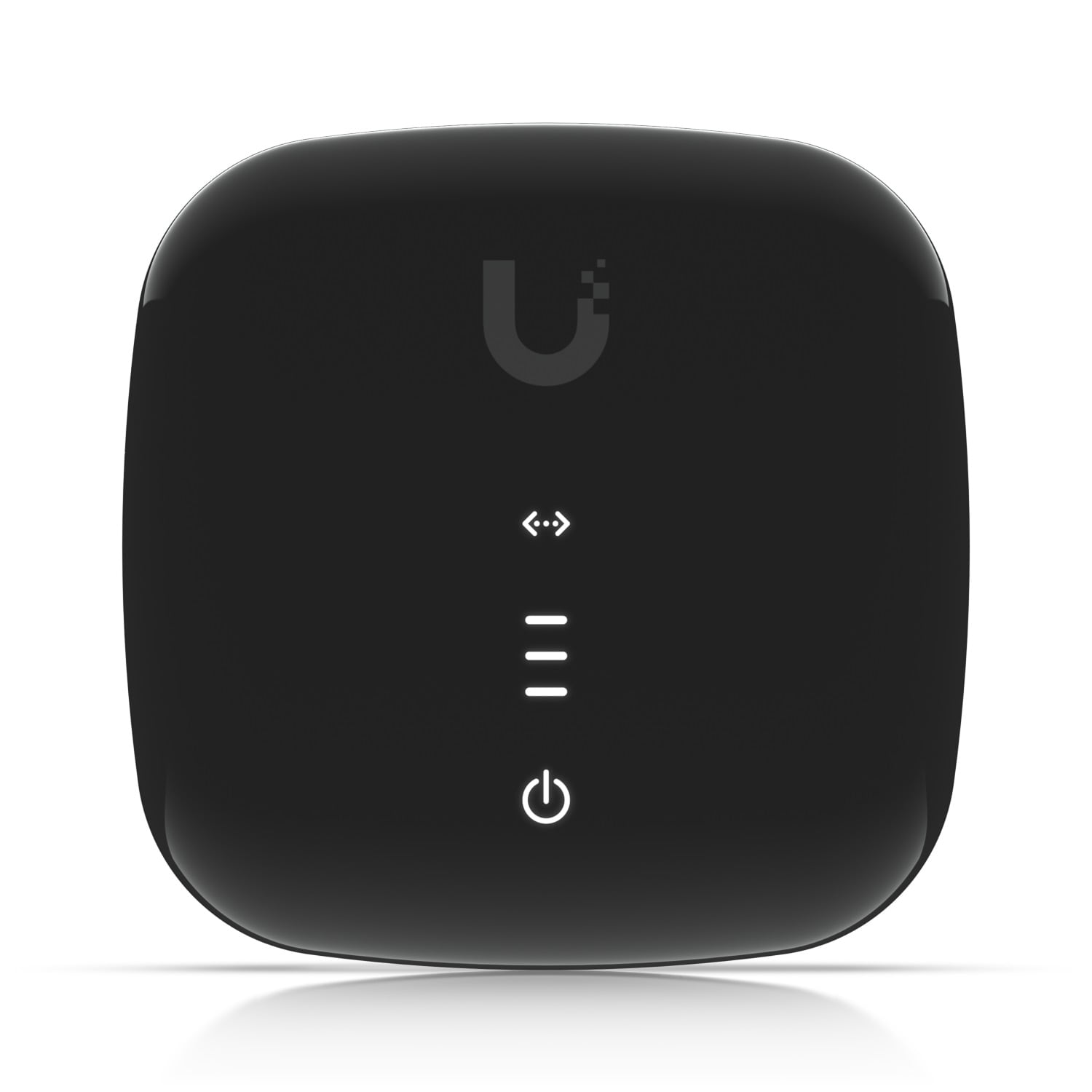

| LEDs | |
| Status | (1) Signal LEDs Steady white:power on |
| Ethernet | Blinking blue: activity |
