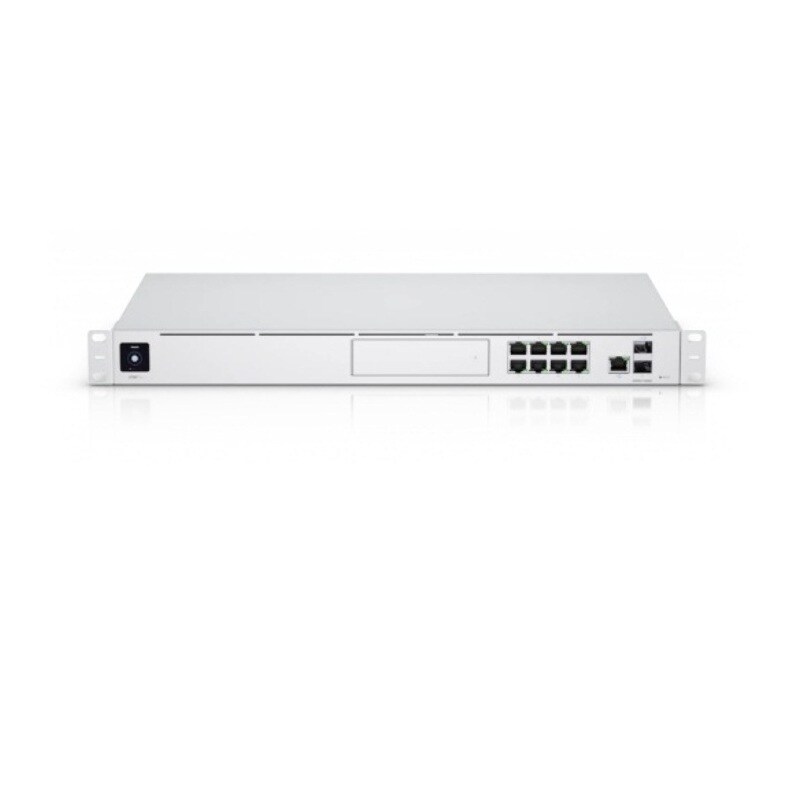

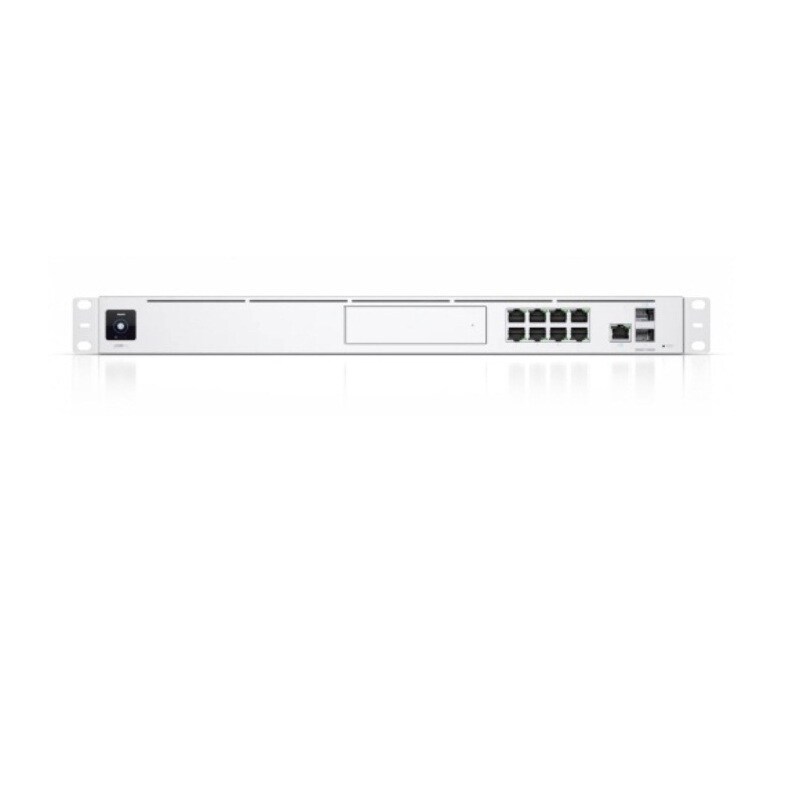

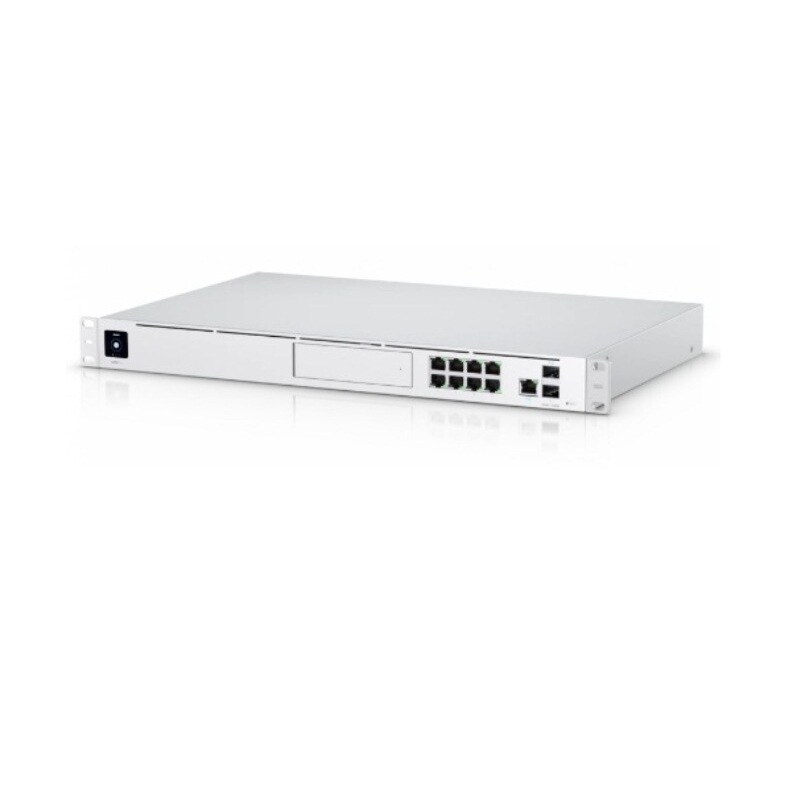

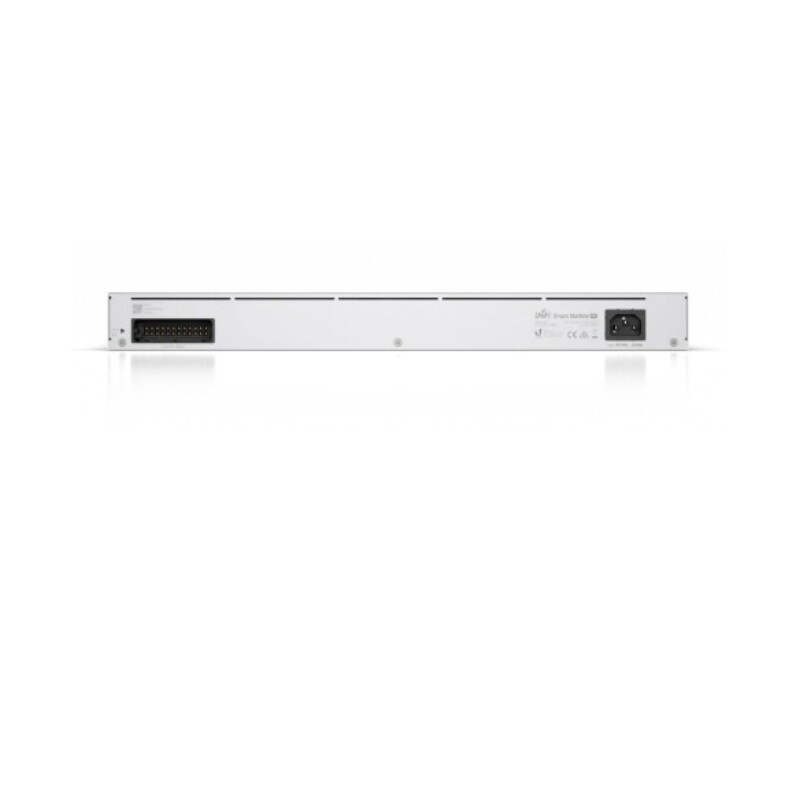

Ubiquiti UniFi Dream Machine Pro Cloud Gateway
- SKU: UDM-Pro
$379.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information
10G Cloud Gateway with 100+ UniFi device / 1,000+ client support and 3.5 Gbps IPS routing.
Specifications
Specifications UDM-Pro
| Dimensions | 442.4 x 43.7 x 285.6 mm (17.42 x 1.72 x 11.24") |
| Weight With Brackets | 3.90 kg (8.60 lb) 3.99 kg (8.80 lb) |
| Interfaces Networking Management | (8) 10/100/1000 RJ45 LAN Ports (1) 10/100/1000 RJ45 WAN Port (1) 1/10G SFP+ LAN Port (1) 1/10G SFP+ WAN Port Ethernet In-Band (1) Bluetooth BLE |
| IDS/IPS Throughput | 3.5 Gbps* |
| Processor | Quad ARM Cortex-A57 Core at 1.7 GHz |
| System Memory | 4 GB DDR4 |
| On-Board Flash Storage | 16 GB eMMC |
| Max Power Consumption | 33W |
| Voltage Range | 100 to 240VAC |
| Power Method | (1) Universal AC Input, 100-240VAC, 50/60 Hz (1) RPS DC Input |
| Power Supply | Internal 50W/12V |
| LEDs HDD RJ45 SFP+ | Activity Link/Speed/Activity Link/Speed/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Operating Temperature | -10 to 40° C (14 to 104° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
