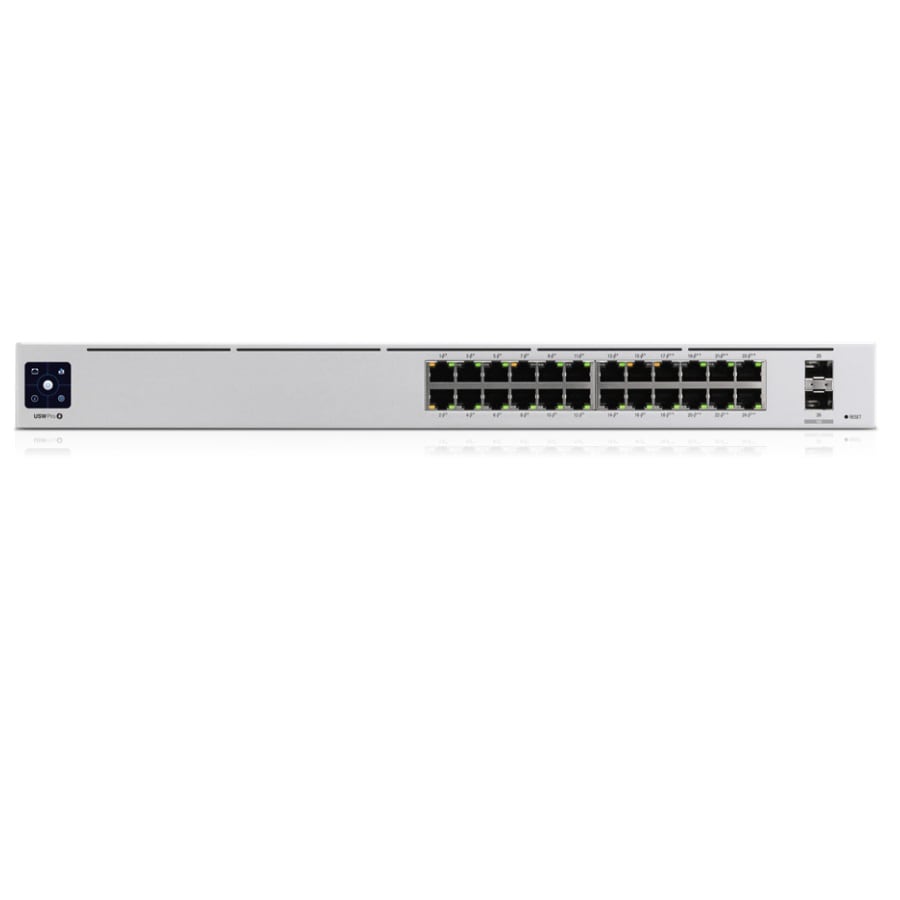

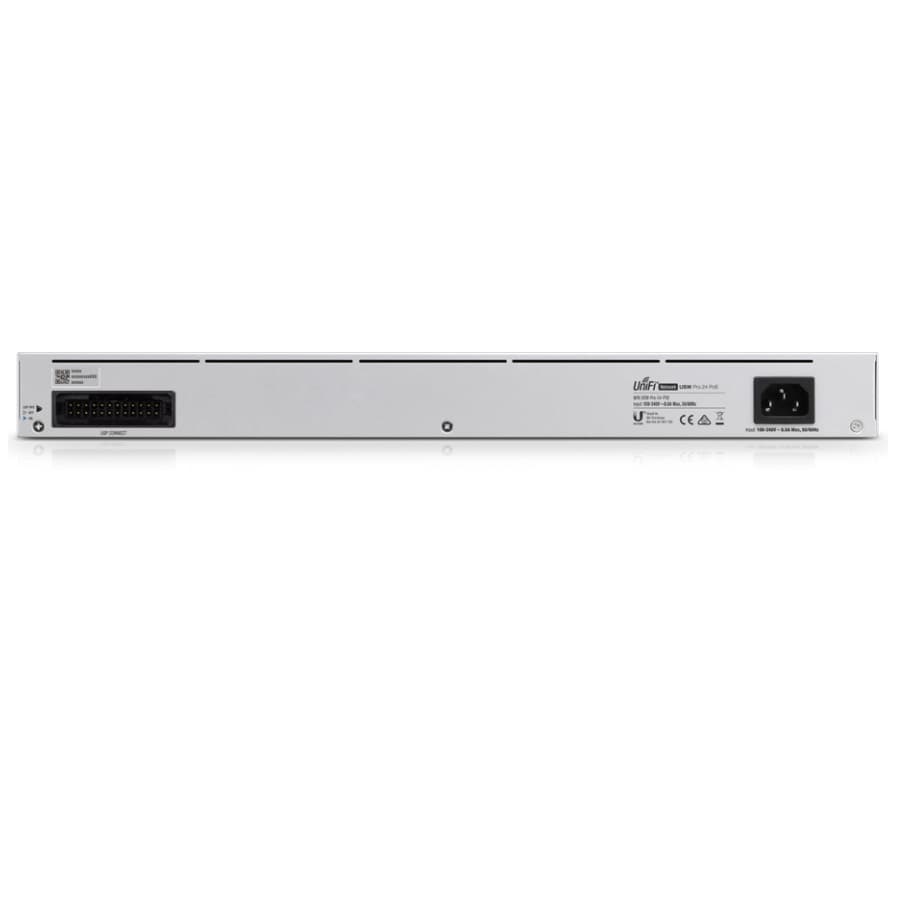

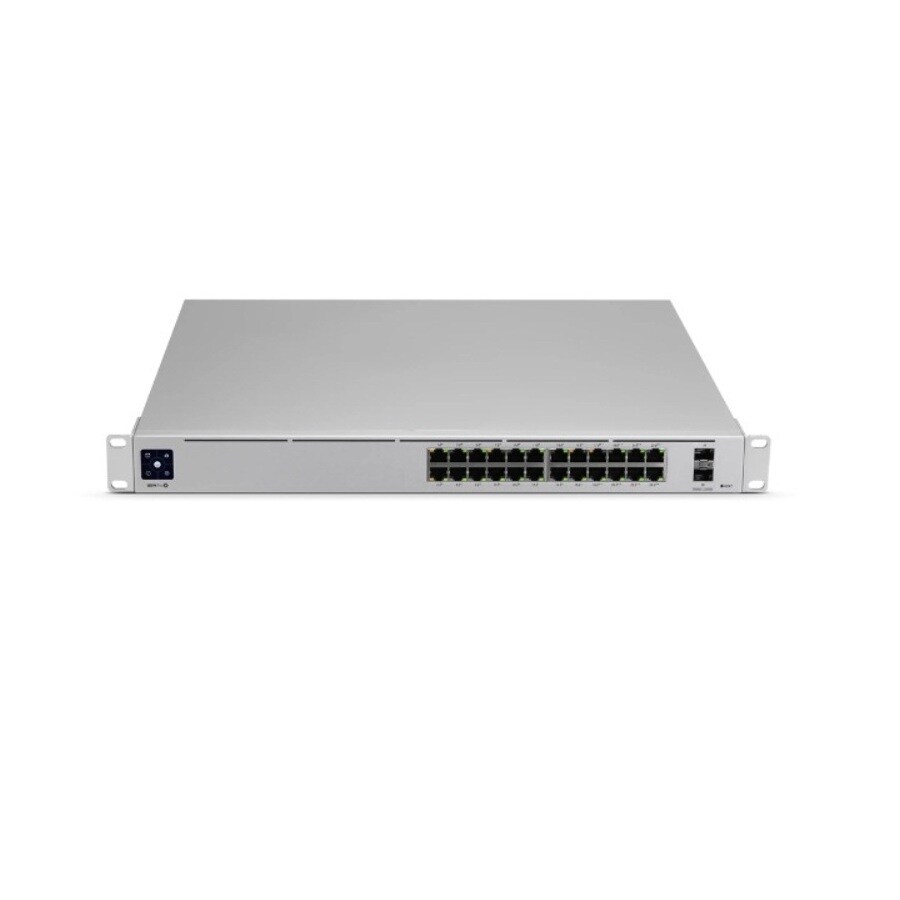

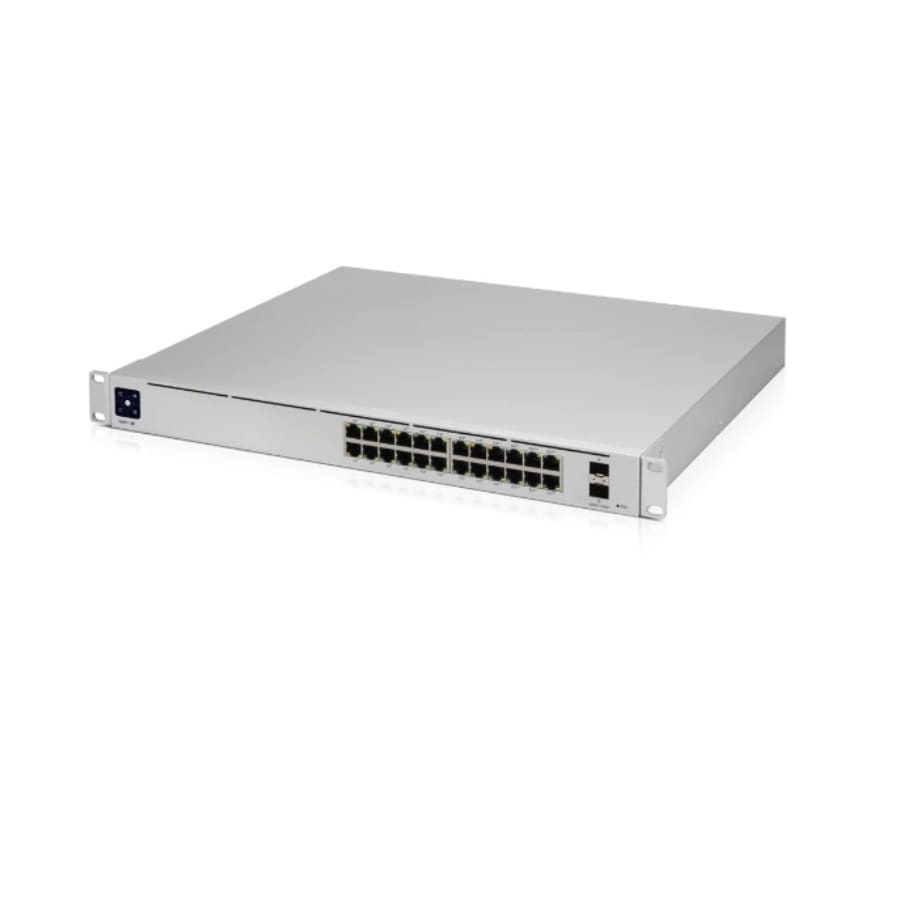

Ubiquiti UniFi Pro 24 PoE L3 Switch
- SKU: USW-Pro-24-POE
$699.00
+ $41.00 Surcharge
Product Information
A 24-port, Layer 3 switch capable of high-power PoE++ output.
Specifications
Specifications USW-Pro-24-POE
| Dimensions | 442.4 x 285.4 x 43.7 mm (17.42 x 11.24 x 1.72") |
| Weight With Brackets | 4.30 kg (9.48 lb) 4.39 kg (9.68 lb) |
| Interfaces Networking Management | (24) 10/100/1000 RJ45 Ports (2) 1/10G SFP+ Ethernet Ports Ethernet In-Band |
| Total Non-Blocking Throughput | 44 Gbps |
| Switching Capacity | 88 Gbps |
| Forwarding Rate | 65.472 Mpps |
| Power Method Universal Input USP RPS DC Input | 100-240VAC, 50/60 Hz 52VDC, 7.69A; 11.5VDC, 2.61A |
| Power Supply | AC/DC, Internal, 450W |
| Voltage Range | 100 to 240VAC |
| Max Power Consumption (Excluding PoE Output) | 50W |
| LEDs System RJ45 Data Ports SFP Data Ports | Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| Total Available PoE | 400W |
| PoE Interfaces Ports 1-16 Ports 17-24 | POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 60W PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
| Max. PoE Wattage per Port by PSE 802.3at 802.3bt | 32W 64W |
| Voltage Range 802.3af Mode 802.3at/bt Mode | 44-57V 50-57V |
Add-Ons
UICARE-USW-Pro-24-POE-DUbiquiti With UI Care, you'll extend replacement protection to five years and enjoy exclusive benefits. You must activate your UI Care protection for the intended UI Care products prior to resale, before you ship products out. Follow the instructions provided in the portal section Licenses/UI Care Vouchers.
In Stock
