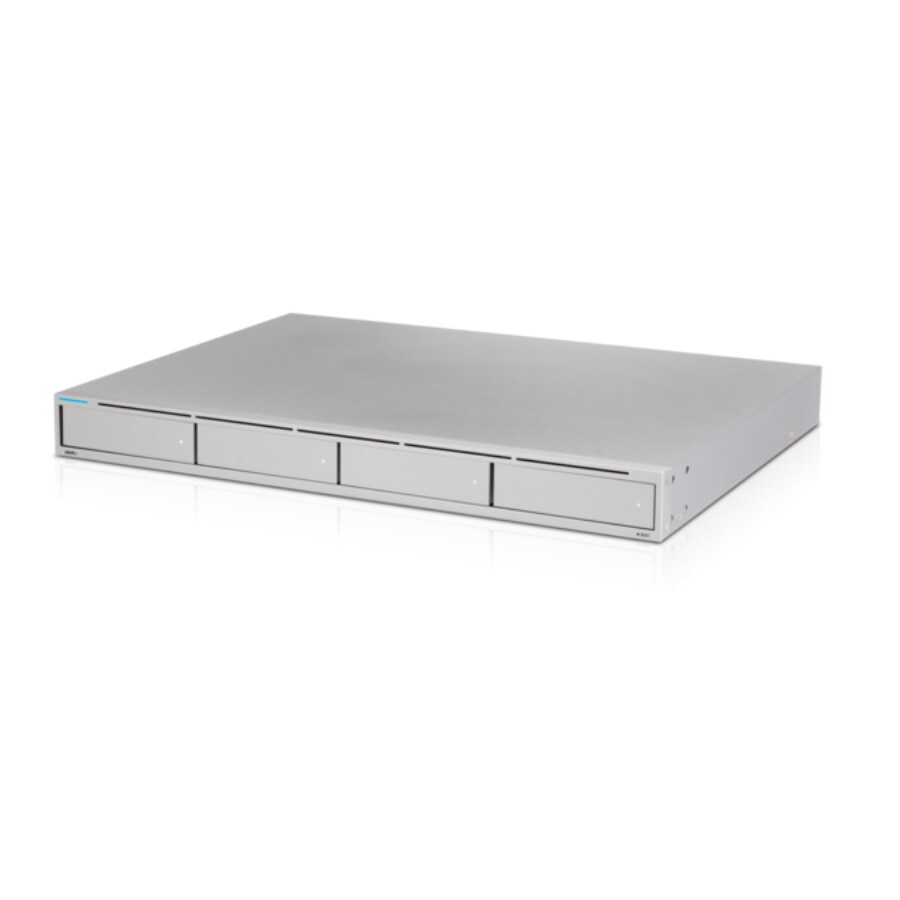

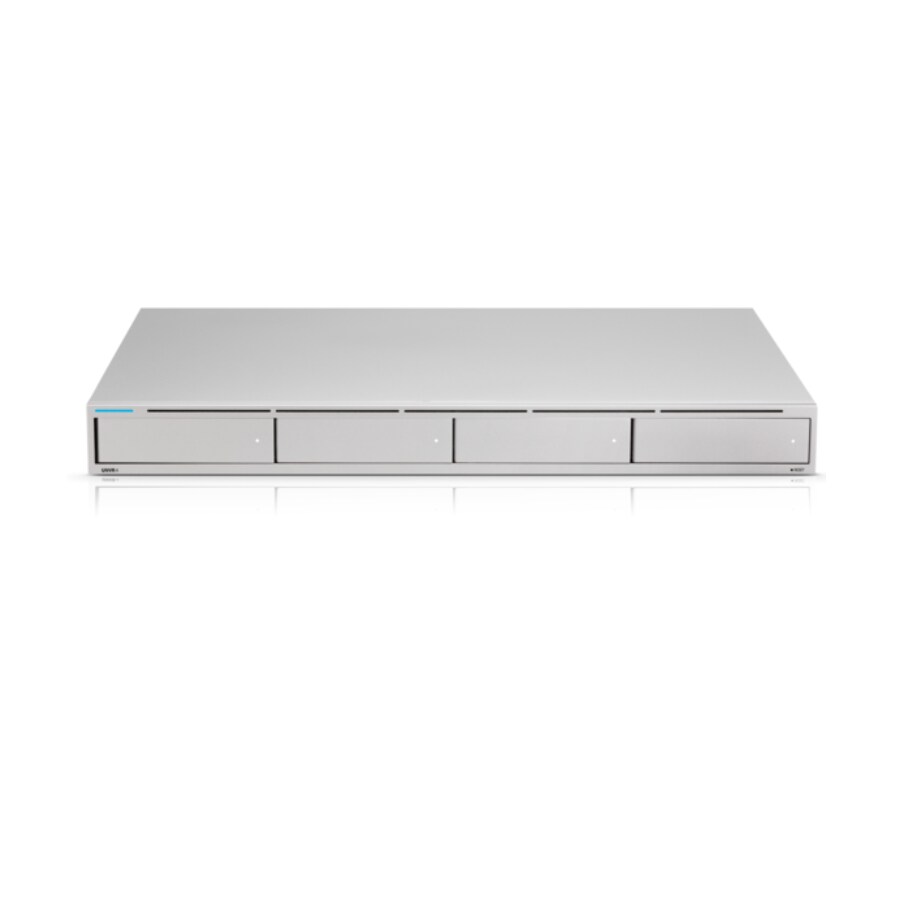

Ubiquiti UniFi Network Video Recorder
- SKU: UNVR
$299.00
Product Information
A video recorder with (4) 2.5/3.5" HDD bays that can support up to 30 days of storage for (18) 4K cameras or (60) Full HD cameras.
Specifications
Specifications UNVR
| Dimensions | 442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7") |
| Weight Without Rackmount Brackets With Rackmount Brackets | 5.11 kg (11.27 lb) 5.20 kg (11.46 lb) |
| Enclosure Characteristics | SGCC Steel |
| Processor | Quad-Core ARM Cortex-A57 at 1.7 GHz |
| System Memory | 4 GB DDR4 |
| On-Board Flash Storage | SPI NOR 32 MB, USB Flash 8 GB |
| Max. Power Consumption | 100W |
| Max. Power Budget for Drives | 75W |

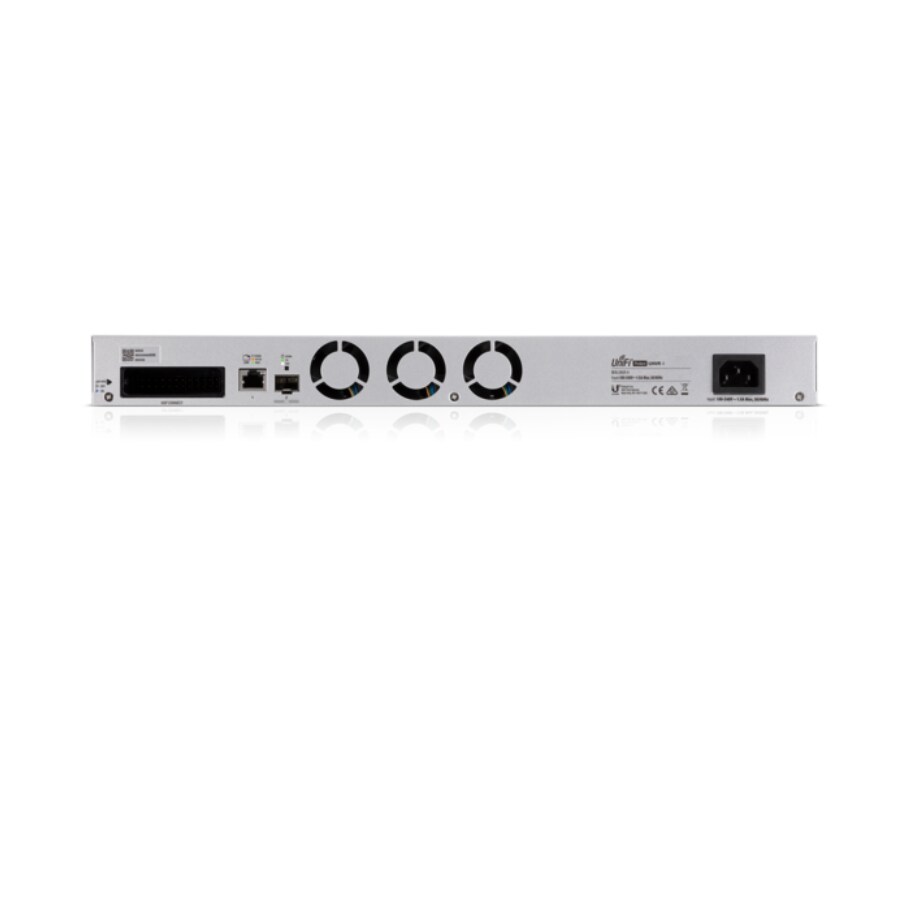

| Power Method | (1) Universal AC Input (1) RPS DC Input |
| Power Supply | 100-240VAC, 50/60 Hz, 2A |
| Networking Interfaces | (1) 10/100/1000 Mbps RJ45 Ethernet (1) 1/10 Gbps SFP+ Ethernet |
| Management Interface | Ethernet In-Band Management |
| ESD/EMP Protection | Air: ± 12kV, Contact: ± 8kV |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 5 - 95% Noncondensing |
| LEDs | |
| System | (1) Power, Blue/White Flashing White: Bootup in Progress Flashing Blue: Firmware Upgrading Steady White: Factory Defaults, Awaiting Adoption |
| Ethernet | Steady Blue: Device is Adopted |
| SFP+ White | Green: 1000 Mbps, Amber: 10/100 Mbps |
| SFP+ | White: 10 Gbps, Green: 1 Gbps |
| HDD | Amber: Disk Error, White: Disk Detected |
