Ubiquiti Networks 10 Gbps OM3 Duplex LC Cable
- SKU: UOC
$5.00 to $9.00Select options
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Ubiquiti 10 Gbps OM3 Duplex LC Cable
Ubiquiti's UniFi Fibre Patch Cable is a Multi-Mode, LC-LC, OM3 fibre patch cable designed to be used with SFP modules such as Ubiquiti's UFiber modules.
Features:

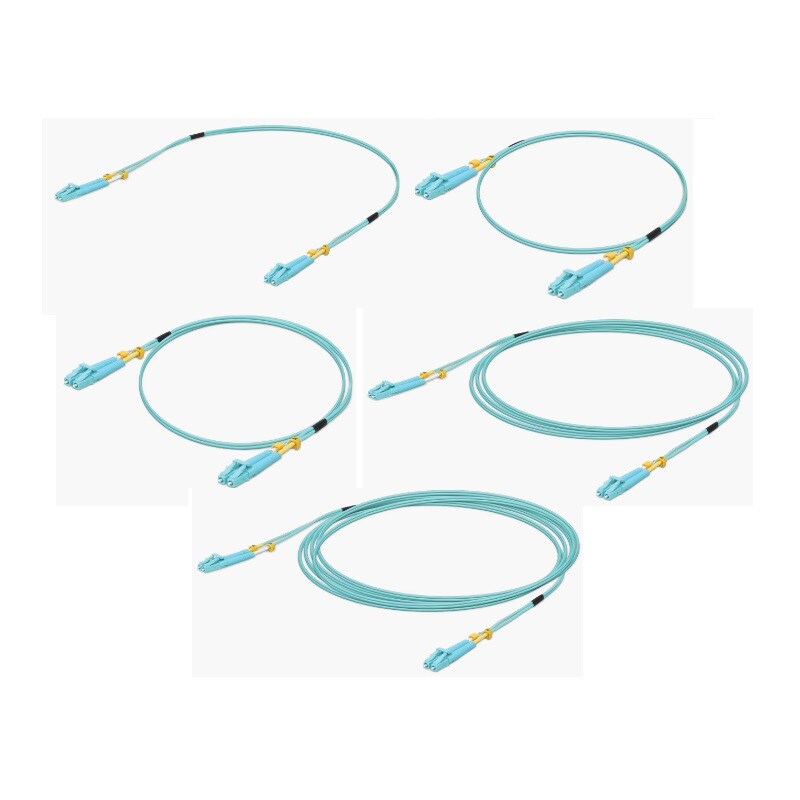

- Cable Length: 0.5 to 5 m
- 10 Gbps throughput
- Connectors: LC-LC
- Thread Type: Multi Mode
- Core Diameter [μm]: 50/125 (OM3)
Specifications
Specifications
| Connector | LC-LC |
| Fiber mode | 50/125 µm |
| Fiber type | Duplex |
| Cable jacket | PVC |
| Cable standard | OM3 |
| Insertion loss | ≤ 0.3 dB |
| Polish | UPC to UPC |
| Jacket OD | 2.0 mm |
| Wavelength | 850 / 1310 nm |
| Jacket color | Aqua |
| Repeatability | ≤ 0.1 dB |
| Durability | ≤ 0.2 dB (1,000 times mating) |
| Return loss | ≤ 50 dB |
| Ambient operating temperature | -40 to 75° C (-40 to 167° F) |
