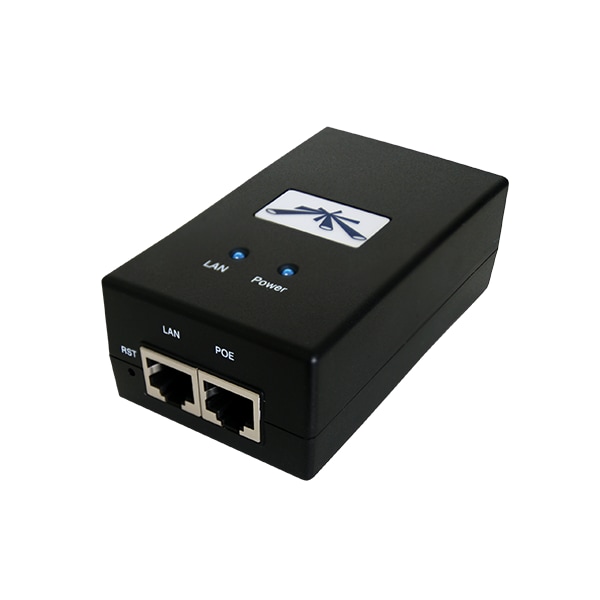

Ubiquiti 24V 24W Gigabit PoE Adapter 5-Pack

(0)No Reviews yet
  • SKU: POE-24-24W-G
$16.00
  • Manufacturer: Ubiquiti Networks
  • Data Sheet: Download

Out of Stock

 Open chat or call us for stock status

Product Information

Gigabit PoE Injector, 24VDC, 24W, 5-Pack

Specifications

Specifications POE-24-24W-G

ModelPOE-24-24W-G
Dimensions88 x 57 x 33 mm (3.47 x 2.24 x 1.30 in)
Weight158.5 g (5.59 oz)
Output Voltage24VDC @ 1.0A
LAN Activity IndicatorNo
Gigabit LAN PortYes
Remote Reset CapabilityYes
Reset ButtonYes
Input Voltage90-260VAC @ 47-63 Hz
Input Current0.6A @ 120VAC, 0.4A @ 240VAC
Inrush Current<60A Peak @120VAC, <120A Peak @ 230VAC
Efficiency80+%
Output Ripple1% Max.
Switching Frequency65 kHz
Line Regulation± 1%
Load Regulation± 3%
4-Pair PoweringPins 1, 2, 4, 5 (+) and Pins 7, 8, 3, 6 (-)
Operating Temperature 0 to 40° C (32 to 104° F)
Storage Temperature-30 to 70°C (-22 to 158° F)
Operating Humidity 35 to 95% Non-Condensing
AC ConnectorIEC-320 C6
Data IN / POERJ45 Shielded Socket
Surge Protection Difference and Common Mode
Clamping Protection11V Data, 60V Power
Max. Surge Discharge1500A (8/20µS) Power
Peak Pulse Current36A (10/1000µS) Data
Shunt Capacitance<5 pf data
Response Time<1 nS
ComplianceIEC 60950-1:2005+A1
UL60950-1
EN55022:2010, EN55024:2010
FCC Class B
AC Cable with Earth GroundUSA, EU, AR, BR, UL, CCC, Mexico
