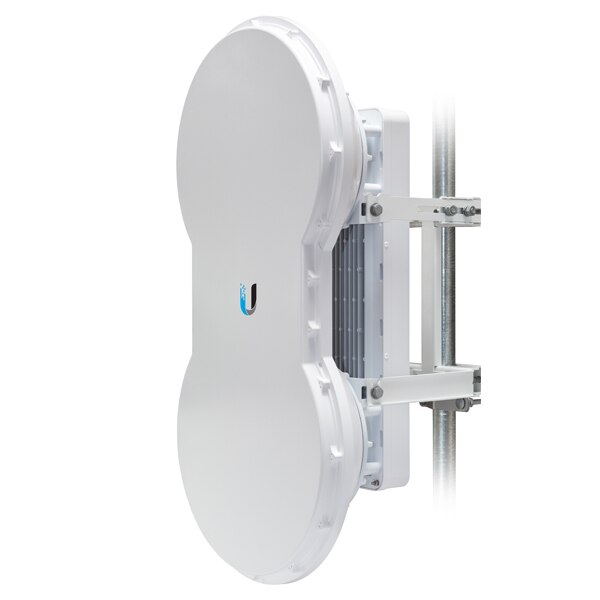

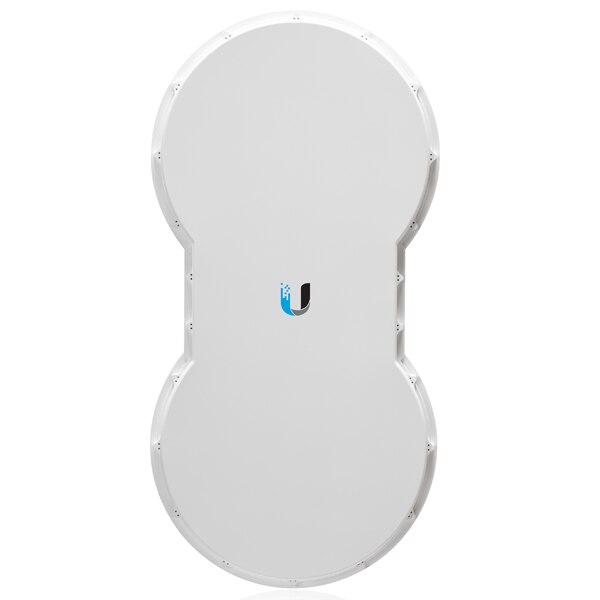

Ubiquiti UISP airFiber 5 Mid-Band Radio (US)
- SKU: AF-5-US
$999.00
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Compact, wireless point-to-point mid-band bridge with a 1.2+ Gbps throughput rate.
Specifications
Specifications AF5
| Dimensions | 938.4 x 468.4 x 281.4 mm (36.94 x 18.44 x 11.08 in) |
| Weight | 16 kg (35.27 lb) Mount Included |
| Max. Power Consumption | 50V, 1.2A PoE GigE Adapter (Included) |
| Power Supply | 50V, 1.2A PoE GigE Adapter (Included) |
| Power Method | Passive Power over Ethernet (42-58VDC) |
| Certifications | CE, FCC, IC |
| Mounting | Pole Mount Kit (Included) |
| Wind Loading | 863 N @ 200 km/hr (194 lbf @ 125 mph) |
| Wind Survivability | 200 km/hr (125 mph) |
| Operating Temperature | -40 to 55° C (-40 to 131°F) |
| LEDs | (12) Status LEDs: Data Port Link/Activity Data Port Speed Management Port Link/Activity Management Port Speed GPS Synchronization Master/Slave Link Status Modulation Mode 0.25x to 4x, 6x, 8x, Overload Remote and Local Displays (Calibrated Signal Strength) |
| AF5 FCC 15.247, 15.407, IC RSS 210 ETSI EN 301 893, EN 302 502 Other Regions | 5470 - 5600 MHz, 5650 - 5850 MHz 5470 - 5875 MHz 5470 - 5950 MHz |
| AF5U FCC 15.247, IC RSS 21 ETSI EN 302 502 Other Regions | 5725 - 5850 MHz 5725 - 5875 MHz 5725 - 6200 MHz |
| Interface | |
| Management Port | (1) 10/100 Ethernet Port |
| Auxiliary Port | (1) RJ-12, Alignment Tone Port |
| System | |
| Maximum Throughput | 1.0+ Gbps |
| Maximum Range | 100+ km (Dependent on Regulatory Region) |
| Packets per Second | 1+ Million |
| Encryption | 128-Bit AES |
| Forward Error Correction | 164/205 |
| Cyclic Prefix | 1/16 Fixed |
| Uplink/Downlink Ratio | 50% Fixed |
| Radio Frame Synchronization | GPS |
| Dynamic Frequency Selection AF5 AF5U | CE, FCC/IC CE, (FCC/IC Not Applicable) |
| airFiber AF5 Radio Frequency | |
| GPS | GPS Clock Synchronization |
| Transceiver | |
| EIRP | ~50 dBm (Dependent on Regulatory Region and Frequency Band) |
| Channel Bandwidth | 10/20/40/50 MHz |
| Frequency Accuracy | ~50 dBm (Dependent on Regulatory Region and Frequency Band) Frequency Accuracy ±2.5 ppm without GPS Synchronization ±0.2 ppm with GPS Synchronization |
