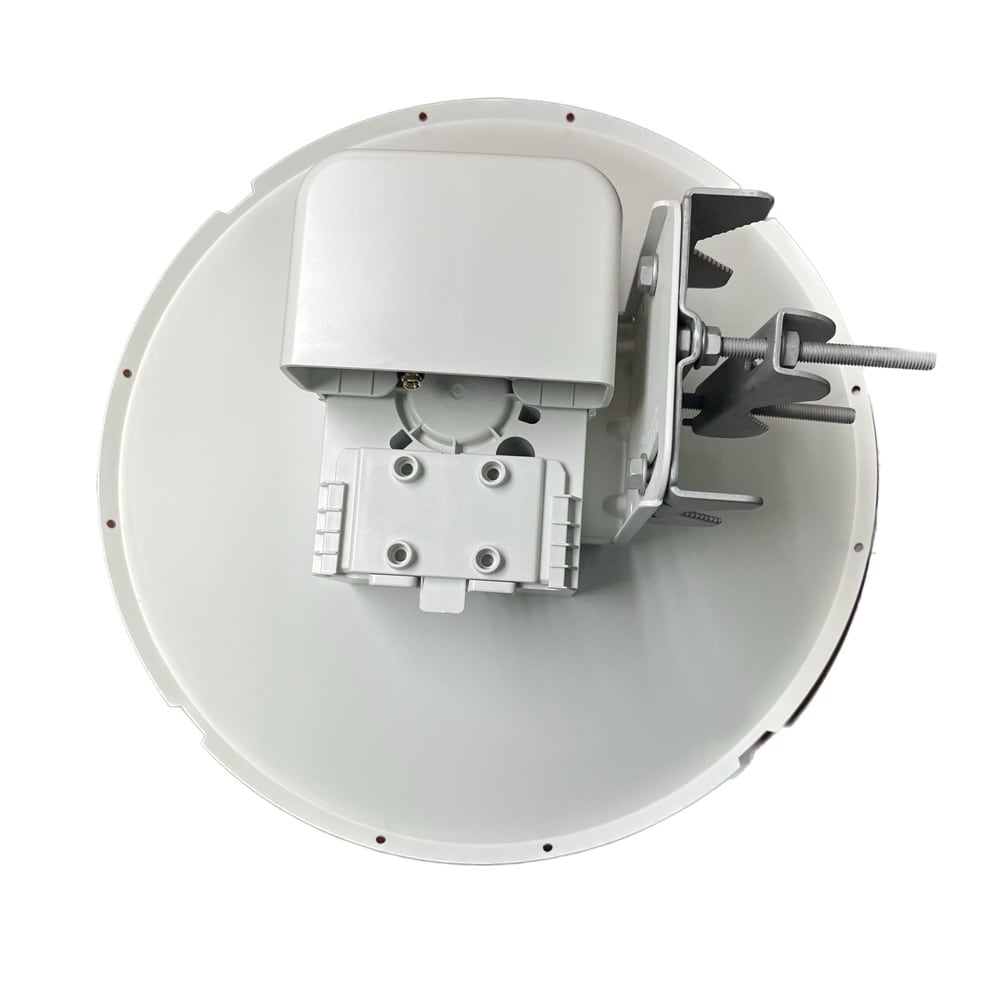

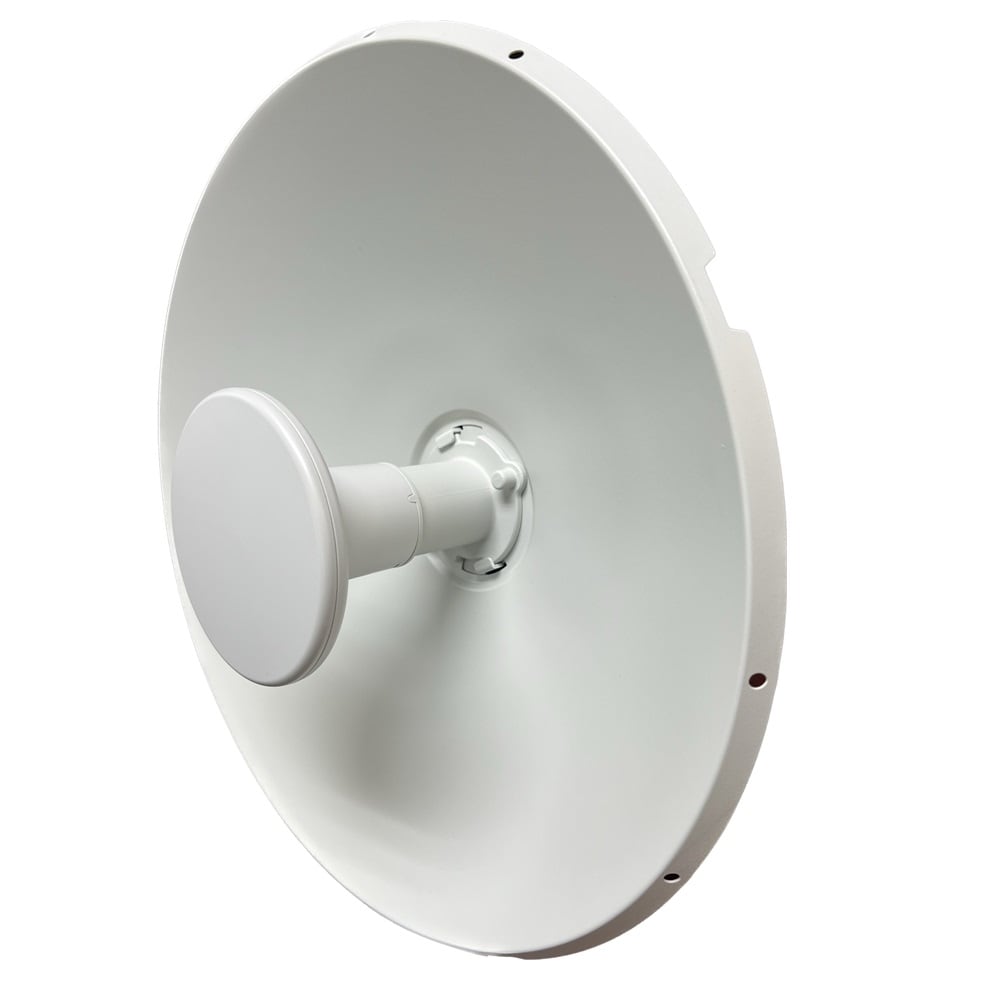

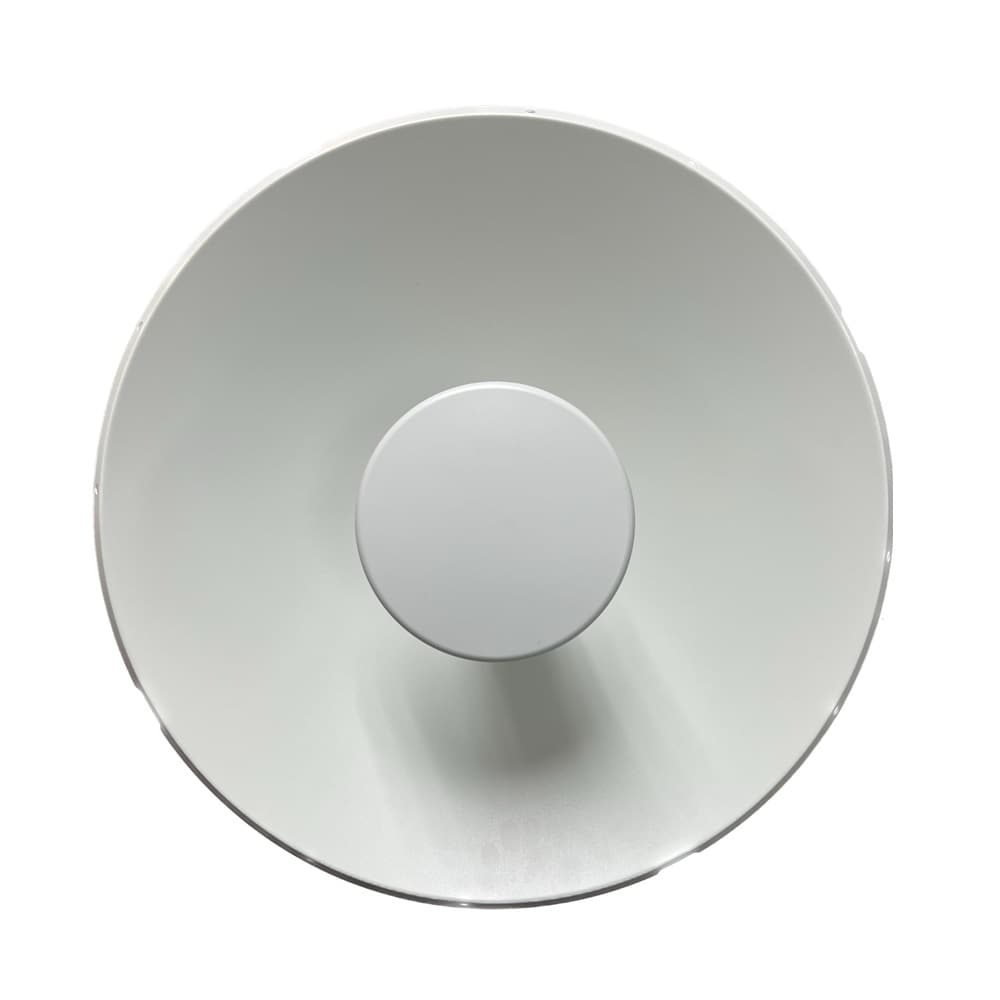

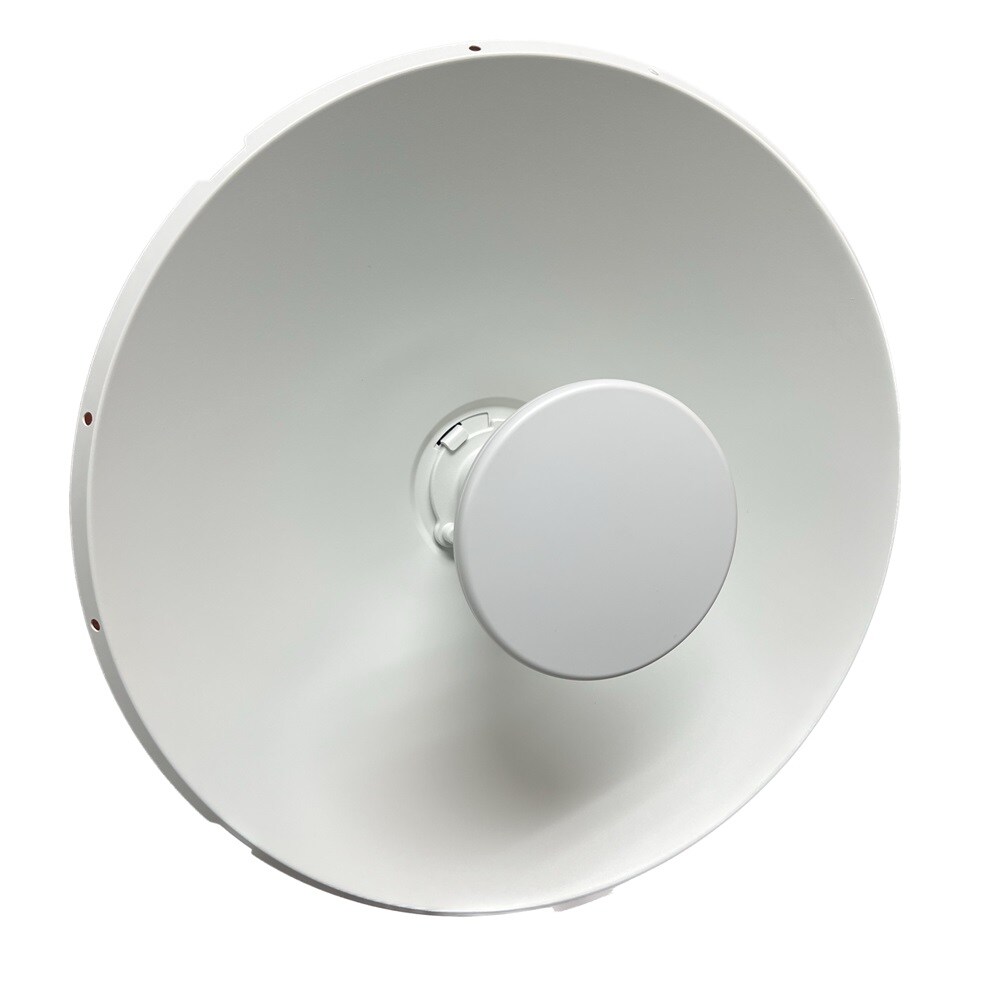

Cambium Networks ePMP 6GHz 2x2 dish antenna
- SKU: C060900D021A-T
$179.00
+ $8.06 Tariff
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
ePMP 6 GHz 2x2 dish antenna
Specifications
Specifications (2 packs Sold Individually SKU)
| Weight | 24.25 lbs |
| Dimension | 23.22" x 20.66" x 11.02" |
| HTS Code | 8517.62.0090 |
| Country of Origin | China |
| Frequency Range | 5.150 to 7.125 GHz |
| Gain | 25 dBi |
| Gain with range extender | 28 dBi |
| 3 dB Beamwidth Azimuth | 7º |
| Wind Survival | 200 km/h 180 km/h with extender |
| Port-to-Port Isolation | > 35 dB |
| Front-to-Back Ratio | > 35 dB |
| Maximum Input Power | 5W |
| Imput Impedance | 50 ohms |
| Mounting Connectors | 2 x RP SMA |

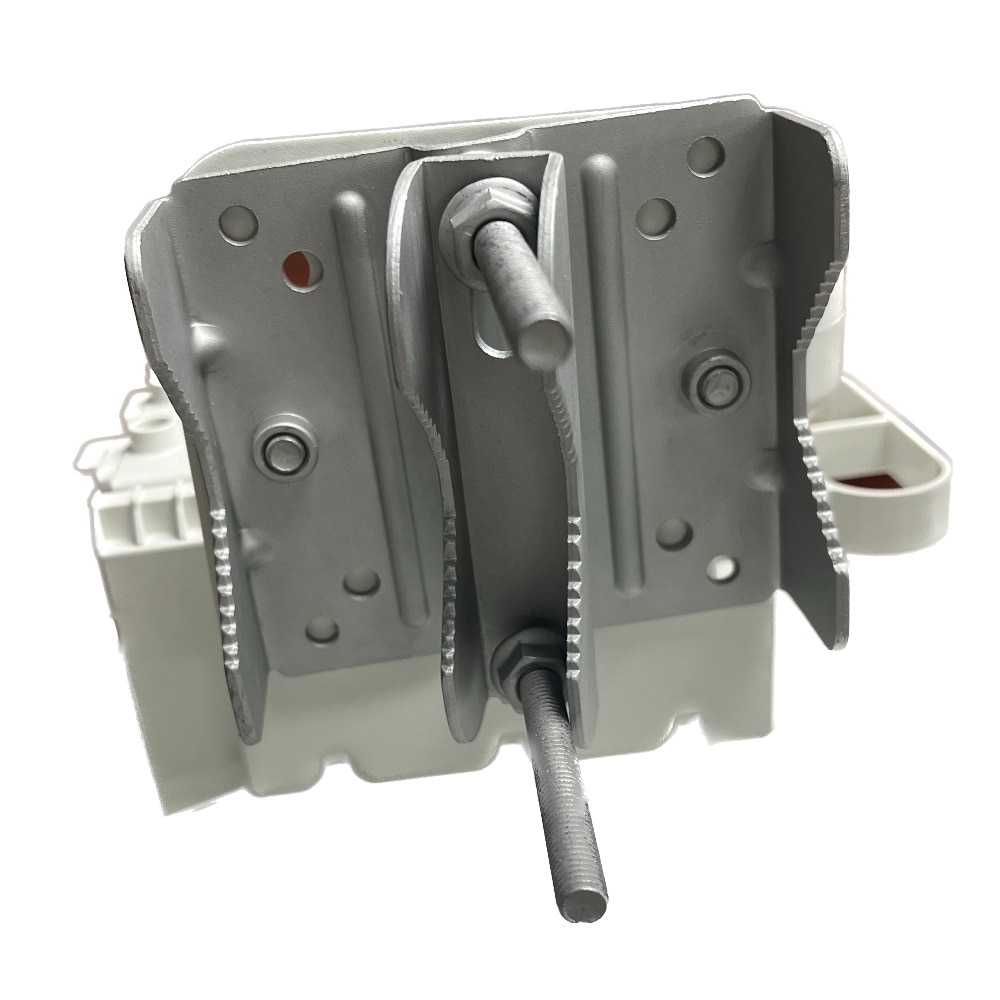

| Mounting Hardware | Included for mounting to mast diameters 1.25” to 3.0” (30-75 mm) Hardware included to connect Force 4600C to back of antenna body |
| Environmental | IP67 |
