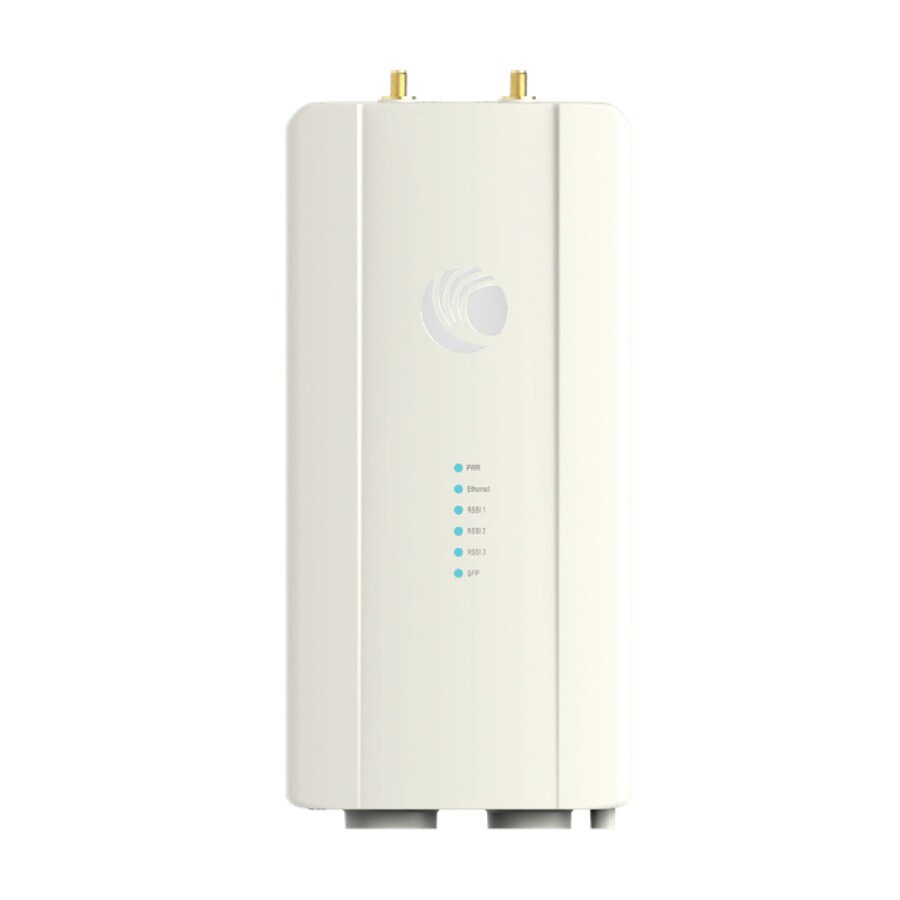

Cambium Networks ePMP 6GHz Force 4600C SM Radio (FCC/IC) (US Cord)
- SKU: C068940C122C
$569.00
- Manufacturer: Cambium Networks
- Data Sheet: Download
Product Information
Cambium Networks ePMP Force 4600C Subscriber Modules (SM) meet this demand, offering high performance and low latency across both point-to-multipoint (PMP) and point-to-point (PTP) deployments.
Product Features:
- High capacity and latencies less than 5 ms when using ePTP technology.
- Interoperability with ePMP 4600 Series Access Points (AP). The Force 4600C SM is available in a connectorized form factor with 2 x RP-SMA connectors.
- Provides 2+ Gbps capacity in PTP applications, meeting the requirements of enterprise, industrial, government, and service provider users.
- Managed by Cambium Networks cnMaestro Network Management System for easy provisioning, monitoring, and upgrades.
- Network planning with LINKPlanner and cnHeat.
- Cambium Networks’ 3-year hardware warranty and support.
- Includes a Power over Ethernet (PoE) injector and pole mount hardware.
Specifications
Specifications C068940C122C
| Weight | 3.5 lbs |
| Dimension | 14" x 7" x 4" |
| HTS Code | 8517.62.0090 |
| COO | Vietnam |
| Available Models | Force 4600C |
| Channel Width MHz | 20 | 40 | 80 | 160 MHz |
| Proprietary Physical Layer | ePMP air interface with 2x2 MIMO/OFDMA |
| Channel Spacing | Configurable in 5 MHz increments |
| Frequency Range | Force 4600C: 5725–7125 MHz |
| MAC Layer (Media Access Control) | Cambium Proprietary |
| Ethernet Interface | 100/1000 BaseT, rate auto negotiated, 802.3at compliant; 4600C has SFP+ port |
| Protocols Used | IPv4/IPV6 , UDP, TCP, IP, ICMP, SNMPv2c, HTTPs, STP, SSH, IGMP Snooping |
| Network Management | HTTP/HTTPS, SNMPv1/2, SNMPv3, SSH |
| VLAN | 802.1Q with 802.1p priority |
| Performance | |
| ARQ | Yes |
| Nominal Receive Sensitivity (w/FEC) @20 MHz Channel | MCS 0 = -92 dBm to MCS 13 (4096 QAM-5/6) = -53 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @40 MHz Channel | MCS 0 = -89 dBm to MCS 13 (4096 QAM-5/6) = -50 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @80 MHz Channel | MCS 0 = -86 dBm to MCS 13 (4096 QAM-5/6) = -47 dBm (per chain) |
| Nominal Receive Sensitivity (w/FEC) @160 MHz Channel | MCS 0 = -83 dBm to MCS 13 (4096 QAM-5/6) = -44 dBm (per chain) |
| Modulation Levels (Adaptive) | MCS 0 (BPSK) to MCS 13 (4096 QAM-5/6) |
| Geolocation | Integrated GPS with antenna puck |
| Transmit Power Range | +3 to +30 dBm (combined, to regional EIRP limit) (1 dB interval) |
| Quality of Service (QoS) | Three level priority (Voice, High, Low) with packet classification by DSCP, COS, VLAN ID, IP & MAC Address, Broadcast, Multicast and Station Priority, MIR/CIR* support |
| Physical | |
| Surge Supression* | 1 Joule Integrated |
| Environmental | IP67 |
| Temperature | -30°C to 55°C (-22°F to 131°F) |
| Pole Diameter Range | Center: 3.1 to 7.6 cm (1.25 to 3.0 inches) |
| Power Consumption | 28W |
| Input Voltage | 44V–59V |
| Antenna | External Dish, PN# 2 x 50 ohm, RP SMA (Reverse Polarity) |
| GPS Antenna Connection | 1 x 50 ohm, SMA; external GPS; GPS Puck Antenna: Part # N000900L030A Included |
| FCCID | Z8H89FT0069 |
| FCC Regulatory Part # | C068940P151A |
| ETSI Regulatory Part # | C060940P051A |
| Industry Canada Cert | 109W-0069 |
