Lite Linx Drop Flat Cable 12F F
- SKU: DCF-12-NN-F
$0.25 to $826.18Select options
- Manufacturer: LiteLinx
- Data Sheet: Download
Product Information

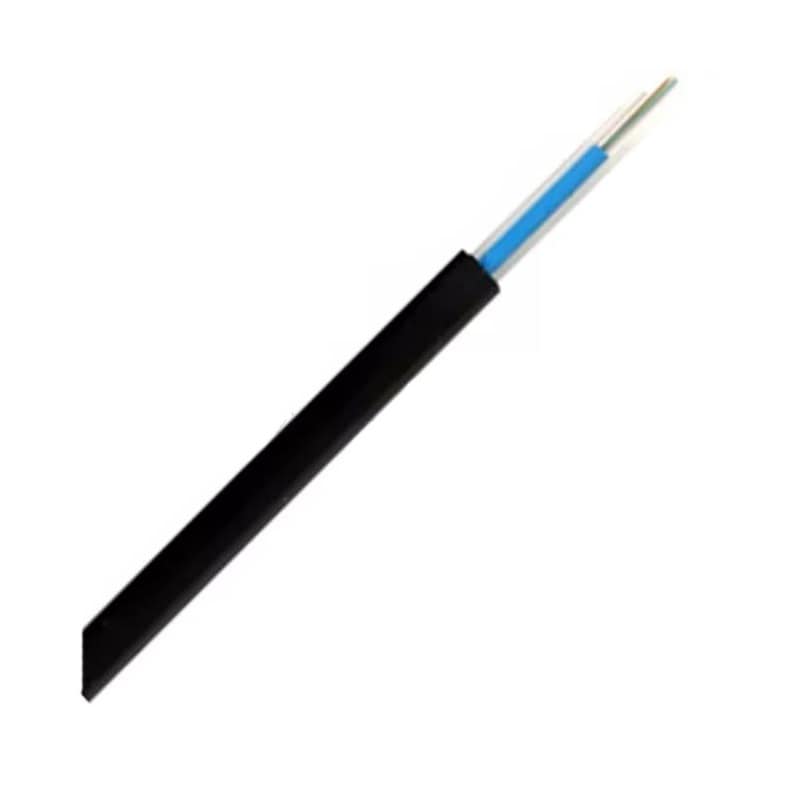

Lite Linx Drop Flat Cable 12F F
Specifications
Specifications DCF-12-NN-F
| Central Tube | |
| Material | BPT |
| Diameter (mm) | 3 |
| Water Blocking | Tube Filling Compound |
| Reinforcement Elements | |
| Material | FRP |
| Size (mm) | 1.6 |
| Outer Jacket | |
| Material | HDPE |
| Thickness | 0.8mm |
| Overall Diameter | 4.5*8.1 (mm)(± 0.3) |
| Weight | 37 Kg/Km |
| Temperature Range | |
| Operation | -40°C~+60°C |
| Storage | -50°C~+70°C |
| Installation | -20°C~+60°C |
| Optical Characteristics: | @1310nm ≤ 0.36 dB/Km @1550nm ≤ 0.22 dB/Km |
