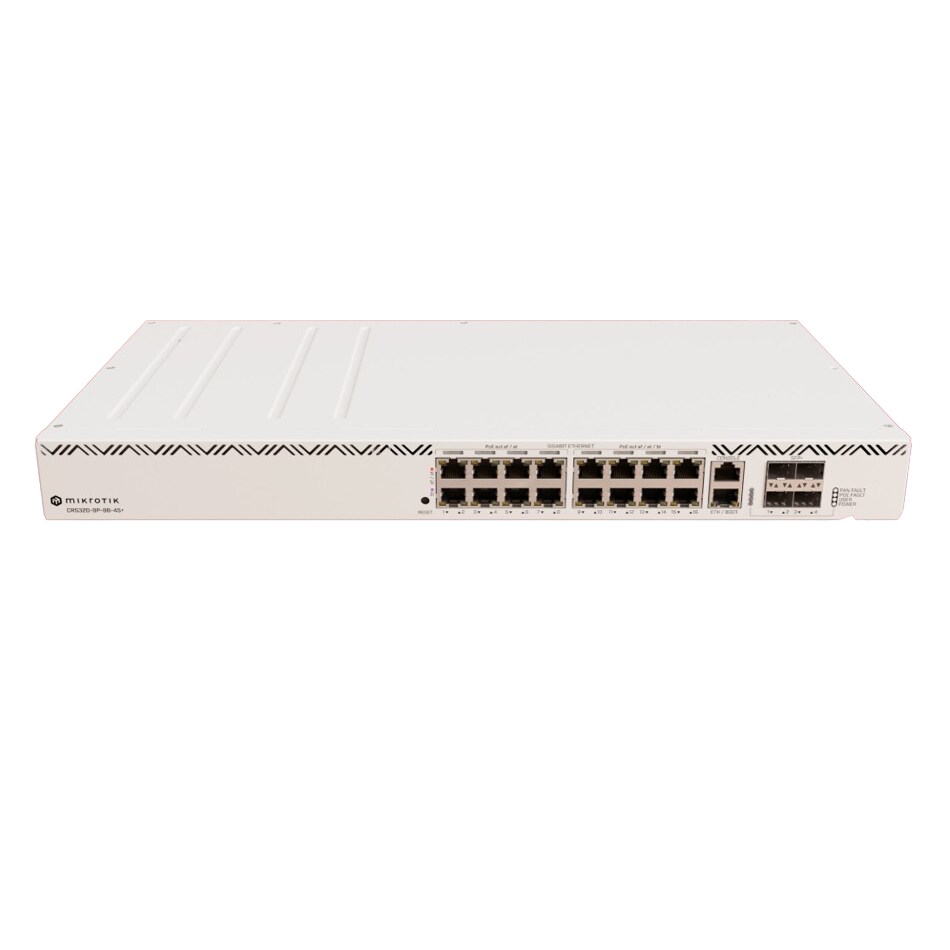

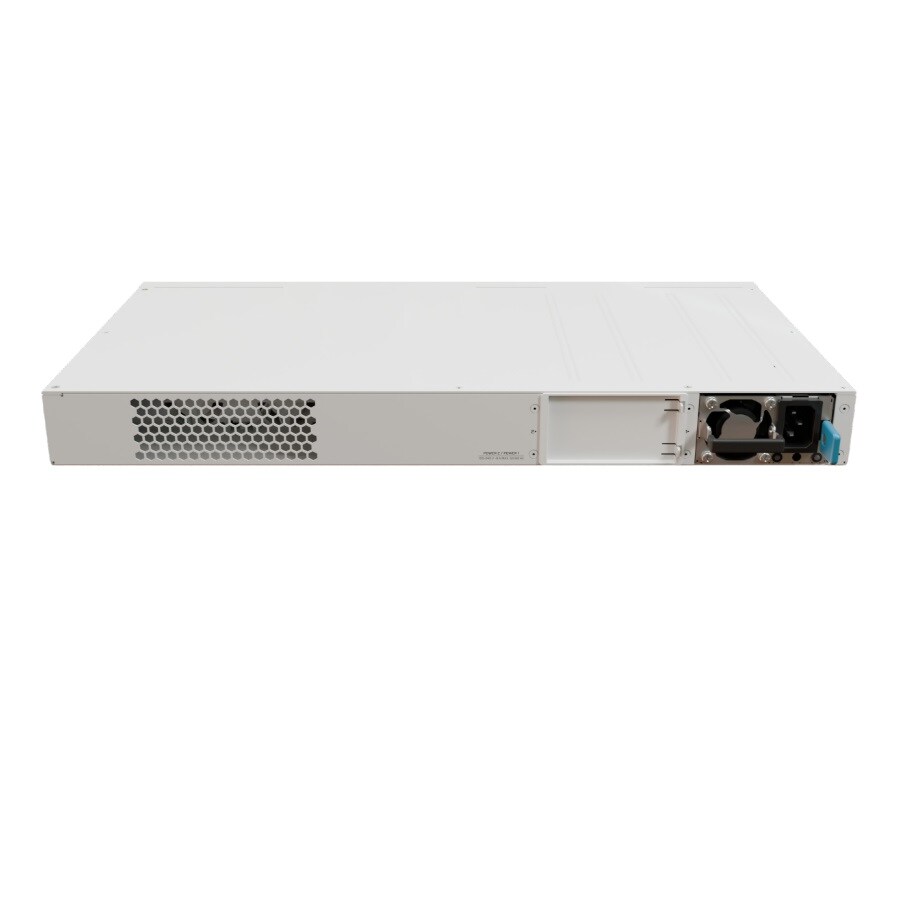

MikroTik 8x 802.3af/at PoE-out 8x 802.3bt POE++ Port Switch
- SKU: CRS320-8P-8B-4S+RM
$474.33 $489.00
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
The CRS320-8P-8B-4S+RM features an ARM 32-bit architecture, 98DX226S CPU with 2 cores running at 800 MHz, and a 98DX226S switch chip model. It operates on RouterOS v7 with a Level 5 license, equipped with 256 MB of RAM and 32 MB of FLASH storage. The device has an MTBF of approximately 200,000 hours at 25°C and can operate in ambient temperatures ranging from -10°C to 50°C.
Specifications
Specifications CRS320-8P-8B-4S+RM
| CPU | Dual-Core 800 MHz |
| CPU architecture | ARM 32bit |
| Size of RAM | 256 MB |
| RAM type | DDR3 |
| Storage | 32 MB, Flash |
| Number of 1G Ethernet ports | 17 |
| Number of 10G SFP+ ports | 4 |
| Switch chip model | 98DX226S |
| Operating system | RouterOS v7 only, License level 5 |
| Dimensions | 444 x 235 x 44 mm (17.48 x 9.25 x 1.73 inch) |
| Operating temperature | -10°C to +50°C |
| Powering | |
| Number of AC inputs | 1 |
| Nominal current | 10.35 A |
| Max current | 11 A |
| AC input range | 100-240 V |
| Frequency | 50-60 Hz |
| PoE-out | 802.3af/at/bt |
| Smart PoE | Controller |
| PoE-out ports | Ether1-Ether8 (af/at), Ether9-Ether16 (bt) |
| Max out per port output (input > 30 V) | 560 (af/at) / 1667 (bt) mA |
| Max total out | 17.82 A |
| Total output power | 963 W |
| Total output current | 17.82 A |
| Max power consumption (without attachments) | 36 W |
| Max power consumption | 1150 W |
