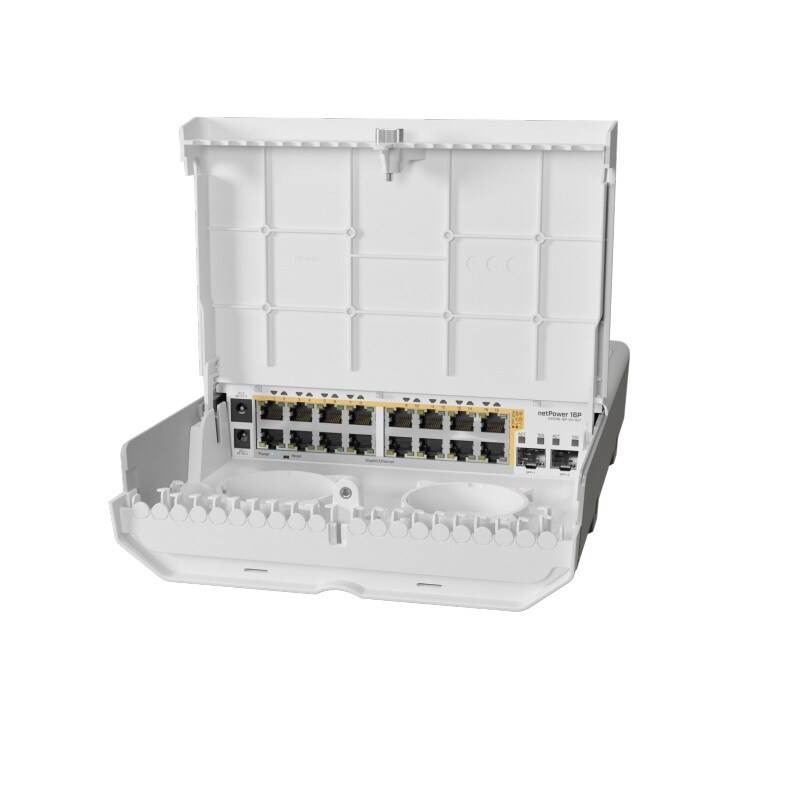

MikroTik netPower 16P
- SKU: CRS318-16P-2S+OUT
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
Powering many access points or IP cameras and a few uplinks on a tower has always been challenging. netPower 16P has 16 Gigabit Ethernet ports with PoE-out and two SFP+ ports for 10G fiber uplinks.

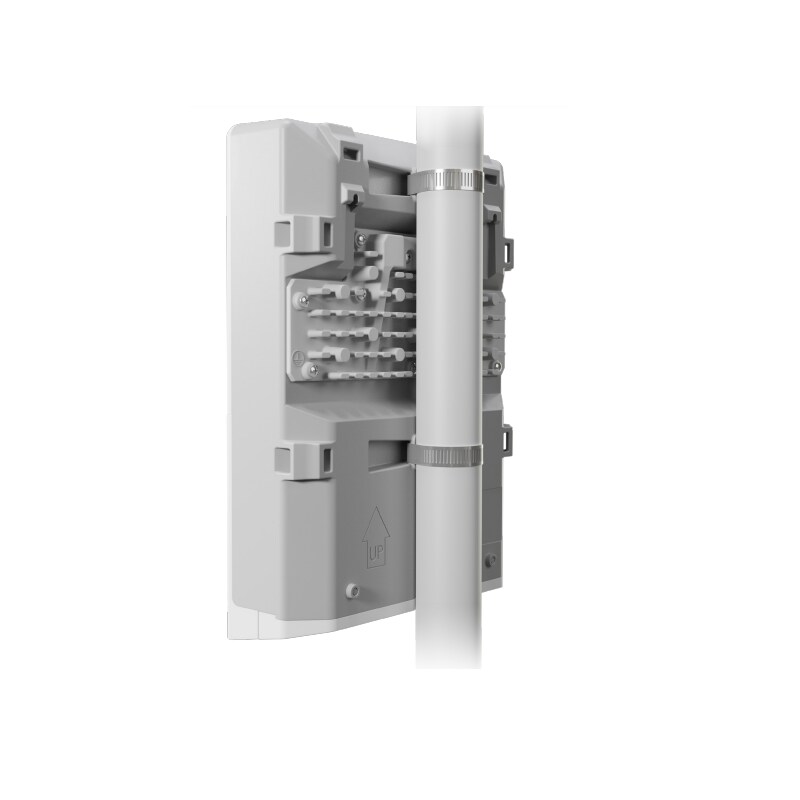

Its sturdy and compact outdoor enclosure allows the switch to be mounted in all environments – from damp attics and shafts to towers, masts, and poles with hose clamps.
netPower 16P has a non-blocking throughput of 36 Gbps, a switching capacity of 72 Gbps, and a forwarding rate of 53.6 Mpps.
The device itself does not have an onboard voltage converter. You need a 24V PSU to have 24V PoE out and/or a 48V PSU to have 48V PoE out (IEEE 802.3 at/af).
* Power supply is NOT included with the product.
You can use your preferred power option, like a battery pack. Compatible also with MikroTik power supplies 24HPOW, 48POW, and 48V2A96W.
Product Includes
- MikroTik netPower 16P
- 1x Hose Clamp
- 2x Hose Clamps
- K-66 Fastening Set
- 2x DC to Terminal Block Adapters
Specifications
Specifications CRS318-16P-2SOUT
| Product code | CRS318-16P-2S+OUT |
| CPU | 98DX226S, 800 MHz |
| CPU temperature monitor | Yes |
| Size of RAM | 256 MB |
| Storage | 16 MB flash |
| Switch chip model | 98DX226S |
| Number of 1G Ethernet ports | 16 |
| Number of 10G SFP+ ports | 2 |
| Operating system | RouterOS (License level 5) / SwOS (dual boot) |
| Dimensions | 303 x 212 x 78 mm |
| Operating temperature | -40°C to +70°C |
| Powering | |
| PoE-out | 802.3af/at |
| PoE-out ports | Ether1 - Ether16 |
| Max out per port output (input < 30 V) | 1.1 A |
| Max out per port output (input > 30 V) | 0.6 A |
| Max total out (A) | The total output power limit will also depend on your power supply max current limit. You should not exceed your power supply current limit or the board may reboot |
| Number of DC jacks | 2 |
| Supported input voltage | 18 - 57 V |
| Max power consumption | 316 W |
| Max power consumption without attachments | 16 W |
| Certification | IP55 |
