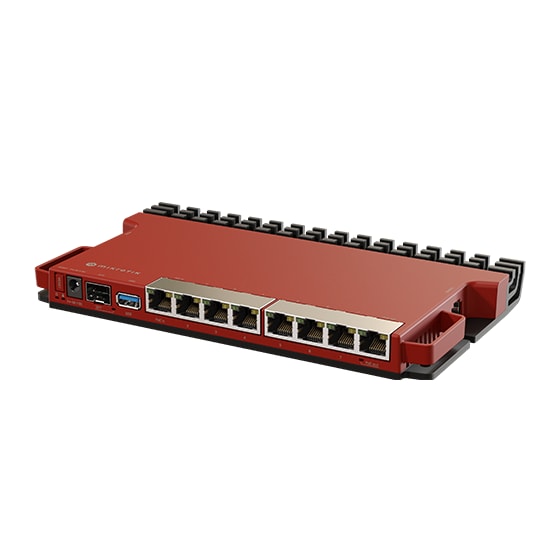

MikroTik L009 2.5G SFP Rackmount Router
- SKU: L009UiGS-RM
Product Information
The L009 Series features a powerful dual-core ARM CPU. It offers significant improvement when it comes to routing and filtering, complex firewall rules, IPsec hardware encryption, and various advanced RouterOS features. The combination of a modern ARM CPU and a full-sized USB port is perfect for running custom container projects.
All the ports are now Gigabit Ethernet ports. The first port is PoE-in, and you can use it instead of the DC jack to power the unit. There is also PoE-Out on the last port for powering other devices. Another helpful addition is an SFP cage that supports both Gigabit and 2.5 Gigabit connectivity.
The speedy Marvell Peridot Switchchip offers an impressive 2.5 Gigabit full duplex connection to the CPU to all ports except Ether1. The first port has its own Gigabit full duplex line to the CPU. The 2.4 GHz dual-chain wireless connectivity is also much stronger now. The Generation 6, or the ax standard wireless, offers up to 90% higher speed in the 2.4 GHz spectrum!

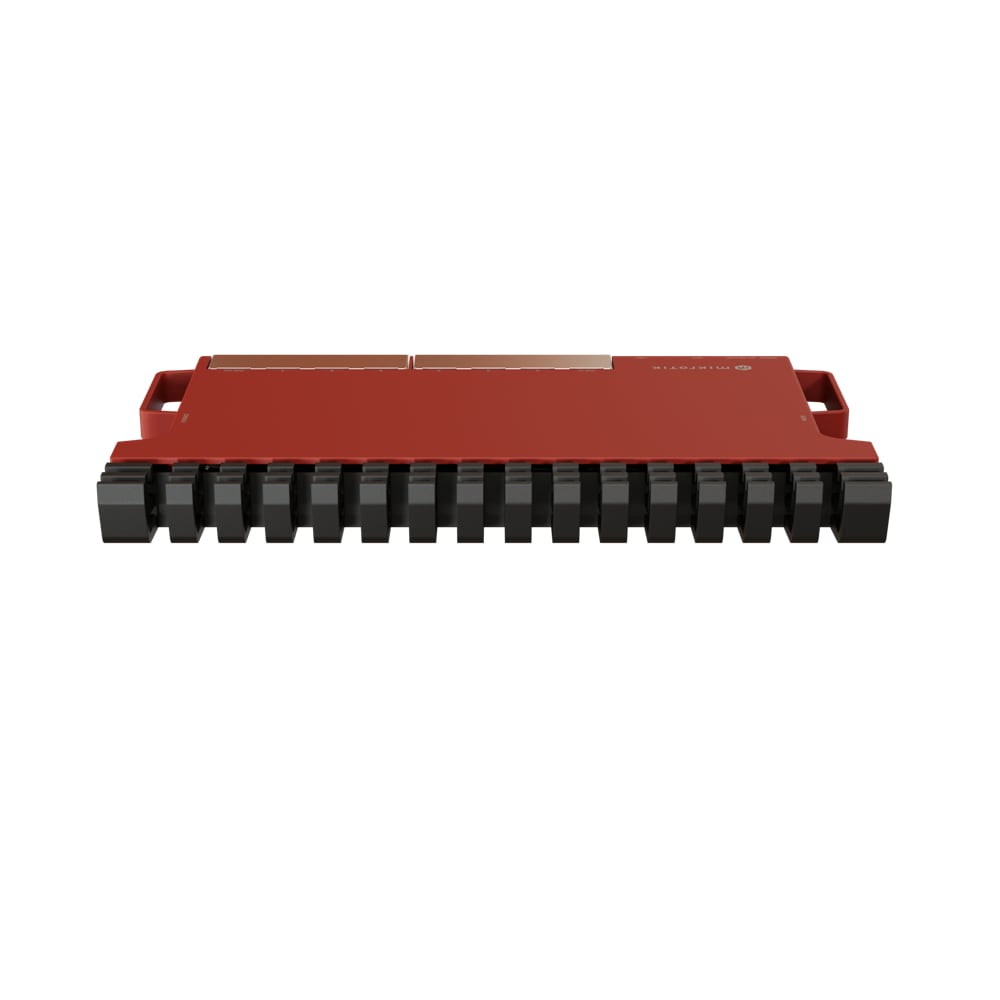

The case acts as a massive heat-sink, protecting your setups from overheating. With a simple set of accessories, you can fit up to four of these routers in a single 1U rackmount space.
Product Features
- Innovative enclosure that acts as a massive heat-sink
- Modern dual-core 800MHz ARM CPU
- SFP Cage with 2.5Gbps support

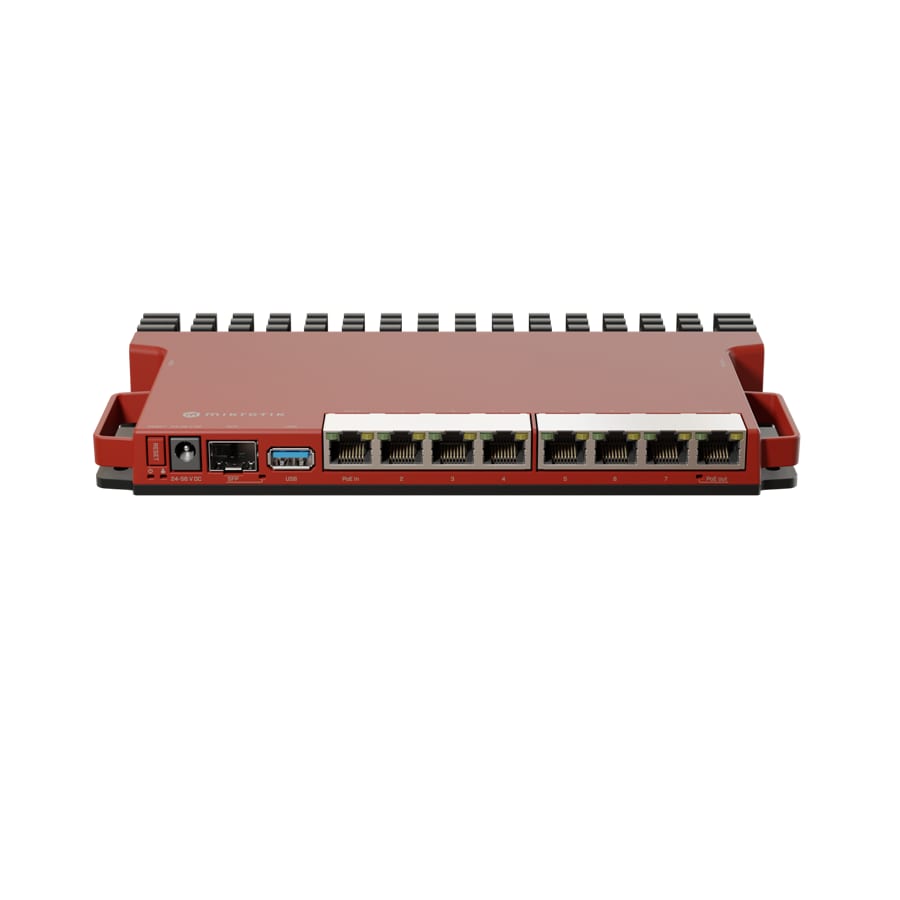

- 8x Gigabit Ethernet ports
- USB 3.0
- 512MB RAM
- Container support
- PoE-in & PoE-out
- Console Port
Product Includes
- 24V 1.5A power adapter (US Plug)
- Fastening set
- Rackmount kit K-79
Specifications
Specifications L009UiGS-RM
CPU | Dual-Core IPQ-5018 800 MHz |
CPU architecture | ARM 64bit |
Size of RAM | 512 MB |
RAM type | DDR3L |
Storage | 128 MB, NAND |
Number of 1G Ethernet ports | 8 |
Number of 1G SFP ports | 1 (2.5G supported) |
USB port | 1 (3.0 type A) |
Serial console port | RJ45 |
Switch chip model | 88E6190 |
Dimensions | 220 x 125 x 22 mm 8.66 x 4.92 x 0.86 inches |
Operating system | RouterOS v7, License level 5 |
Operating temperature | -40°C to +70°C |
Powering | |
PoE-in | 802.3af |
PoE-Out* | Passive PoE |
Max out per port output (DC input 24-30 V) | 1 A |
Max out per port output (DC input 30-56 V) | 450 mA |
Number of DC inputs | 2 (PoE-in, DC jack) |
PoE-in input Voltage | 24-56 V |
DC jack input Voltage | 24-56 V |
Max USB current | 1.5 A |
Power adapter nominal voltage | 24 V |
Power adapter nominal current | 1.5 A |
Max power consumption without attachments | 8 W |
Max power consumption | 37 W |
