MikroTik mANTBox ax 15s Outdoor Wi-Fi 6 Basestation (US)
- SKU: L22UGS-5HaxD2HaxD-15S-US
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
Managing outdoor wireless networks has never been easier: mANTBox ax 15s can provide unparalleled wireless point-to-multipoint connectivity for various devices over a distance of 20 kilometers!

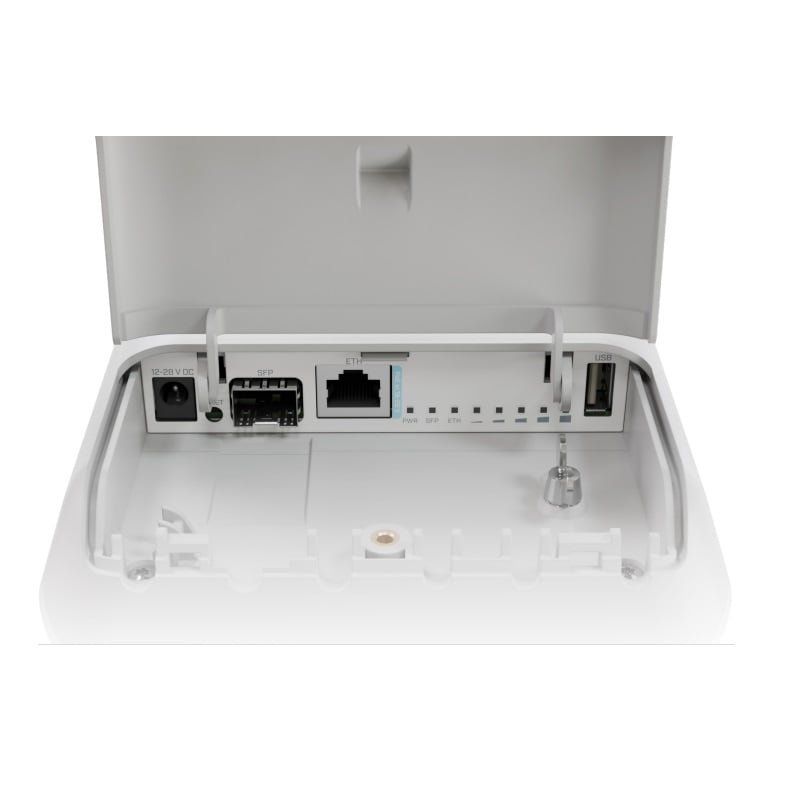

A potent combination of modern dual-core ARM CPUs, our latest 802.11ax Wi-Fi 6 dual-band radios and powerful built-in sector antennas will take your signal stability, speed, and responsiveness to the next level! There’s a Gigabit Ethernet port with PoE-in and an SFP port with 2.5 Gigabit support for extra fast fiber uplinks.
Upgrading your setup to Wi-Fi 6 offers multiple benefits:
Speed: we’ve seen up to 40% higher speed in the 5 GHz spectrum and up to 90% higher speed in the 2.4 GHz spectrum.
Security: WPA3 encryption and management frame protection prevent all sorts of attacks, like brute-forcing and WPA2 handshake capture de-authentication attacks
Reliability: seamless, fast transition (roaming) enables smooth, non-stop signal when you have to switch between access points. Also, Wi-Fi 6 ensures a fair traffic distribution if many users share the connection.
Energy efficiency: features like Target Wake Time reduce power consumption in the long run. Better for your wallet and the planet!

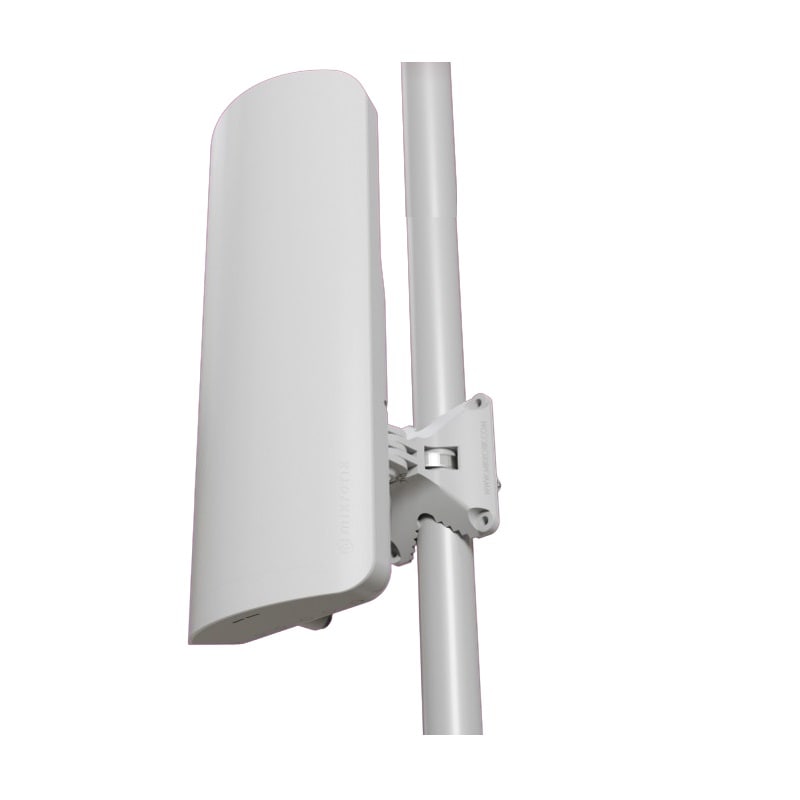

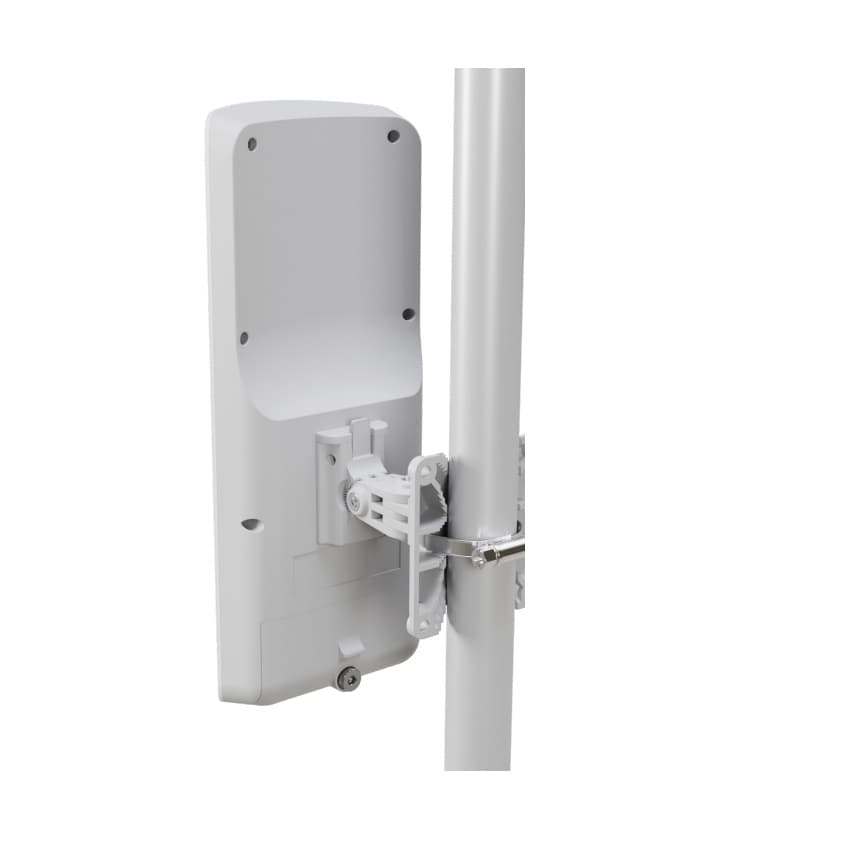

mANTBox package includes everything you need: a Gigabit PoE injector, a power supply, a hose clamp and a fastening set, and the MikroTik quickMOUNT pro. This advanced wall mount adapter allows antennas to be turned within 140° both horizontally and vertically. With the quickMOUNT pro, it is possible to set antenna alignment perfectly using an integrated graduated scale.
Product Includes- 1x MikroTik mANTBox ax 15s
- 1x 24V 1.2A Power Adapter
- 1x Gigabit PoE Injector
- 1x Hose Clamp
- 1x QMP
- 1x K-41 Fastening Set
Specifications
Specifications
CPU | Dual-Core IPQ-5010 800 MHz |
CPU architecture | ARM |
Size of RAM | 256 MB |
Storage | 128 MB, NAND |
Number of 1G Ethernet ports | 1 |
Number of 1G SFP ports | 1 (2.5G supported) |
USB port | 1 USB 2.0 port type A |
Wireless interface model | IPQ-5010 (2.4 GHz), QCN-6102 (5 GHz) |
Wireless | 2.4 GHz 802.11b/g/n/ax dual-chain, 5 GHz 802.11a/n/ac/ax dual-chain |
Antenna gain | 2.4 GHz - 12 dBi, 5 GHz - 15 dBi |
Dimensions | 349 x 140 x 82 mm (13.70 x 5.51 x 3.22 inch) |
Operating system | RouterOS v7, License level 4 |
Operating temperature | -40°C to +70°C |
Powering | |
Number of DC inputs | 2 (PoE-In, DC jack) |
PoE-In input Voltage | 18-28 V |
DC jack input Voltage | 12-28 V |
Max USB current | 1.5 A |
Power adapter nominal voltage | 24 V |
Power adapter nominal current | 1.2 A |
PoE-In | Passive PoE |
Max power consumption (without attachments) | 11 W |
Max power consumption | 21 W |
