MikroTik mANT 15S Antenna
- SKU: MTAS-5G-15D120
$57.23 $59.00
- Manufacturer: MikroTik
- Data Sheet / Spec Sheet: Download
Product Information

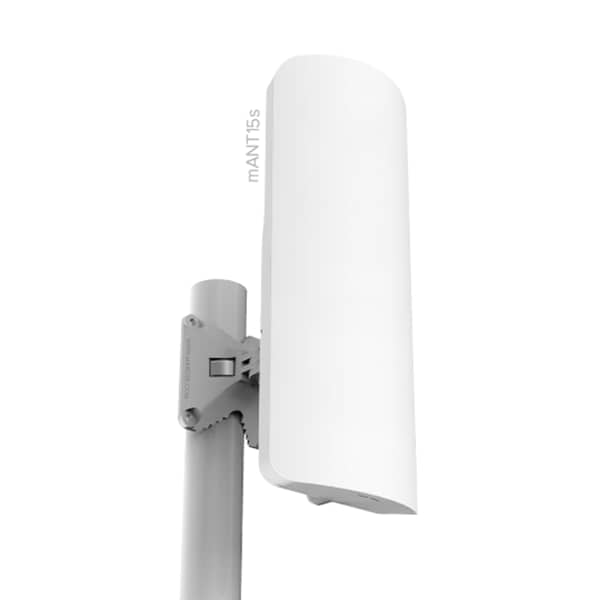

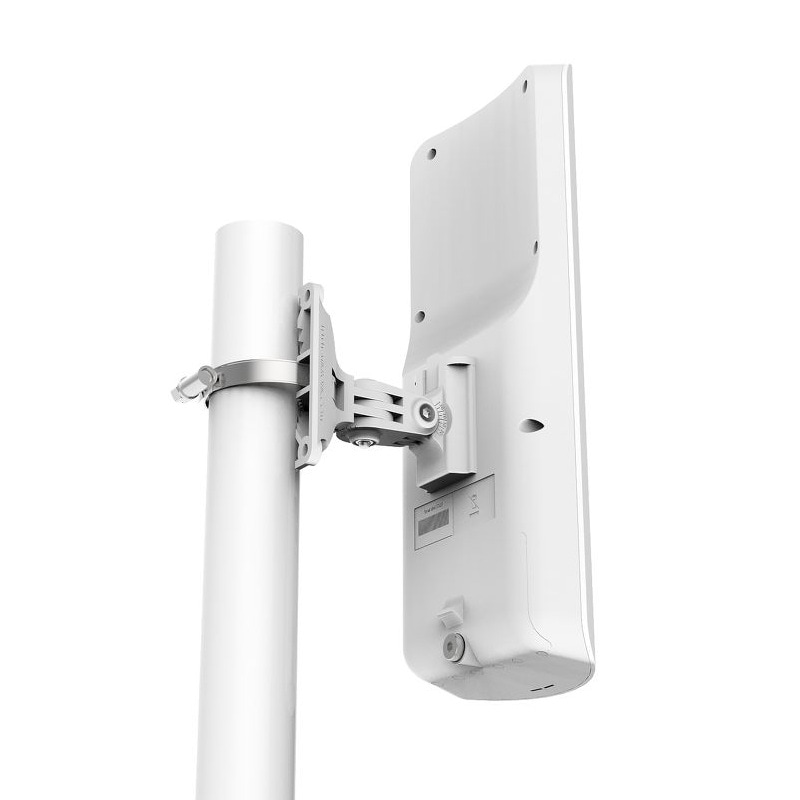

ISP Supplies supplies the MikroTik mANT 15S dual polarized 5GHz 15dBi 120 degree beamwidth antenna with (2) RP-SMA conntectors. It is compatible with the SXT type mount, so you can use it with MikroTik's durable and adjustable QuickMount systems. It comes with quickMOUNT PRO.
The new sector mANT antennas are the perfect companion for the BaseBox, NetBox, NetMetal or any other outdoor wireless device.
Specifications
Specifications MTAS-5G-15D120
| Antenna gain | 15dBi |

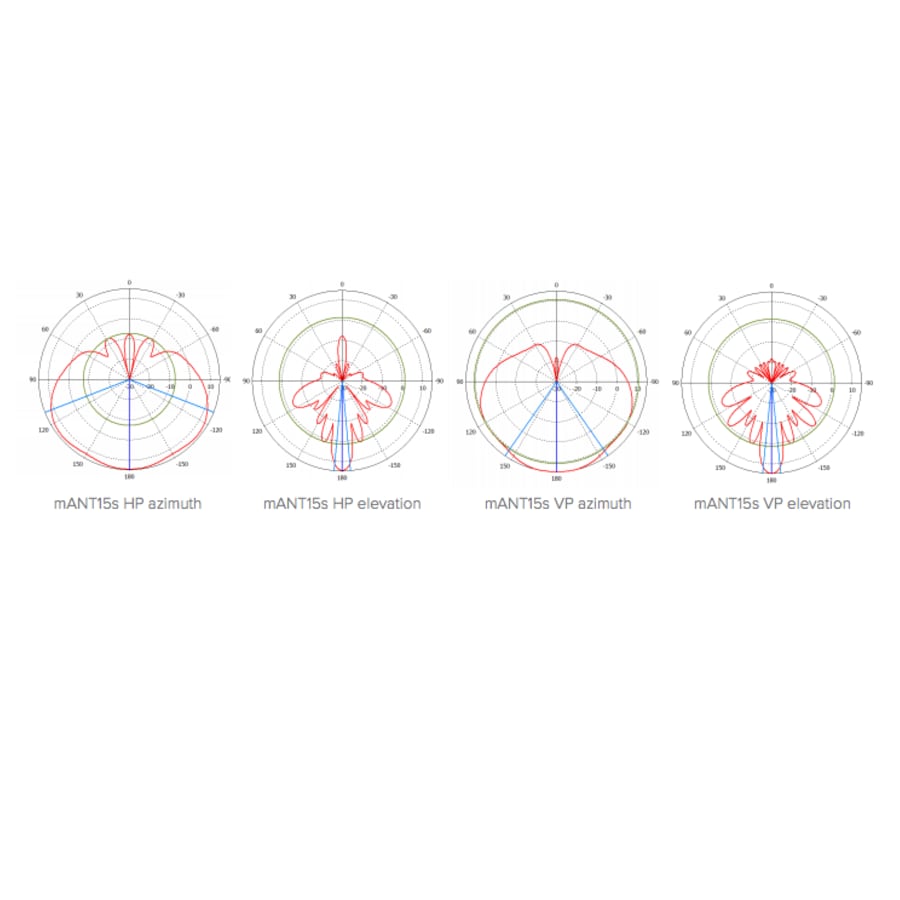

| Beamwidth | 120 deg (azimuth) 10 deg (elevation) |

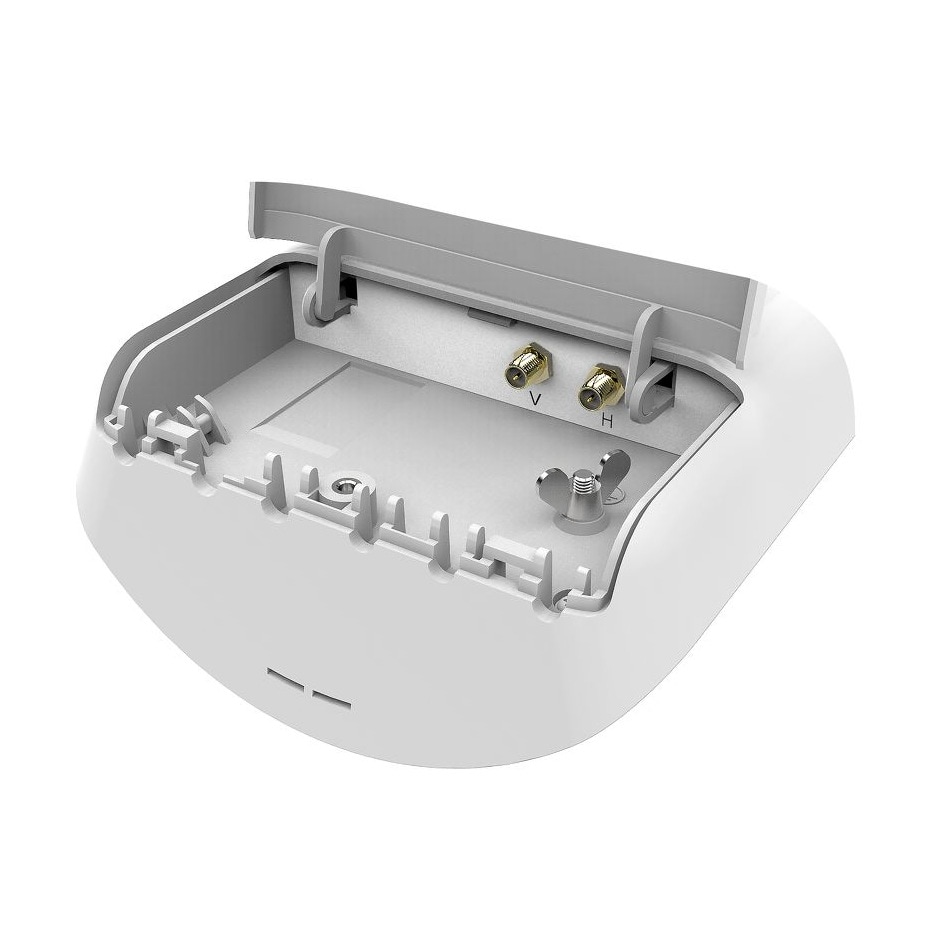

| Connector | two RP-SMA |
| Cross Polarization | >30 dB |
| Diameter x Depth | 140 x 348 x 82 mm |
| Frequency Range | 5.17 - 5.825 GHz |
| Front-to-Back Ratio | >30 dB |
| Polarization | Vertical and horizontal |
| Port to Port Isolation | >40 dB min |
| VSWR | 1.43 typ, 1.8 max |
| Weight | 734 g |
