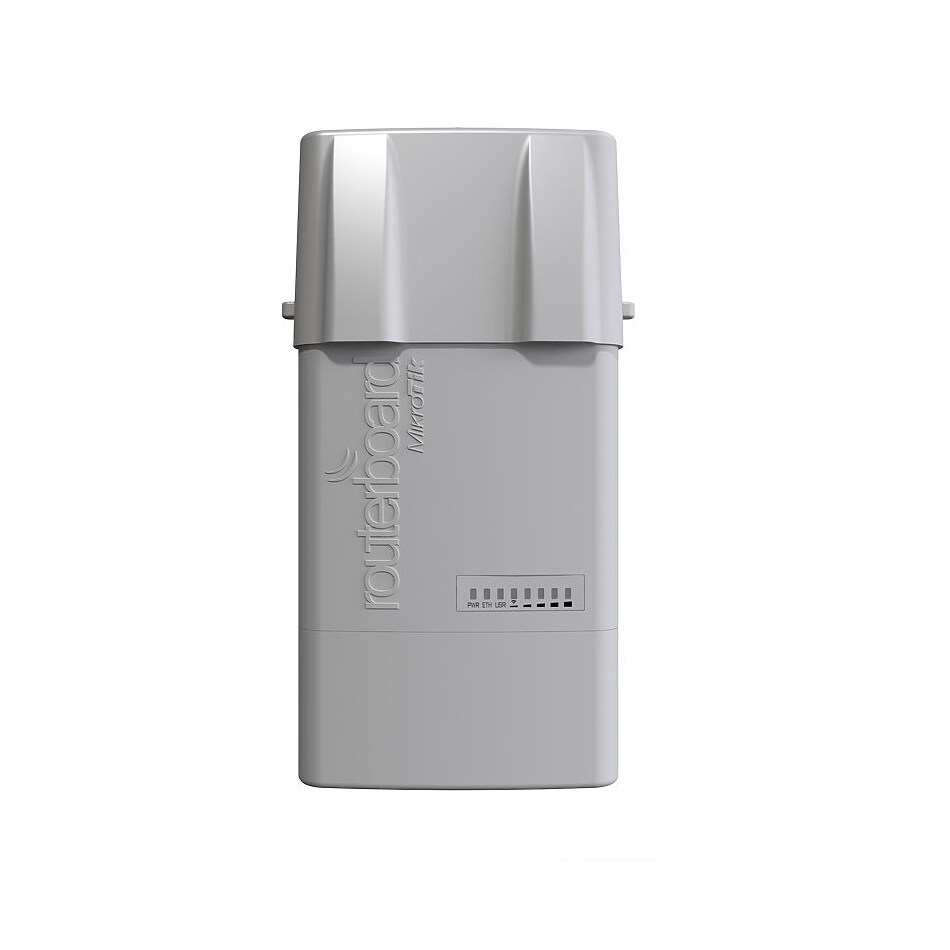

MikroTik BaseBox 6 6GHz Integrated AP / Backbone / CPE
- SKU: RB912UAG-6HPnD-OUT
Product Information

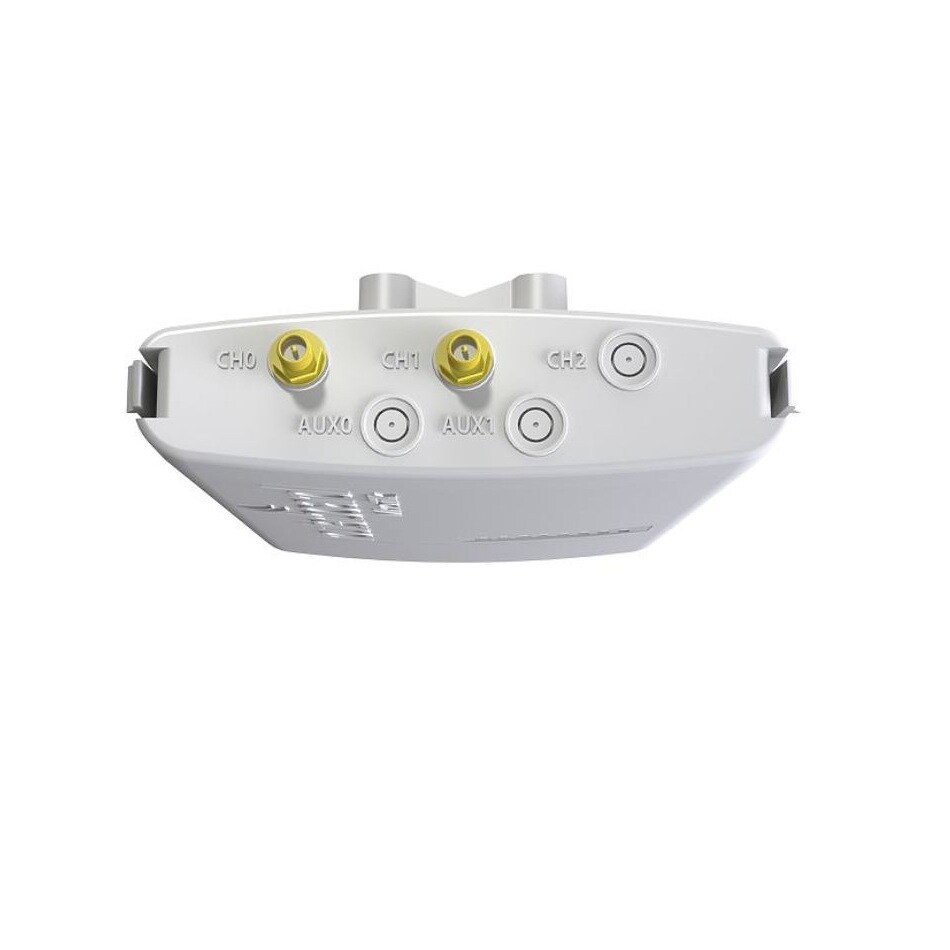

ISP Supplies supplies the MikroTik BaseBox 6 outdoor wireless device, based on MikroTik's popular RB912 model, fitted with two SMA connectors for antennas, and a cable hood for protection against moisture. Also available are three additional places for antenna connectors, in case you wish to use the BaseBox miniPCIe slot for one more wireless interface to make a dual band device, or a 3G/4G modem.
Designed to use as an 6GHz AP with our 6GHz CPEs, like DynaDish 6 and SXT 6.
IMPORTANT! Product is available for 5.9-6.4GHz license holders only, you would need to show your license to Distributor to be able to place your order.
This product is not suitable for unlicensed ISM bands. Device use is subject to country regulations. Availability might be limited depending on distributor stock and country regulations.
Specifications
Specifications RB912UAG-6HPnD-OUT
| CPU | AR9342 |
| CPU nominal frequency | 600 MHz |
| Size of RAM | 64 MB |
| Storage | Flash 64 KB, NAND 128 MB |
| 10/100/1000 Ethernet ports | 1 |
| Wireless | 6 GHz 802.11a/n, dual-chain |
| Frequency range | 5.9 - 6.4 GHz |
| Wireless chip | AR9342 |
| Antenna headers | 2, RP-SMA connectors |
| PoE in | Yes |
| Supported input voltage | 10 - 30 V |
| USB | 1 USB type A, max 1 A |
| PCB temperature monitor | Yes |
| Voltage monitor | Yes |
| Beeper | Yes |
| SIM slot | Yes, Mini SIM |
| miniPCIe slot | 1 |
| Dimensions | 246 x 135 x 50 mm |
| Operating temperature | -40°C .. +70°C tested |
| Max power consumption | 23 W |
| License level | 4 |
| Operating System | RouterOS |
