MikroTik RouterBOARD M33G Powerful OEM Board
- SKU: RBM33G
Product Information

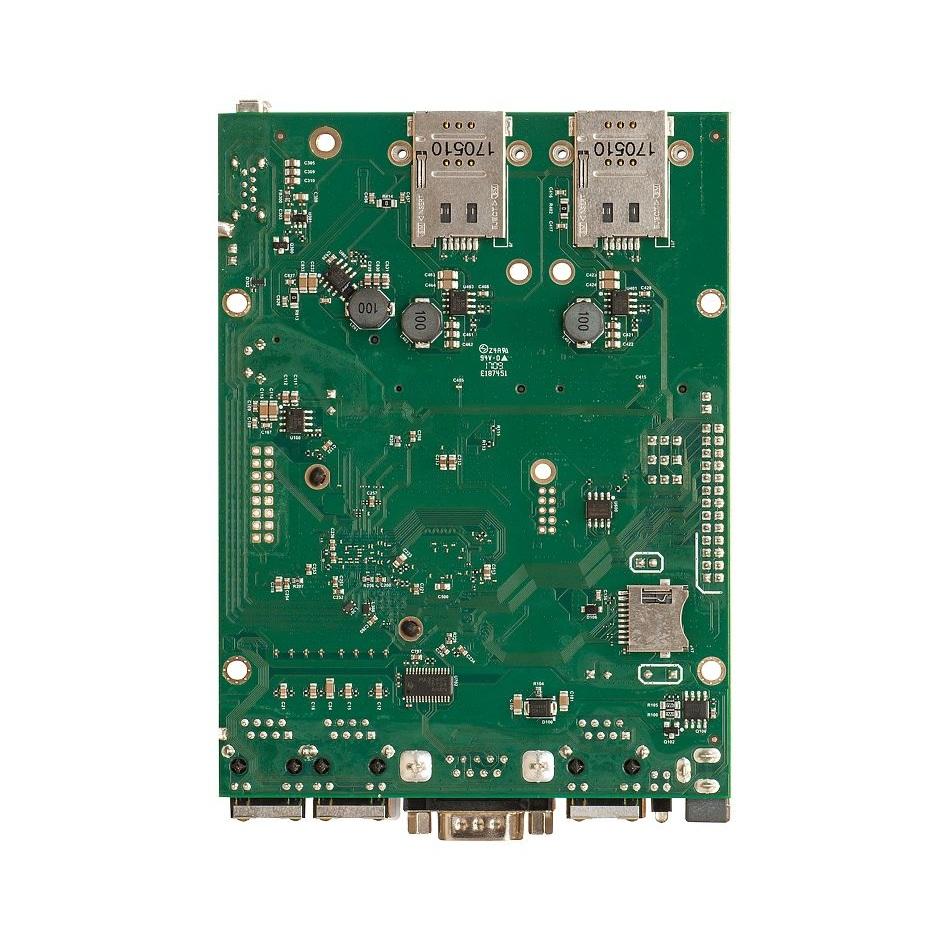

ISP Supplies supplies the MikroTik RBM33G, a fully featured RouterBOARD device perfect for using in your own enclosure or building a custom solution.It uses the same PCB form factor and same mounting holes as it’s predecessors (RB433 and RB953 series).
The RBM33G features a new two core CPU running at 880 MHz and 256 MB of DDR3 RAM and three gigabit ethernet ports. It is specially designed for setups that requires two 3G/LTE modems. You can use e.g.:
• Two miniPCIe 3G/LTE modems for multiple mobile connections (two SIM slots provided)
• One miniPCIe and One USB 3G/LTE modem leaving other miniPCIe slot for 802.11 wireless card (consult product Quick Guide for details)
The included USB 2.0/3.0 port can be used either for 3G/LTE modem or an external hard drive (consult product Quick Guide for details). For expanding storage, microSD and a PCIe M.2 slots are provided.
The RBM33G comes fitted with a RS232 serial port for console access. The device can be powered by PoE through it’s gigabit ethernet connector or through the DC power jack.
Specifications
Specifications RBM33G
| Product code | RBM33G |
| CPU | MediaTek MT7621 |
| CPU nominal frequency | 880 MHz |
| CPU core count | 2 |
| Size of RAM | 256 MB |
| Storage | Flash, 16 MB |
| 10/100/1000 Ethernet ports | 3 |
| MiniPCIe slots | 2 |
| PoE in | Yes |
| SSD | M.2 slot |
| Serial port | RS232 |
| USB | 1 USB 3.0 type A |
| Supported input voltage | 11 V - 32 V (Passive PoE) |
| Dimensions | 105 x 150 mm |
| Operating temperature | -40°C .. +70°C tested |
| License level | 4 |
| Operating System | RouterOS |
| Max Power consumption | 19 W |
