MikroTik 2GHz High Power miniPCI-e Card
- SKU: R11e-2HPnD
$37.83 $39.00
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information

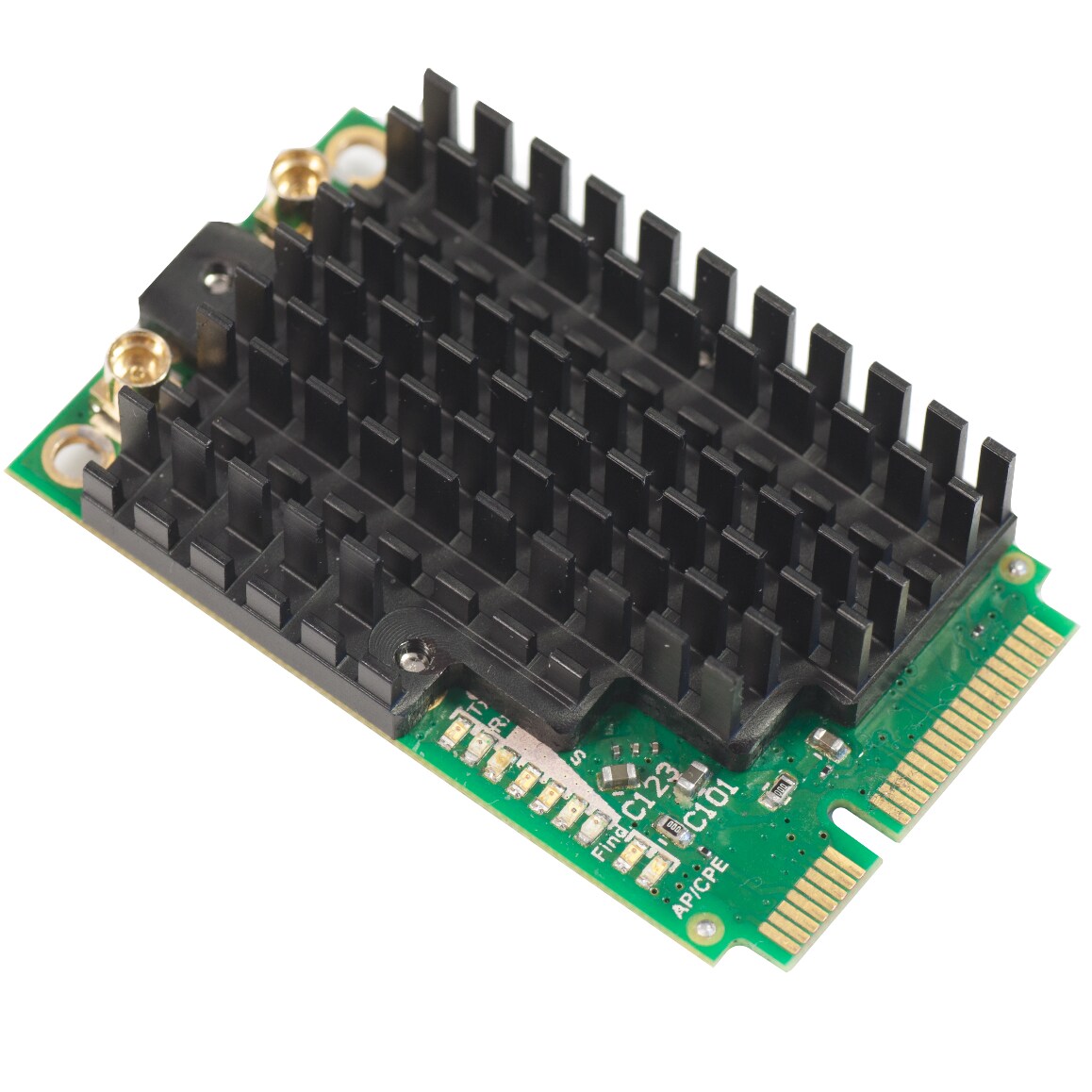

ISP Supplies supplies the MikroTik R11e-2HPnD 802.11b/g/n Dual Chain high power miniPCI-e card, operating in full 2192-2732 MHz frequency. Ideally suited for the new RB912 series (Specific frequency range can be limited by country regulations), RB800 or MikroTik's new miniPCIe adapters - RB14e/RB14eU
The unit is equipped with two MMCX connectors.
Specifications
Specifications R11e-2HPnD
| Chipset | AR9582 |
| Frequency range | 2312-2732 MHz |
| Standards | 802.11b/g/n |
| Max output power | 1000mW |
| Format | miniPCIe |
| Dimensions | 51x30x13mm |
| Connectors | 2x MMCX |
| Features | 9 LED indicators, ESD protection |
| Temperature | Operating -40C to +65C |
| MAX power consumption | 5W |
| TX/RX at MCS0 | 30dBm / -96dBm |
| TX/RX at MCS7 | 24dBm / -76dBm |
| TX/RX at 6Mbit | 30dBm / -96dBm |
| TX/RX at 54Mbit | 25dBm / -80dBm |
