MikroTik RouterBOARD 912UAG-5HPnD with 600MHz CPU and 64MB RAM (US)
- SKU: RB912UAG-5HPnD-US
$76.63 $79.00
Product Information

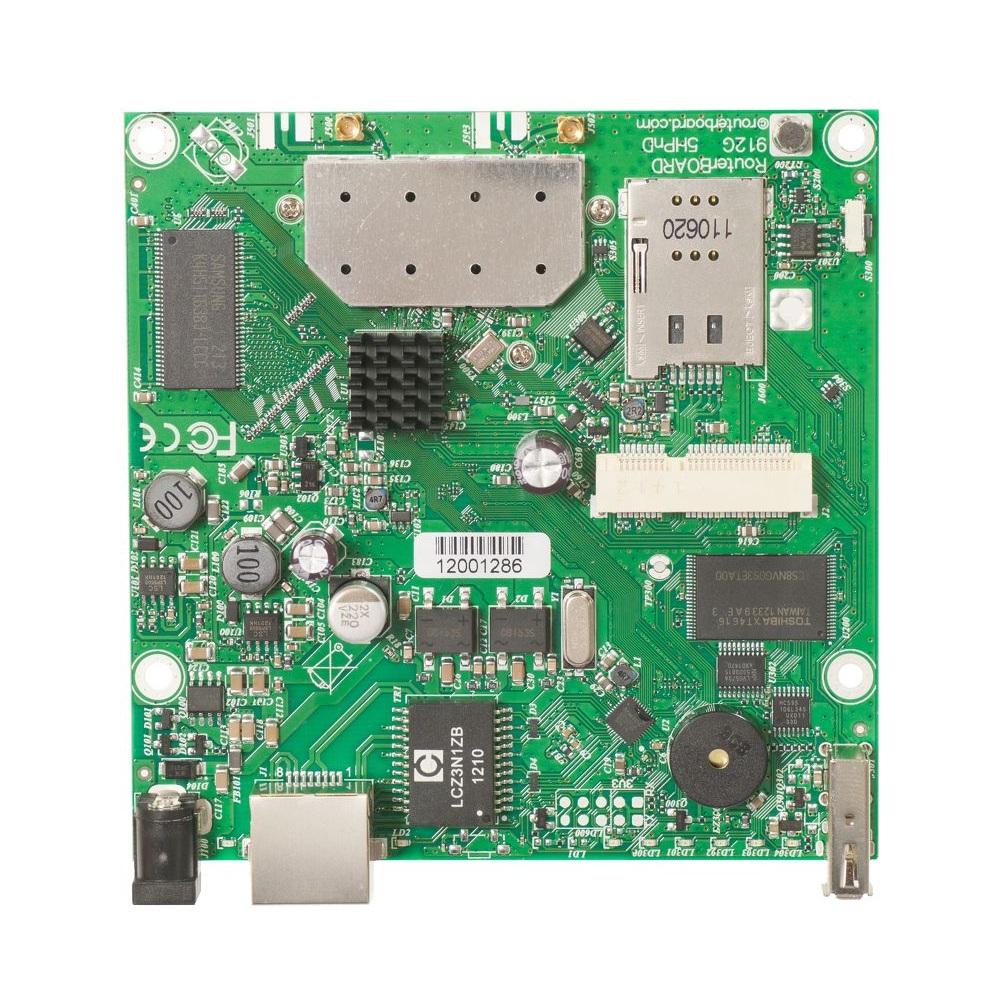

ISP Supplies supplies the MikroTik RouterBOARD 912UAG-5HPnD with 600MHz CPU and 64MB RAM, also featuring 1xGigabit Ethernet, onboard 5GHz wireless, miniPCI-express, USB, SIM slot, and RouterOS L4. The RB912UAG-5HPnD is a very versatile device. It is a small wireless router with an integrated high power wireless card and an additional miniPCIe slot for 802.11 wireless, or 3G card. The Gigabit port helps to utilize the full potential of 802.11n wireless speeds.
It has built in 16kV ESD protection on both the Ethernet and the MMCX ports
This version, RB912UAG-5HPnD-US (USA) is factory locked for 5170-5250MHz and 5725-5835MHz frequencies. This lock can not be removed.
Specifications
Specifications RB912UAG-5HPnD-US
| Architecture | MIPSBE |
| CPU | AR9342 |
| CPU core count | 1 |
| CPU nominal frequency | 600 MHz |
| Dimensions | 105x105mm |
| License level | 4 |
| Operating System | RouterOS |
| Size of RAM | 64 MB |
| Storage size | 128 MB |
| Storage type | NAND |
| Tested ambient temperature | -40°C .. +70°C tested |
| Max Power consumption | 12W |
| PoE in | Passive PoE |
| PoE in input Voltage | 8-30 V |
| Number of DC inputs | 2 (DC jack, PoE-IN) |
| DC jack input Voltage | 8-30 V |
| Wireless 5 GHz number of chains | 2 |
| Wireless 5 GHz standards | 802.11a/n |
| Wireless 5 GHz chip model | AR9342 |
| 10/100/1000 Ethernet ports | 1 |
| Number of SIM slots | 1 Modem (Mini SIM) |
| MiniPCI-e slots | 1 |
| Number of USB ports | 1 |
| USB Power Reset | Yes |
| USB slot type | USB type A |
| Max USB current (A) | 1 |
