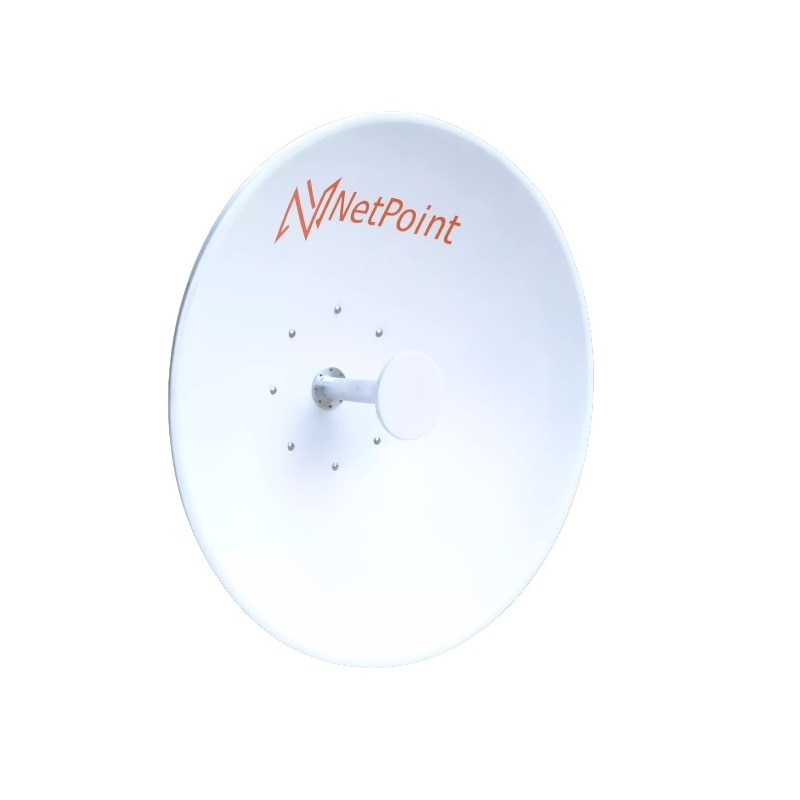

NetPoint 6GHz 3FT Parabolic Dual Polarity Antenna
- SKU: NP6-DP-3FT
$599.00
- Manufacturer: NetPoint
- Data Sheet: Download
Product Information
Compatible with Cambium Networks ePMP 4600C, NetPoint's NP6-DP3FT super high-performance dish antenna is designed to work with very high performance in both licensed and unlicensed bands with excellent gain. The NP6-DP-3FT model has dual polarization, an N-female connector, and exceptional VSRW performance in the 5.9 to 7.2 GHz operating band. The antenna comes pre-assembled and ready to install, as well as an integrated radome for high performance and reliable operation in the most demanding conditions. This 3-foot parabolic antenna can be used for PTP backhaul, CPE, and public safety applications.
Compatible Radio Units
The NP6-DP antenna is compatible with the Cambium Networks Force 4600C radio.
Product Features:
- Gain of up to 32dBi with low VSWR and high port isolation across the entire
- 5.9 - 7.2GHz band
- One antenna that covers 6GHz and 7Ghz
- Reduced interference with > 50dB minimum front-to-back
- Simplifies installation on-site and guarantees “factory-tested” quality
- Connector type N-Female
Product Includes:
- 2x Pigtails of N-RPSMA pigtails for free
- 1x Radome
- Stiff arm
Specifications
Specifications
| Weight | 39.7 lbs |
| Dimensions | 14.57” x 41.34” x 41.34” |
| Electrical | |
| Operating Frequency | 5.9 - 7.2 GHz |
| Beamwidth | 3° aperture |
| Diameter | 95 cm | 3.11 ft |
| Gain | 32 dBi |
| Connection Type | N Female |
| Front to back | > 40 db |
| VSWR | <2.0 |
| Mechanical | |
| Maximum survivable wind speed | 200 km/hr |
| Elevation azimuth | +/- 15°. |
| Horizontal adjustment azimuth | +/- 60°. |
| Operating temperature | -49 to +140 F° | -45 to +60 C° |
| Connection type | N Female |
| Mast Diameter | Minimum 1 inch - 25.4mm | Maximum 2.95 inch 75.00mm |
