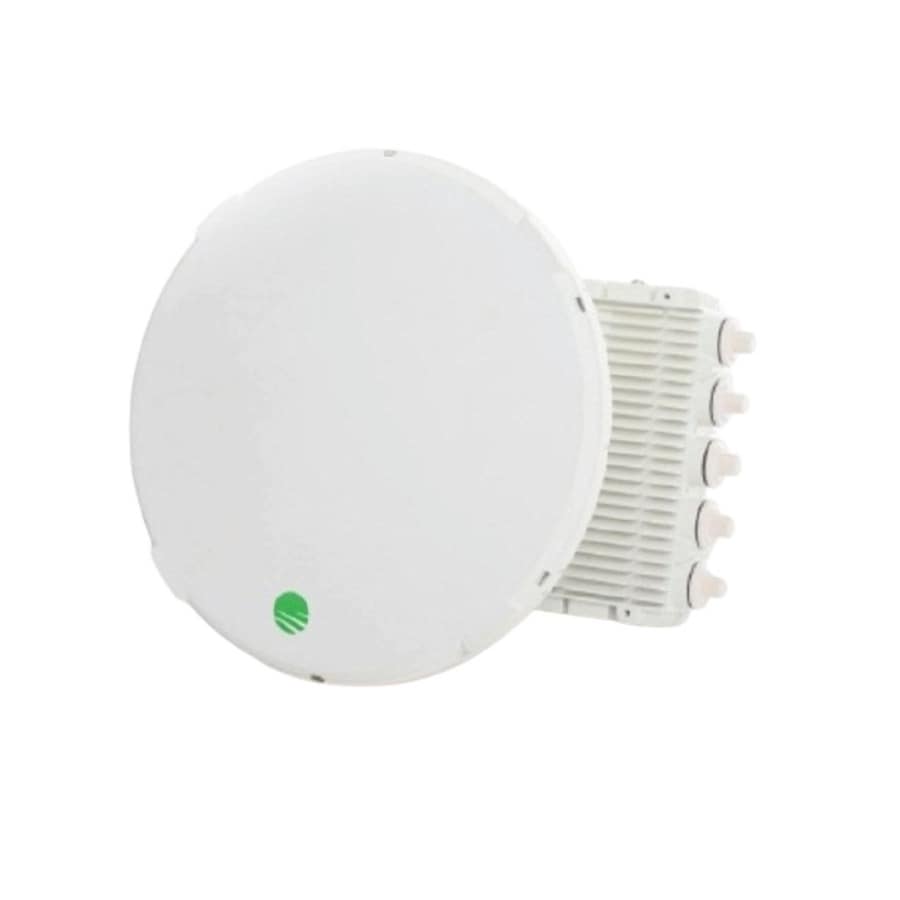

Siklu 10Gbps EtherHaul EH-8010FX High Band ODU
- SKU: EH-8010FX-ODUH-N-2C1P-EX-D
- Manufacturer: Siklu
- Data Sheet: Download
Product Information
The Siklu EH-8010FX delivers up to 10Gbps Full Duplex throughput for high-capacity networks in Metro, Aggregation and Infrastructure or Backhaul applications.
Scalable capacity from 2Gbps full duplex to 10 Gbps full duplex allows deploying what you need and when you need. And with its IP67 construction, the EH-8010FX is extremely rugged and designed to last for years of growth in the harshest conditions at a price that yields quick Return-On-Investment (ROI) and minimizes Total Cost of Ownership (TCO). The advanced up-to10Gbps system delivers an unbeatable price per Gb. Its small and light form factor lowers installation costs, increases reliability and reduces site visits.
The Siklu EH-8010FX operates over the interference-free 71-76/81-86GHz E-Band spectrum, with a total of 10GHz of bandwidth for use worldwide. By using a high-gain pencil-beam antenna, this helps guarantee spectrum will be available everywhere and maximizes spectrum re-use. Additionally, E-band systems are governed by low licensing fees and quick licensing processes.
Product Applications
- Fiber Network Extension/ Backup
- Enterprise Multi Gigabit-Connectivity
- Metro and Aggregation Networks
- Multi-Dwelling Unit Gigabit Broadband
Antenna Options
- 0.5 ft. (16 cm) - 38dBi antenna gain (not applicable for FCC regulation)
- 1 ft. (31cm) – 43dBi antenna gain
- 2 ft. (65cm) – 50dBi antenna gain
- 1x Siklu EtherHaul ODU with external antenna interface
- 4x Connecting cable all-weather shells
- 1x Unit grounding cable (90 cm)
- 1x DC cable terminal block connector
Specifications
Specifications EH-8010FX-ODUH-N-2C1P-EX-D
| Frequency | 71-76GHZ/81-86GHZ", FDD |
| Channel Bandwidth Modulation & Adaptive Rate | 500/1200/200 MHz adaptive bandwidth, coding and modulation-boost gain by up to 22 dB |
| Throughput | 1000Mbps (FD) |
| Tx Power | BPSK:+18dBm QAM128: +14dBm |
| Receive Signal Level (RSL) | RSL@ BPSK -75dBm RSL@QAM128 =-50dBm |
| Reach | 1.7/2.3 mile @ 99.95 % availability (rain zone K/E, 2ft ANT.) |
| Interfaces | 1 combo 10GE port: 802.3bz (RJ-45, copper) or SFP+ (MMF or SMF) 1GE port: 802.3ab (RJ-45, copper) |
| Power supply | PoE+ or 36+57VDC; 50W |
| Management and provisioning | In/Out-of-band management Web GUI or CLI SNMPV2/3, TACACS+, RADIUS Zero-touch turn-up |
| L2, Traffic Management | Transparent Bridge, VLAN encapsulation QoS Aware Traffic Management |
| Security | AES (factory option) |
| Timing | Synchronous Ethernet and 1588v2 TC (factory option) |
| Conformance | Radio: USA FCC Part 15.101 &ETSI EN 302 217; EMC: USA FCC 47CFR.part 15 & ETSI EN 301 489; Safety UL/EN 60950 |
| Environmental | Operating Temperature: 45 to +55 C(-49" to +131 F) ingress Protection Rating: IP67 |
| Dimensions | ODU+0.5ft antenna: 9.17 x 8.11x 5.55 (23.3cm x 20.6cm x 14.1cm) ODU 1ft antenna (Dia. x Depth): 12.6" x 4.3" (32cm x 13cm) ODU 2ft antenna (Dia.x Depth): 25.6 x 15.35 (65cm x 37cm) |
| Weight | ODU+0.5ft antenna: 9.21bs. (4.1 kg) ODU+ 1ft. antenna: 9.9lbs (4.4kg) ODU+ 2ft. antenna: 24.3lbs (10.9kg) |
