Product Information

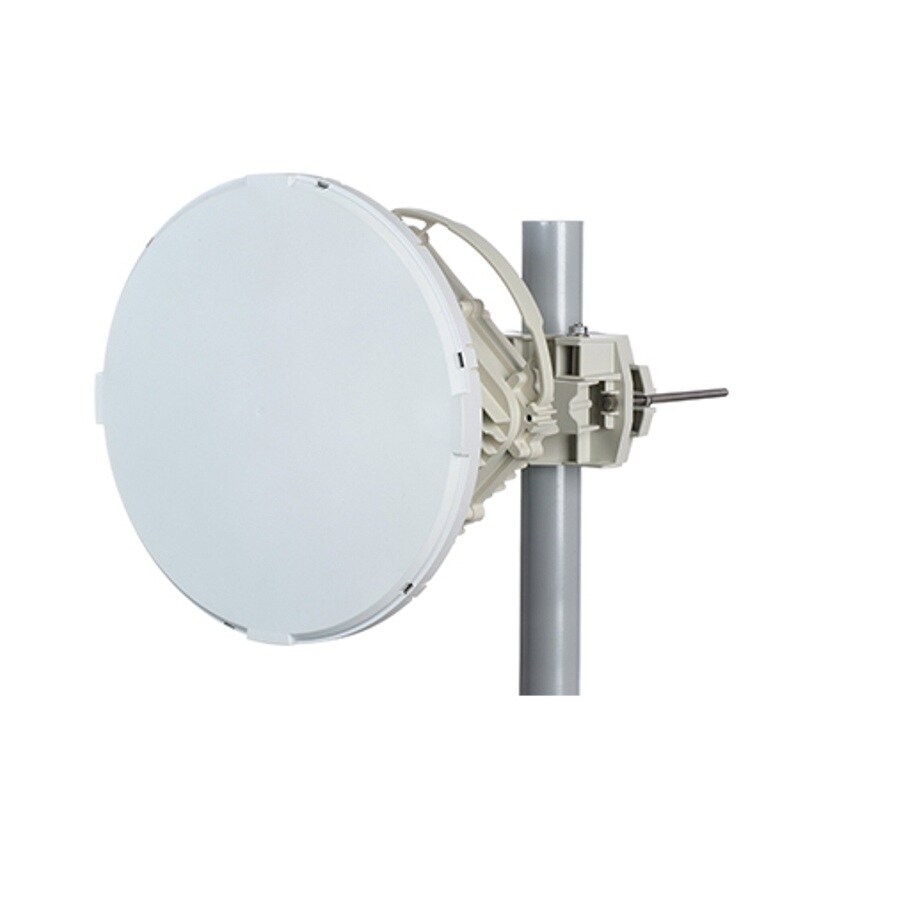

This is an external 1FT antenna for all connectorized EH-1200, EH-2200 and EH8010 ODU's. Radios sold separately. Supports 71-76 and 81-86GHz frequencies.
Product Specifications:- Frequency Range: 71-86 GHz
- Regulatory Compliance: ETSI: EN 302 217-4-2 V1.5.1 Class 2, FCC: 47CFR101
- Gain: 43dBi ± 2dB
- 3 dB Beam: 0.9°
- Polarization: Linear Vertical/Horizontal
- Input Power: 10W (Maximum)
- Interface: Circular waveguide E-band
- Radome: Plastic
- Minimum Temperature: -55°C (-67°F)
- Maximum Temperature: +71°C (159.8°F)
- Ingress Protection (IP) Rating: IP67
- EH-1200T/TX
- EH-1200F/FX
- EH-2200F/FX
- EH-2500F/FX
- EH-5500FD
- EH-8010FX
Specifications
Specifications EH-ANT-1FT-B
| Frequency Range | 71 - 86 GHz |
| Regulatory Compliance | |
| ETSI | EN 302 217-4-2 V1.5.1 Class 2 |
| FCC | 47CFR101 |
| Gain | 43dBi ± 2dB |
| 3 dB Beam | 0.9° |
| Polarization | Linear Vertical/ Horizontal |
| Input Power | 10 W (Max.) |
| Interface | Circular waveguide E-band |
| Radome | Plastic |
| Minimum Temperature | -55°C (-67°F) |
| Maximum Temperature | +71°C (159.8°F) |
| Ingress Protection (IP) Rating | IP67 |
