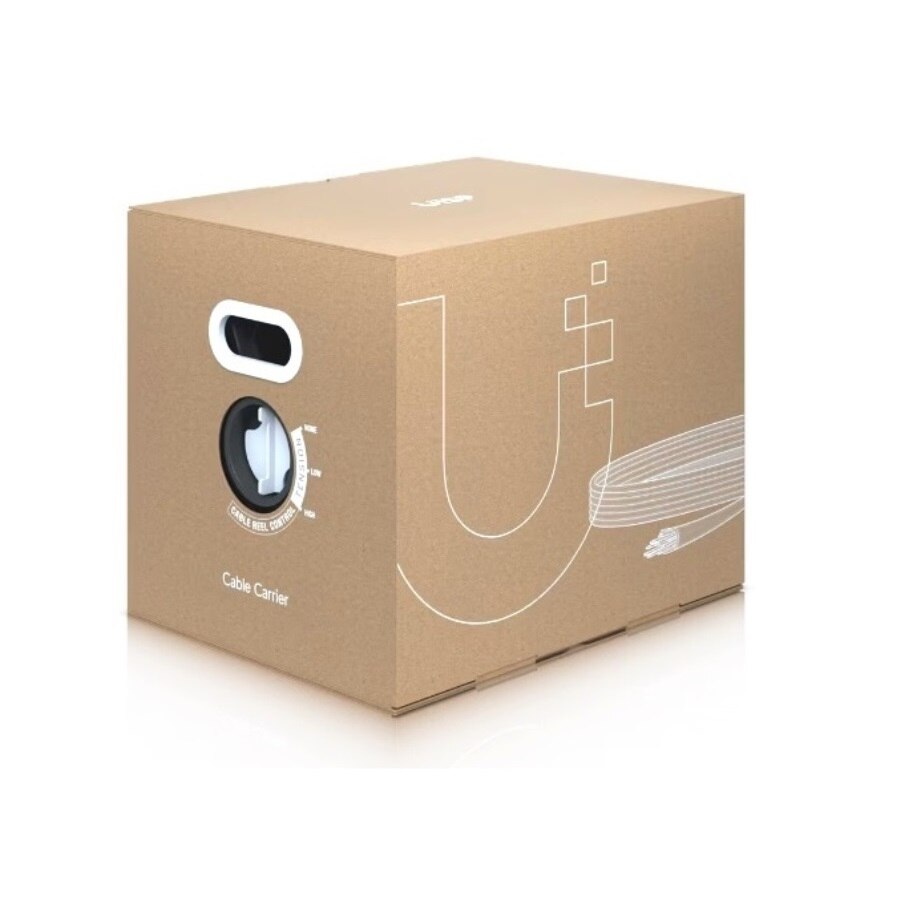

Ubiquiti UISP Cable Carrier
- SKU: UISP-Cable-Carrier
$180.00
Product Information
Industrial-grade Ethernet cable that protects your network from elemental and electrostatic damage.
Specifications
Specifications TC-Carrier
| Cable | CAT5e, Shielded |
| Ethernet Support | Up to 1 Gbps |
| Conductor Wire Gauge | 24 AWG |
| Conductor | Solid Bare Copper |
| Conductor Diameter | 0.500 ± 0.005 mm |
| Insulation Type | Solid PE |
| Insulation Thickness | AVG: 0.295 mm, MIN: 0.29 mm |
| Insulation Diameter | 1.16 ± 0.02 mm |
| Separation (Polyester Wrapping) | Thick: 0.025 mm, Extent: 20 mm |
| Anti-Crosstalk Divider | LDPE: 4.2*0.3 mm |
| Cable Shield (Aluminum Foil) | Thick: 0.060 mm, Extent: 20 mm |
| ESD Drain Wire | 0.4 TC |
| Rip Cord | Yes |
| Secondary Cable Shield (Braid) | 16*8*0.16AA Density: 95% |
| Jacket Material | PE |
| Jacket Thickness | AVG: 0.52 mm, MIN: 0.46 mm |
| Jacket Outer Diameter | 6.8 ± 0.30 mm |
| Jacket Color | Gray |
| Reference Standard | ISO/IEC 11801, TIA/EIA568B.2 |
| Installation Temperature | -20 to 60° C (-4 to 140° F) |
| Storage Temperature | -30 to 75° C (-22 to 167° F) |
| OperationTemperature | -40 to 80° C (-40 to 176° F) |
