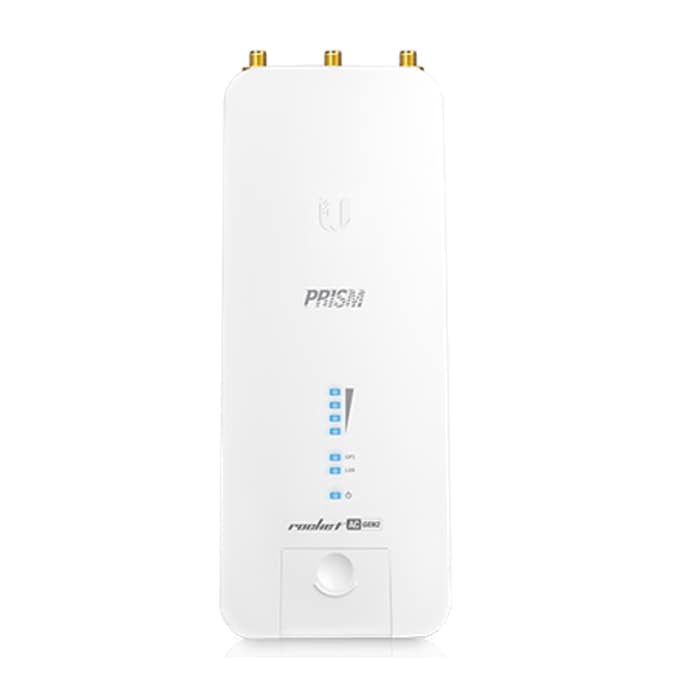

Ubiquiti UISP airMAX Rocket Prism 5AC BaseStation (US)
- SKU: RP-5AC-GEN2-US
Product Information
Ubiquiti Networks 5GHz Rocket ac Gen2 airPrism metal
High-performance 5 GHz basestation for PtMP or PtP links. Provides up to 500+ Mbps data throughput.
- 5 GHz airPrism active RF filtering technology
- 450+ Mbps throughput
- 50+ client capacity
- Dedicated spectral analysis radio
- Integrated GPS sync
The Rocket® Prism 5AC covers the full 5 GHz radio band and incorporates both airMAX ac and airPrism technologies for maximum performance of wireless links in high-density areas.

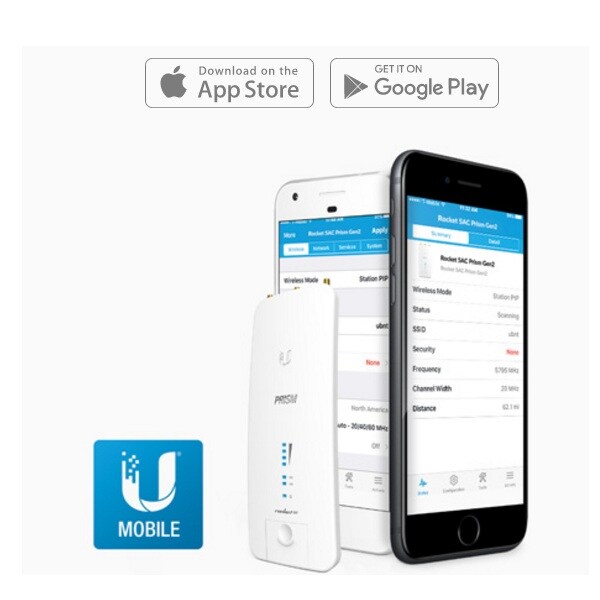

Management Wi-Fi Radio
The Rocket® Prism 5AC integrates a separate Wi-Fi radio for fast and easy setup using your mobile device.

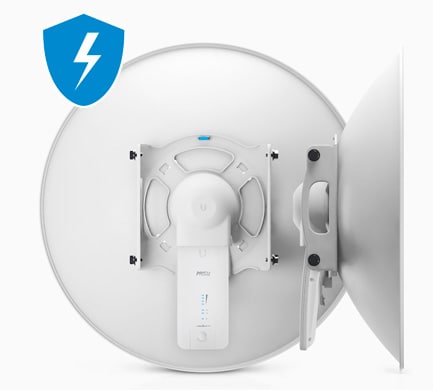

Improved Surge Protection
The Rocket® Prism 5AC features enhanced protection against ESD events.

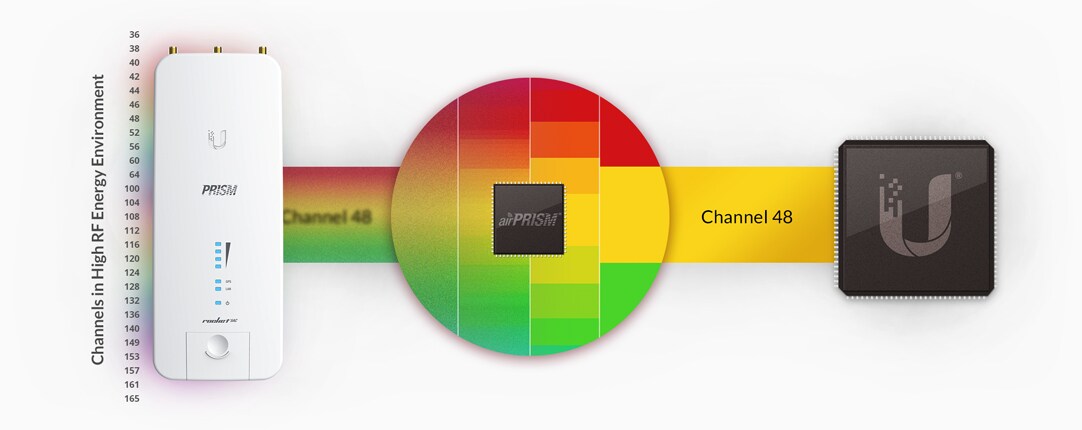

Revolutionary Filtering Technology
Ubiquiti’s patented airPrism technology provides breakthrough radio selectivity in unlicensed wireless band performance. airPrism technology isolates signals within the operating channel to increase capacity and throughput in co-location deployments.

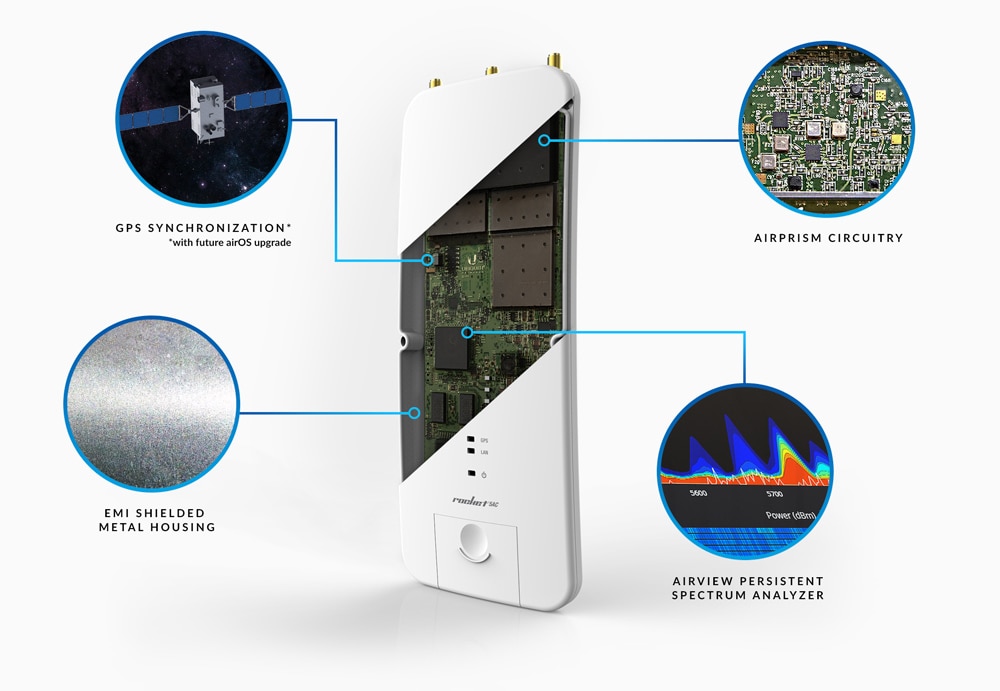

Designed for High Performance
The Rocket® Prism 5AC features EMI-shielded metal housing, GPS, airPrism circuitry, and the airView® real-time spectrum analyzer to deliver maximum spectral efficiency/throughput.
Full-Band 5 GHz Coverage
The Rocket® Prism 5AC delivers complete coverage of the 5 GHz spectrum with a single radio.

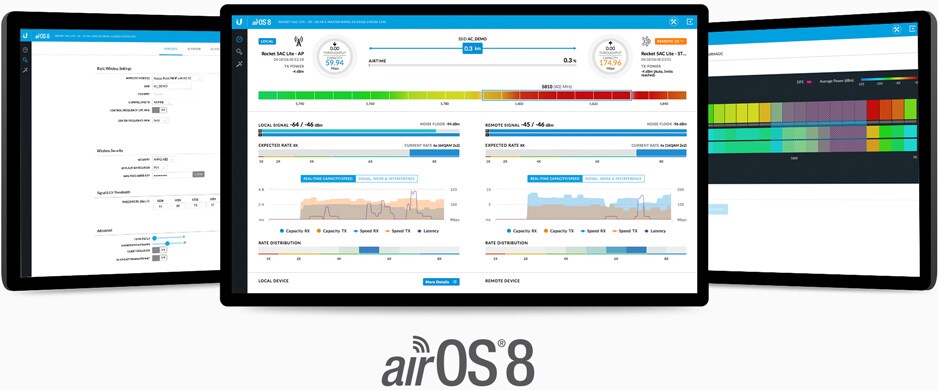

Now with airOS®8
airOS®8 provides powerful features, including airMAX® ac protocol support, real-time RF analytics, and an all-new design for enhanced usability.
Specifications
Specifications RP-5AC-GEN2

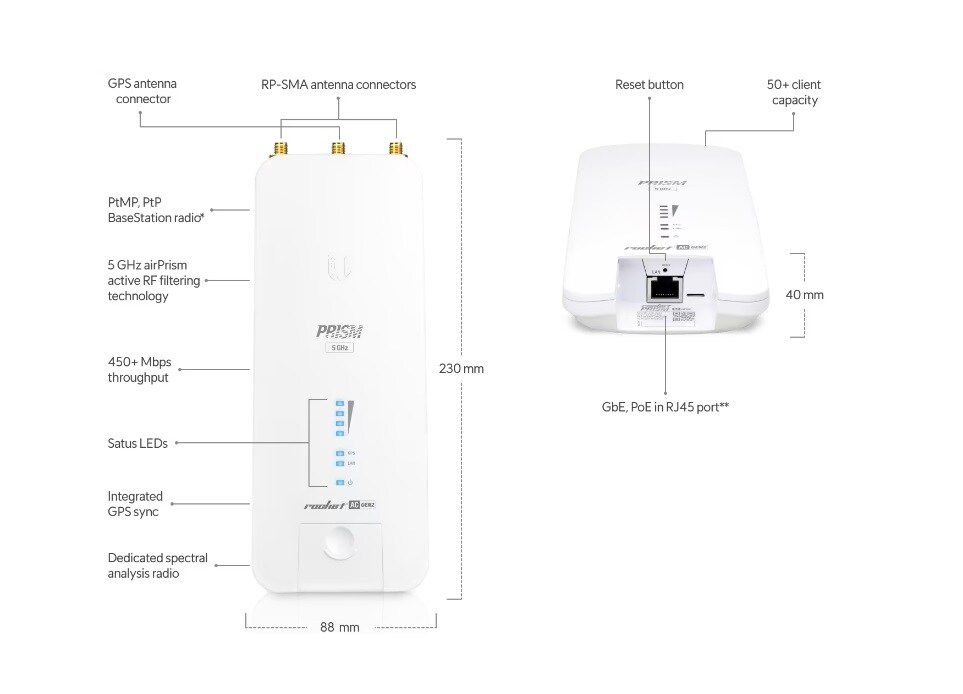

| Dimensions | 88 x 40 x 230 mm (3.5 x 1.6 x 9.1") |
| Weight | 400 g (14.11 oz) |
| Enclosure material | Die-cast aluminum |
| Mounting | Pole mounting (Kit included) |
| Wind loading | 342.5 N at 200 km/h (77 lbf at 125 mph) |
| Hardware | |

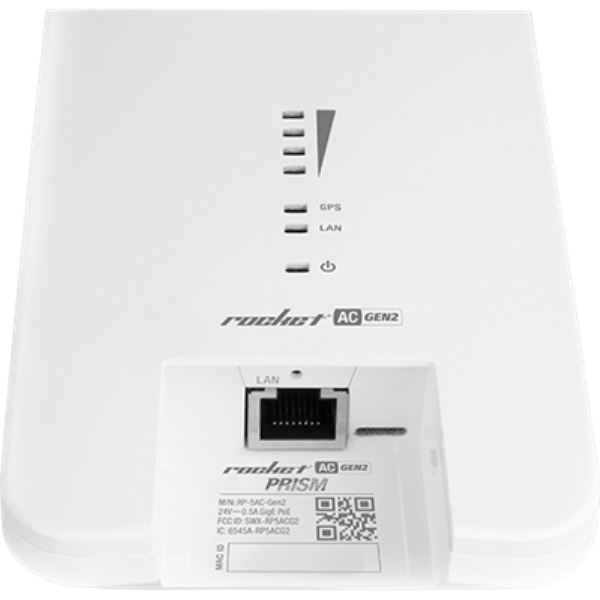

| Networking interface | (1) GbE RJ45 port |
| RF connectors | (2) RP-SMA (Waterproof) (1) GPS (Waterproof) |
| Power method | Passive PoE 2-pair (4, 5+; 7, 8 return) |
| Power supply | 24V, 1A gigabit PoE adapter (Included) |
| Supported voltage range | 18—27V DC |
| Max. power consumption | 9.5W |
| LEDs | (4) Signal strength: software-adjustable to correspond to custom RSSI levels GPS, LAN, power |
| Shock and vibrations | ETSI300-019-1.4 |
| Ambient operating temperature | -40 to 80° C (-40 to 176° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC, RoHS |
| Software | |
| Modes | Access Point, station |
| Channel sizes PtP mode PtMP mode | 10/20/30/40/50/60/80 MHz 10/20/30/40 MHz |
| Services | Web server, SNMP, SSH server, telnet , ping watchdog, DHCP, NAT, bridging, routing |
| Utilities | airMagic, airView, antenna alignment tool, discovery utility, site survey, ping, traceroute, speed test |
| Distance adjustment | Dynamic Ack and Ackless mode |
| Power adjustment | Software adjustable UI or CLI |
| Security | WPA2 AES only |
| QoS | Supports packet level classification WMM and user customer level: High/Medium/Low |
| Statistical reporting | Up time, packet errors, data rates, wireless distance, Ethernet link rate |
| Ubiquiti specific features | 30/50/60 MHz Channels, airMAX ac mode, traffic shaping with burst support, discovery protocol, frequency band offset, Ackless mode |

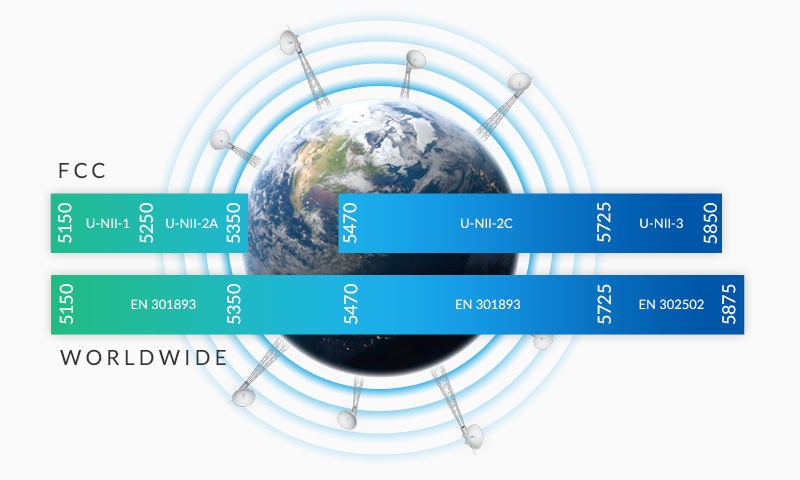

| Operating Frequency (MHz) | |
| Worldwide | 5150–5875 MHz |
| USA U-NII-1: U-NII-2A: U-NII-2C: U-NII-3 | 5150–5250 MHz 5250–5350 MHz 5470–5725 MHz 5725–5850 MHz |
| Management Radio (MHz) | |
| Worldwide | 2412–2472 MHz |
| USA | 2412–2462 MHz |
