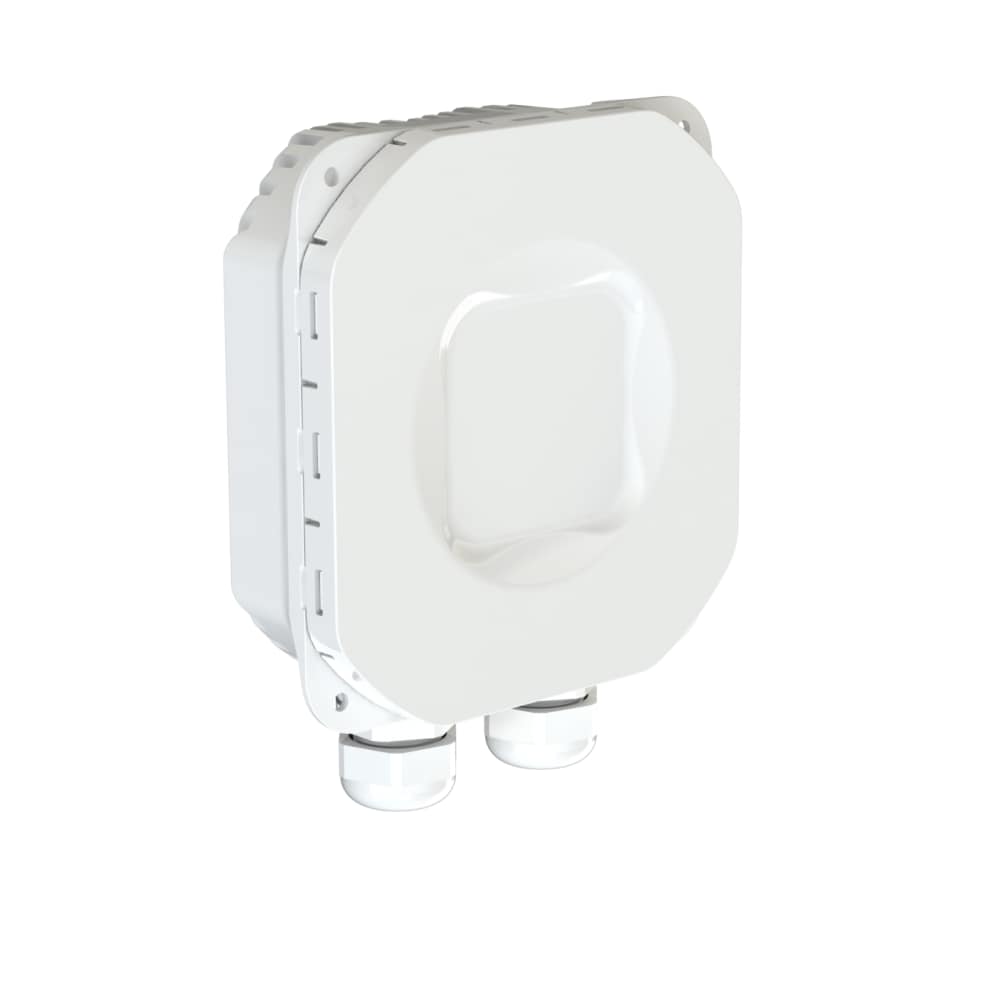

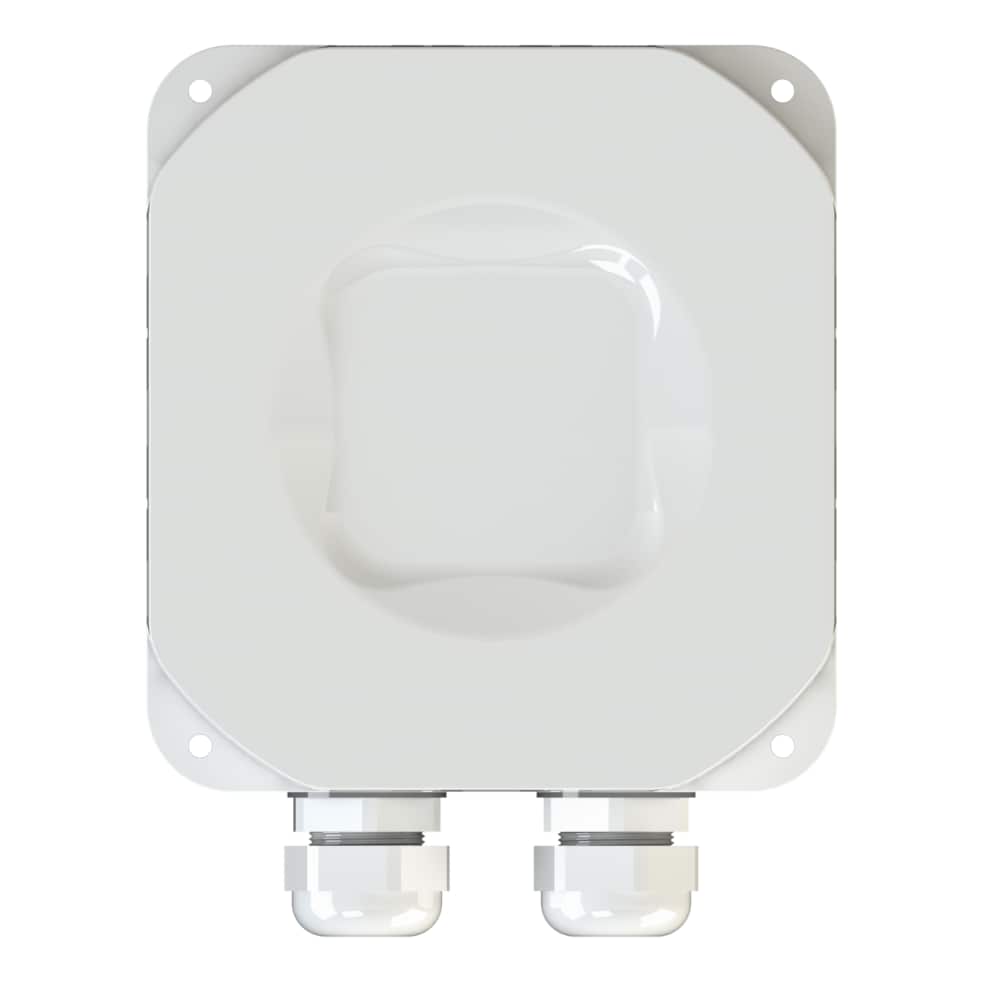

Tachyon Networks TNA-303X Modular 60GHz PTP+PTMP Radio
- SKU: TNA-303X
- Manufacturer: Tachyon Networks
- Data Sheet: Download
Product Information
The TNA-303X features a modular design. The base unit features 90º of beam-forming coverage and can be paired with an antenna kit (sold separately) to convert the radio from a wide beam-steering device to a highly directional one.
| TNA-303X Configurations | Base | AK-S-45 | AK-S-90 | AK-100 | AK-150 | AK-300 |
|---|---|---|---|---|---|---|
| Beam steering | 90° x 50° | 45° x 10° | 90° x 10° | 6° x 6° | 4° x 4° | 2° x 2° |
| Antenna Gain | 16dBi | 30dBi | 30dBi | 33dBi | 37dBi | 42dBi |
* Max distance using channels 5 or 6, with some rain. Please refer to the link calculator for more accurate rain region results.
The modular design and small form factor of the TNA-303x simplify inventory and installation and are fully compatible with the existing TNA-301 and TNA-302 models. The TNA-303x has a 1x 2.5G port (active PoE in) and a 1x 1G port with PoE out. All TNA models support the full 60GHz band, including channels 5 and 6 (57-71 GHz), enabling longer links and increased co-location opportunities. The 1G ethernet port can be used as an "any"-band failover option or to power accessories such as surveillance cameras.
Product Applications
- Sub-7GHz offload
- Deploying fiber-like service
- High-speed point-to-point
- High bandwidth video surveillance
Product Features
- Fiber-like speeds using the 60GHz band
- Upper-band support
- Modular design simplifies inventory and installation
- Best overall affordability
Product Includes
- 1x Tachyon Networks TNA-303x base model
- 1x RJ45 plug
- 1x 48V 0.5A PoE adapter and power cable
- 1x Quick start guide insert
Specifications
Specifications TNA-303X
| TNA-303X CONFIGURATIONS | BASE MODEL |
| Recommended PTMP Distance (TNA-301 as AP) | 300m |
| Beam-forming range | 90º x 50º |
| Antenna gain | 16dBi |
| 60 GHZ SPECS | |
| Operating modes | Station, Access Point (software configurable). |
| Max STA count per AP | Up to 32 stations |
| Max EIRP (base/100mm/250mm) | 38dBm / 55dBm / 60dBm depending on antenna kit and local regulations |
| Link encryption | AES 256 + GCMP |
| Frequency & supported channels | Full band: 57-71 GHz: channels: 1-6 Half channels: 1-11 (see notes on support site about half channel support) |
| Channel size options | Full (2 GHz), half (1 GHz) (see notes on support site about half channel support) |
| Station scheduling | TDMA: dynamic scheduling mechanism |
| TNA-303X Base Antenna | 16 dBi 3D beamforming phased array with +/- 45° azimuth (90° total) and +/- 25° elevation (50° total). Beam size is: 30° azimuth x 30° elevation. Vertical polarization. |
| 100mm Antenna Kit | 33dBi directional antenna with 3º beam @3dB and 5º beam @6dB |
| 200mm Antenna Kit | 38dBi directional antenna with 1.5º beam @3dB and 2.5º beam @6dB |
| Duplexing | TDD |
| SOFTWARE SPECS | |
| Max MTU size | 7900 b |
| Networking mode | Transparent bridge |
| VLAN capabilities | Data VLAN (in station mode) & management VLAN |
| Other features | Traffic shaping (station mode), DHCP snooping, device discovery, speedtest, and more |
| IPv4/IPv6 support | Both are supported |
| Management | Web interface, SNMP v2 & v3, SNMP traps, & RESTful API (SSH available upon request) |
| HARDWARE SPECS | |
| Interfaces | 1 x 2.5G ethernet, 1 x 1G ethernet |

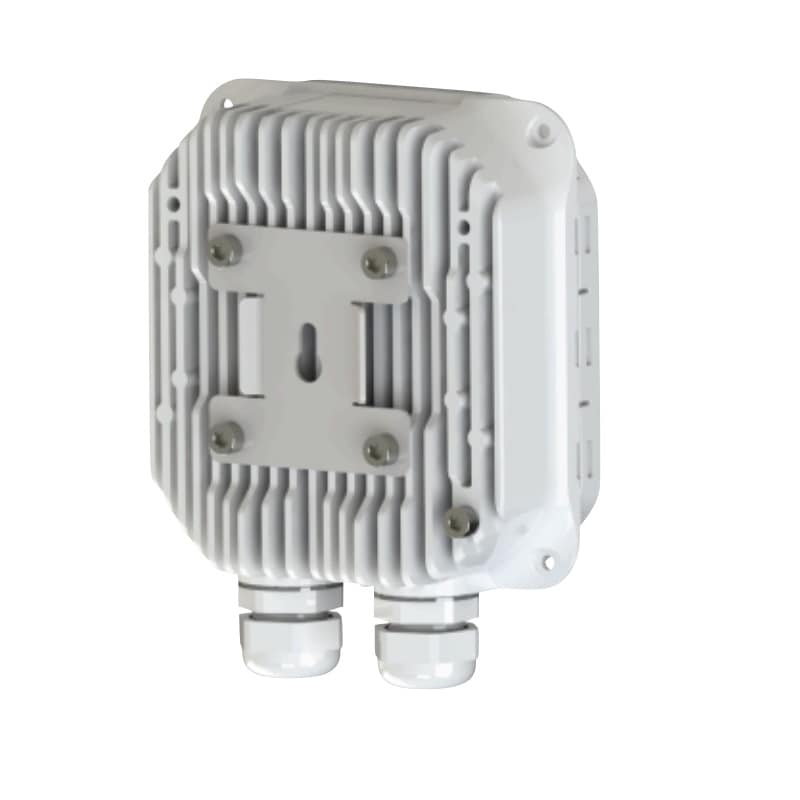

| Mount | Pole or wall mountable via mounting backplate |
| PoE input power | Active PoE 38-57VDC (passive injector included) |
| DC input power | 24-57VDC |
| Output power | On 1G port: passive PoE out w/max .5A |
| Max power consumption | 17W w/o PoE out in use, and 41W with it in use |
| Certifications | FCC: Z9W-TNA-303X; IC: 11468A-TNA303X |
| Operating temperature | -30°C - 55°C |
| Base Unit dimensions & weight | Height: 5" / 13cm, Width: 5" / 12 cm, Depth: 2” / 5.5cm, 15 oz / 425 g |
| LEDs | Ethernet link status, wireless status, signal level, & power |
