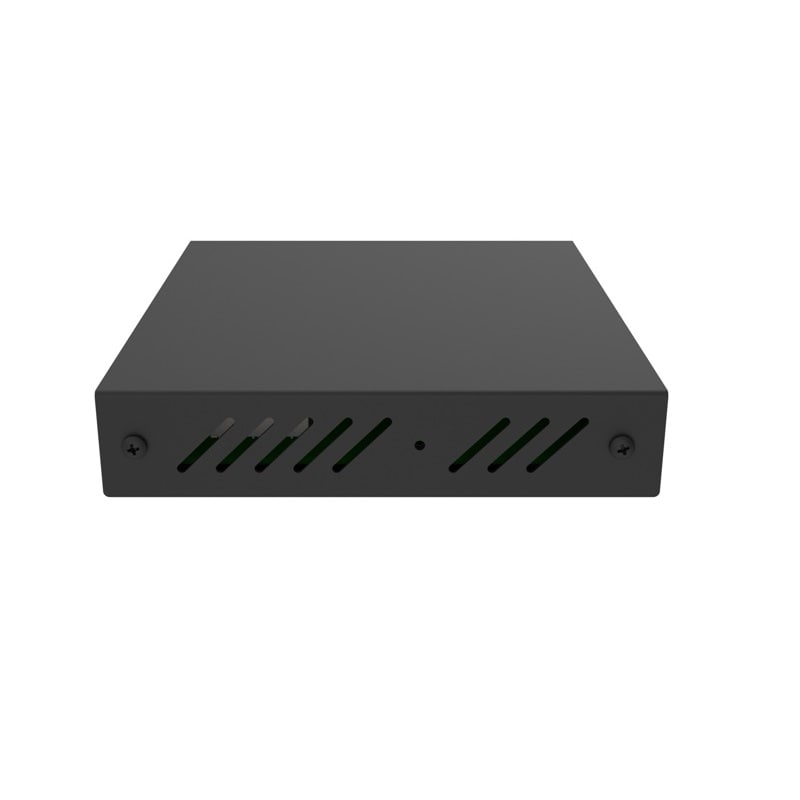

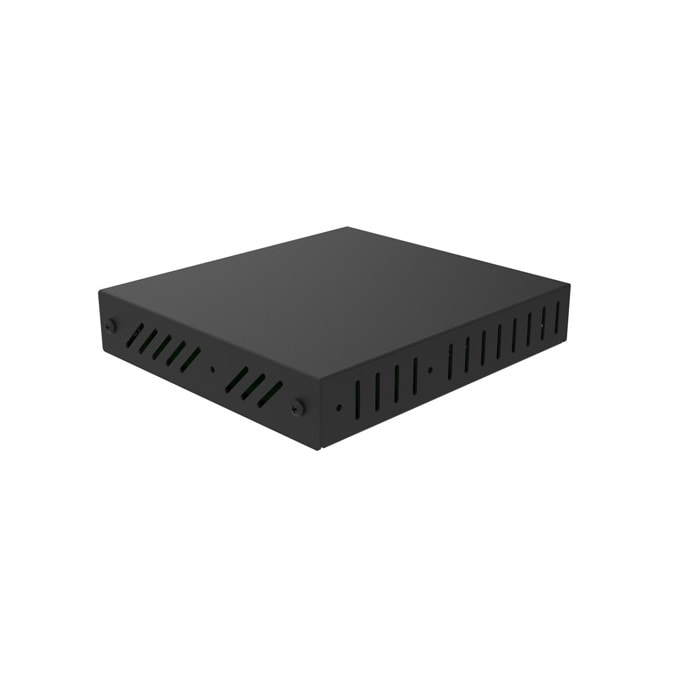

Tachyon Networks Industrial L2 Distribution Switch
- SKU: TNS-100
$199.00
- Manufacturer: Tachyon Networks
- Data Sheet: Download
Product Information
The Tachyon Networks TNS-100 is an industrial temperature-rated, VLAN-aware, Layer 2 data and power distribution switch. The TNS-100 features an optional mounting adapter for applications requiring DIN rail installation.

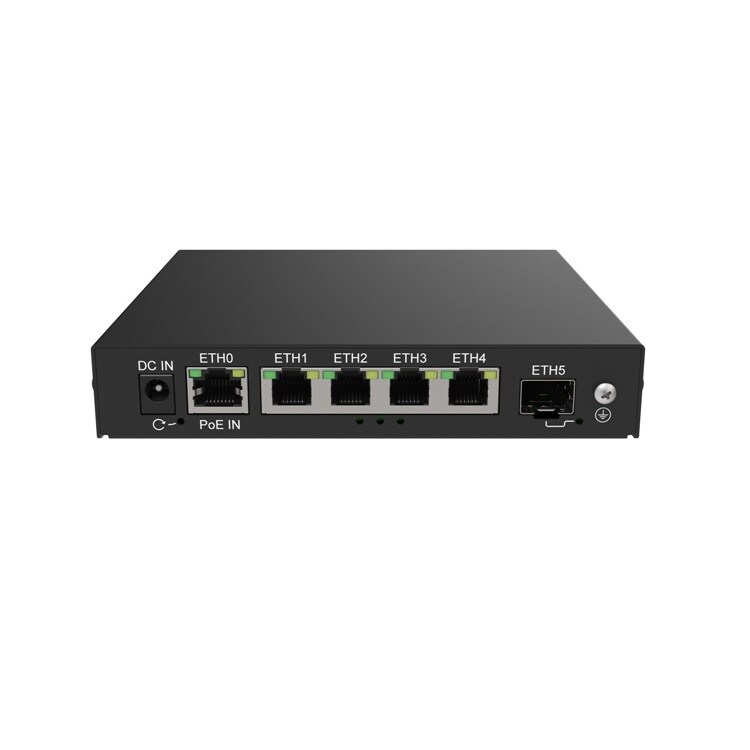

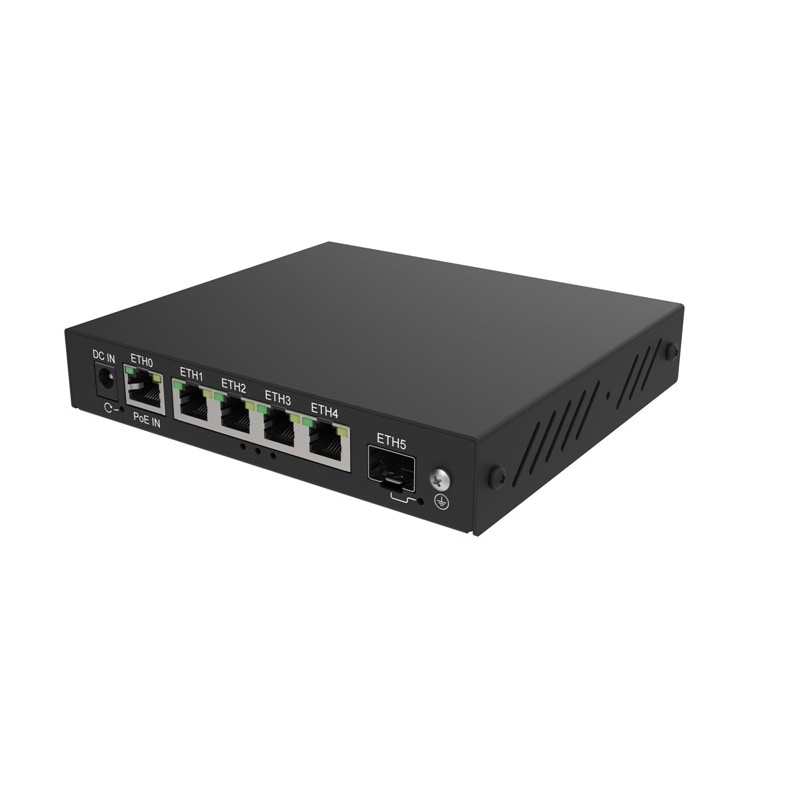

The Tachyon Networks TNS-100 has a total of 6 ports:
- 4x 2.5Gbps NBASE-T ports with software-controlled PoE out (max of .8A per port)
- 1x 2.5Gbps NBASE-T port with PoE in (max of 1A)
- 1x 10Gbps SFP+ port
The PoE in port can be used for powering the device as well as powering devices on the PoE out ports, and for applications requiring more than 1A of power, there is a DC barrel jack that can be used with an optional power adapter to supply up to 4A of power.
Management of the TNS-100 is provided via a web interface, SNMP, or RESTful API to give flexible options for different applications.
Management and Data VLANs are also supported, as well as VLAN trunking.
Product Includes- 1x TNS-100 6-port 2.5G PoE Switch
- 1x DIN rail mount
- 1x Quick start guide insert
- 1x Barrel jack to 2-wire DC adapter
Specifications
Specifications
| HARDWARE | |
| Weight | 2 lbs |
| PoE In Ports | 1x 2.5Gbps w/ PoE in (48V/1A max) |
| PoE Out Ports | 4x 2.5Gbps w/ software controlled passive PoE out (48V/.8A per port max) |
| SFP+ Ports | 1x 10Gbps SFP+ port |
| DC Input | 1x DC 2.5/5.5mm barrel jack (24-48V/4A max) |
| Mechanical | 5.24" x 6” x 1”, 1.57lb (133mm x 152mm x 27mm, 710g) |
| Mounting | Desktop or DIN Rail (mount included) |
| Environmental | -30ºC to 60ºC (-22ºF to 140ºF) |
| Power Input | 6W without attachments, 160W total with attachments and PoE out on all ports |
| Certifications | FCC / IC / CE |
| SOFTWARE & MISC | |
| Management | Web UI, SNMP (v2c and v3 with traps), RESTful API |
| VLANs | Management VLAN, Data VLAN supported along with VLAN trunking |
| Tools | Traceroute, Ping, Ping6, & Device Discovery |
| PoE | Software configurable Passive PoE-out with power cycle feature |
| Networking | IPv4 (static and DHCP) and IPv6 management IPs supported |
| Services | NTP, LLDP, CDP, MNDP, Syslog (local / remote), Ping Watchdog |
| Boot banks | Dual boot banks |
