Ubiquiti UISP EdgePoint S16 L2 Switch
- SKU: EP-S16
$349.00 $579.00
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
Application-specific WISP control point with (16) Gigabit RJ45 ports and (2) SFP ports.
Specifications
Specifications EP-S16
| Dimensions | Without wall-mount: 326.6 x 382.7 x 88.8 mm (12.9 x 15.1 x 3.5") With wall-mount: 326.6 x 382.7 x 105.5 mm (12.9 x 15.1 x 4.2") |
| Weight | Without wall-mount: 3.4 kg (7.5 lb) With wall-mount: 3.8 kg (8.4 lb) |
| Enclosure material | Diecast aluminum alloy, UV-resistant polycarbonate |

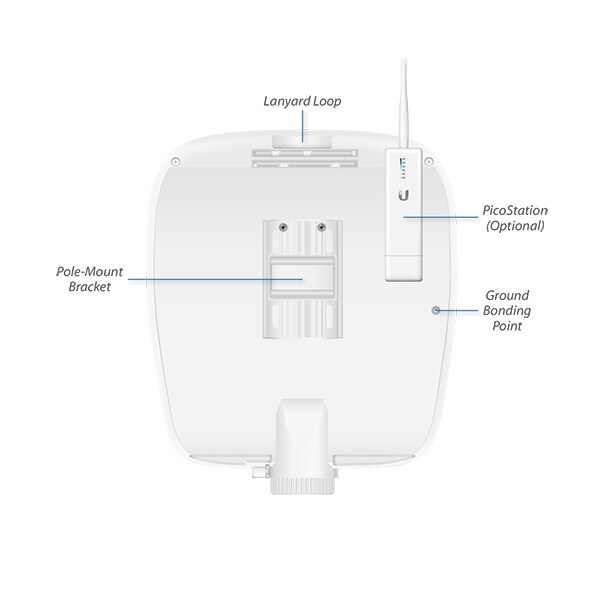

| Mount | Pole/wall mount |
| Wind loading | 153 N at 200 km/h (34 lbf at 125 mph) |
| Wind survivability | 200 km/h (125 mph) |
| Hardware | |

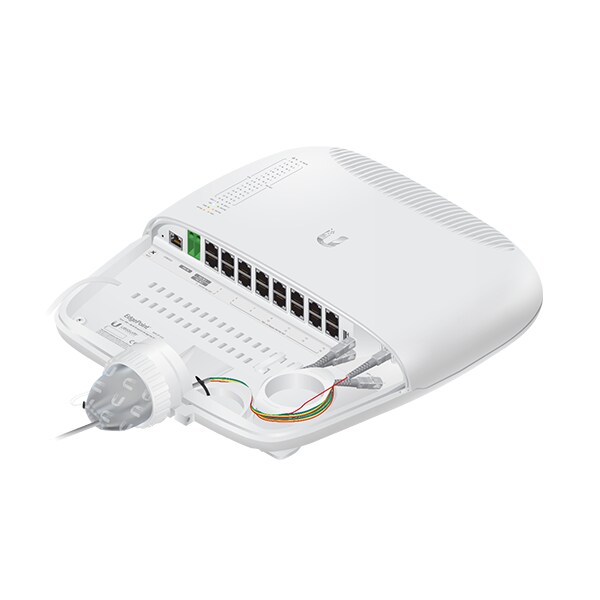

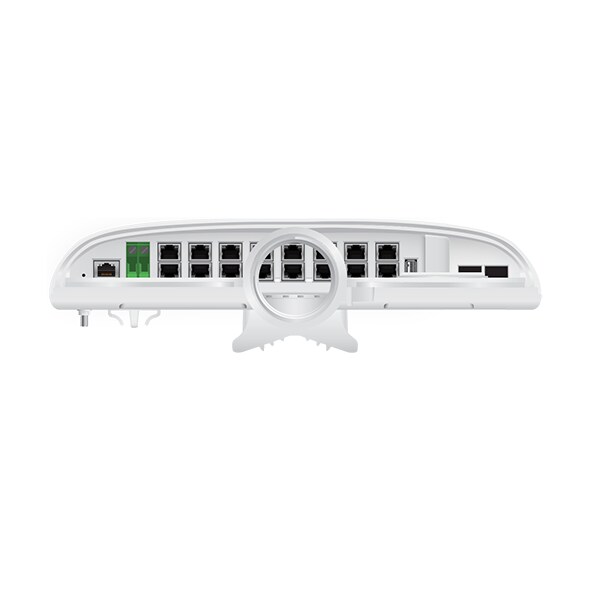

| Networking interface | (1) RJ45 serial port (16) 10/100/1000 RJ45 ports (2) 1/10 Gbps SFP+ ports |
| Power method* | (1) DC terminal block 54V DC, 6A input |
| Power supply | Min. 54V / 0.8A (Excludes PoE output) |
| Passive PoE input* | (2) 54V / 1.5A, 4-pair (+1, 2, 4, 5; - 3, 6, 7, 8) passive PoE, ports 1 and 2 |
| Passive PoE output | (4) 54V or 24V /1.4A, 4-pair (+1, 2, 4, 5; - 3, 6, 7, 8) passive PoE, ports 1 to 4 (12) PoE/PoE+ or 24V/0.7A, 2-pair (+ 4, 5; - 7, 8) passive PoE, ports 5 to 16 |
| Power monitoring | (1) DC terminal block, input power (2) RJ45, ports 1 and 2, PoE input or output power (14) RJ45, ports 3 to 16, PoE output power |
| Supported voltage range | 42–56V DC (-48V is NOT supported) |
| Max. power consumption | 40W (Excludes PoE output) |
| Button | Factory reset |
| LEDs | System: power RJ45 ports: speed/link/activity, PoE SFP ports: speed/link/activity |
| Ambient operating temperature | -40 to 65° C (-40 to 149° F) |
| Ambient operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
