Ubiquiti UISP airMAX NanoBeam M5 Bridge (US)
- SKU: NBE-M5-16-US
$67.00
Product Information
High-performance 5GHz, 16dBi bridge.
Specifications
Specifications NBE-M5-16
| Model | NBE-M5-16 |
| Processor Specs | Atheros MIPS 74Kc, 560 MHz |
| Memory | 64 MB DDR2, 8 MB Flash |
| Networking Interface | (1) 10/100 Ethernet Port |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Dimensions | 140 x 140 x 54 mm (5.51 x 5.51 x 2.13") |
| Weight | 0.320 kg (0.71 lb) |
| Power Supply | 24V, 0.5A PoE |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Max. Power Consumption | 6W |
| Gain | 16 dBi |
| Wind Loading | 21.4 N @ 200 km/h (4.8 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |

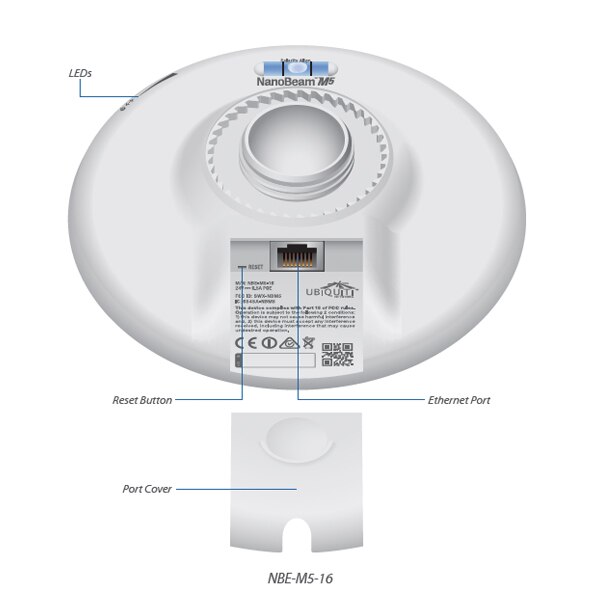

| LEDs | (1) Power, (1) LAN, (4) WLAN |
| Signal Strength LEDs | Software-Adjustable to Correspond to Custom RSSI Levels |
| Channel Sizes | 5/8/10/20/30/40 MHz |
| Polarization | Dual Linear |
| Enclosure | Outdoor UV Stabilized Plastic |
| Mounting | Pole-Mount (Kit Included), Wall-Mount |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Schock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
