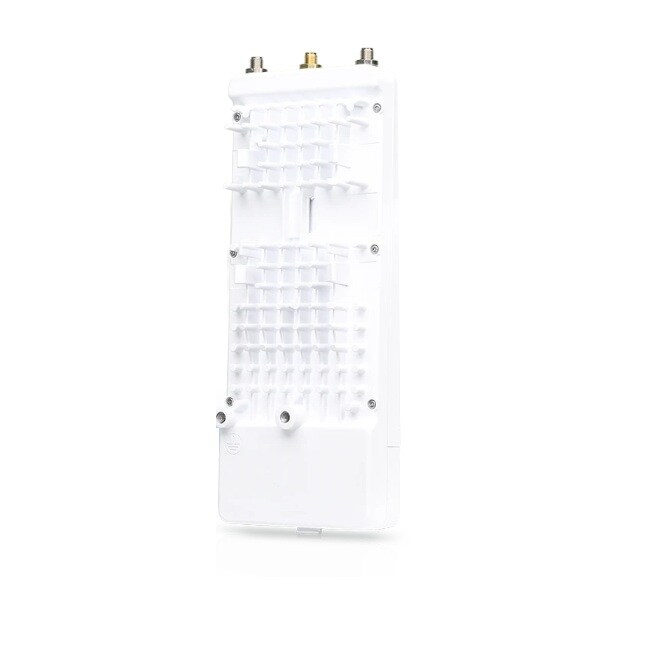

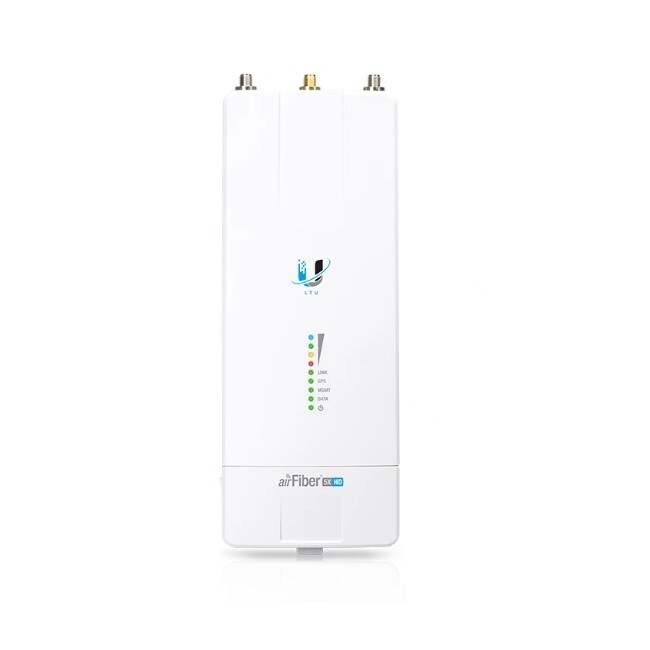

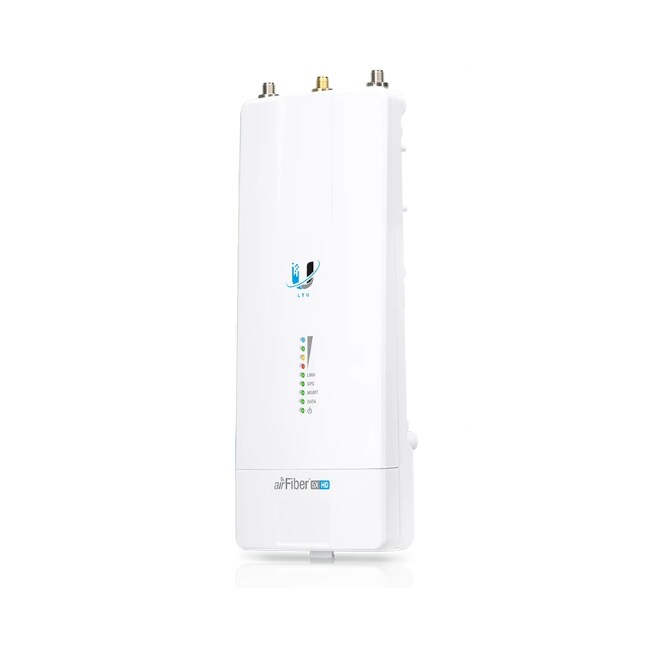

Ubiquiti UISP airFiber 5XHD Radio (US)
- SKU: AF-5XHD-US
$429.00
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
True 1+ Gbps spectrally efficient, noise resilient PTP technology specifically designed for WISP’s.
Specifications
Specifications AF-5XHD
| Dimensions | 224 x 82 x 48 mm (8.82 x 3.23 x 1.89") |
| Weight | 0.35 kg (12.3 oz) |
| RF connectors | (2) RP-SMA weatherproof (CH0, CH1) (1) SMA weatherproof (GPS) |
| GPS antenna | External, magnetic base |
| Power supply | 24 V, 1 A Gigabit PoE adapter (included) |
| Power method | Passive Power over Ethernet; pins 1, 2, 4, 5 (+) and pins 7, 8, 3, 6 (-) |
| Max. power consumption | 6 - 12 W |
| Supported voltage range | 24 - 50 V DC |
| Mounting | airFiber X mount (Rocket mount compatible) GPS pole mount (included) |
| Operating temperature | -40°C to 55°C (-40°F to 131°F) |
| IP rating | IP67 |
| Certifications | CE, FCC, IC |

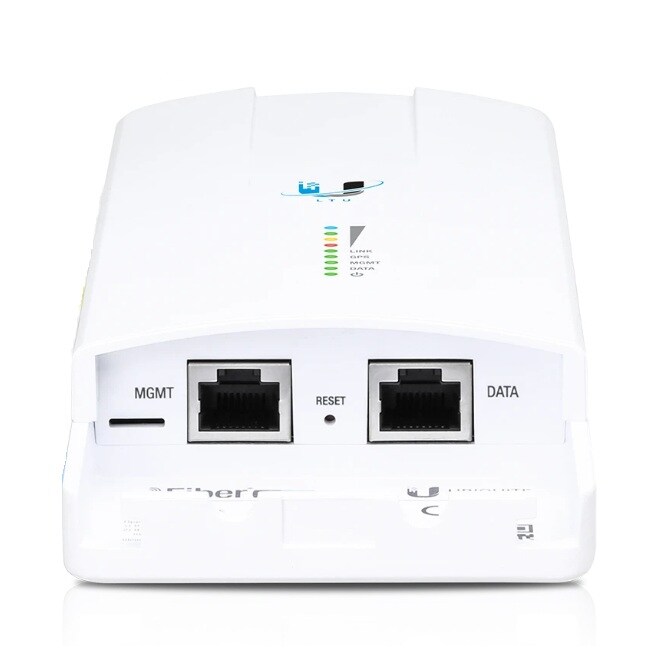

| Networking interface | Data port: (1) 10/100/1000 Ethernet port Management port: (1) 10/100/1000 Ethernet port |
| System | |
| Processor | airFiber LTU IC |
| Maximum throughput | 1 Gbps |
| Maximum range | 100 km |
| Packets per second | 2+ million |
| Encryption | WPA2-PSK (AES) |
| OS | airFiber-airOS 8 |
| Wireless modes | AP/CPE |
| Radio | |
| Frequency range | 4.8 - 6.2 GHz (dependent on regulatory region) |
| Max. conducted TX power | 29 dBm (dependent on regulatory region) |
| Frequency accuracy | <2 ppm |
| Channel bandwidth | 10/20/30/40/50/60/80/100 MHz selectable Programmable uplink and downlink duty cycles |
