Ubiquiti Networks Enterprise Indoor/Outdoor Access Point with 10-Stream WiFi 7 Performance

(0)No Reviews yet
  • SKU: E7-Campus-US
$799.00
  • Manufacturer: Ubiquiti Networks
  • Installation Guide: Download

23 In Stock

23 in stock
Illinois - West Chicago
23 In stock

Product Information

Ubiquiti Enterprise Indoor/Outdoor Access Point with 10-Stream WiFi 7 Performance

Enterprise-grade indoor/outdoor access point with ‎ 10-stream‎ ‎‎ WiFi 7 performance, PRISM™ active RF filtering technology, and integrated directional antennas.

Features:

  • WiFi 7 with 6 GHz support
  • 10 spatial streams
  • Real-time spectral analysis for enhanced channel selection
  • High selectivity PRISM™ RF filtering technology
  • Dedicated spectral analyzer radio
  • Directional high gain antenna array
  • Long-range 6 GHz performance with AFC*
  • 465 m² (5,000 ft²) coverage
  • 1,000+ connected devices
  • (1) 10 GbE RJ45 port and (1) GbE RJ45 port for power & data redundancy

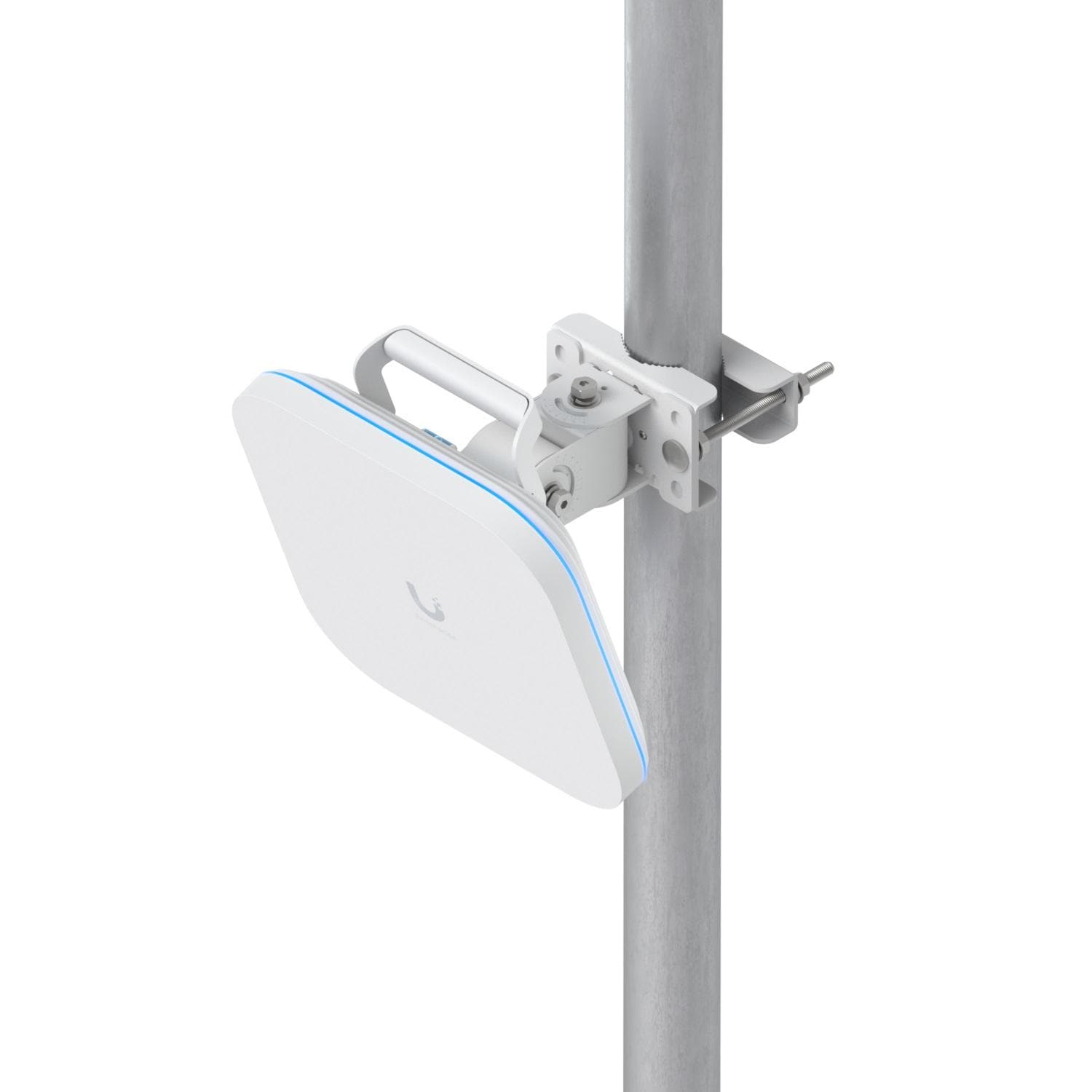

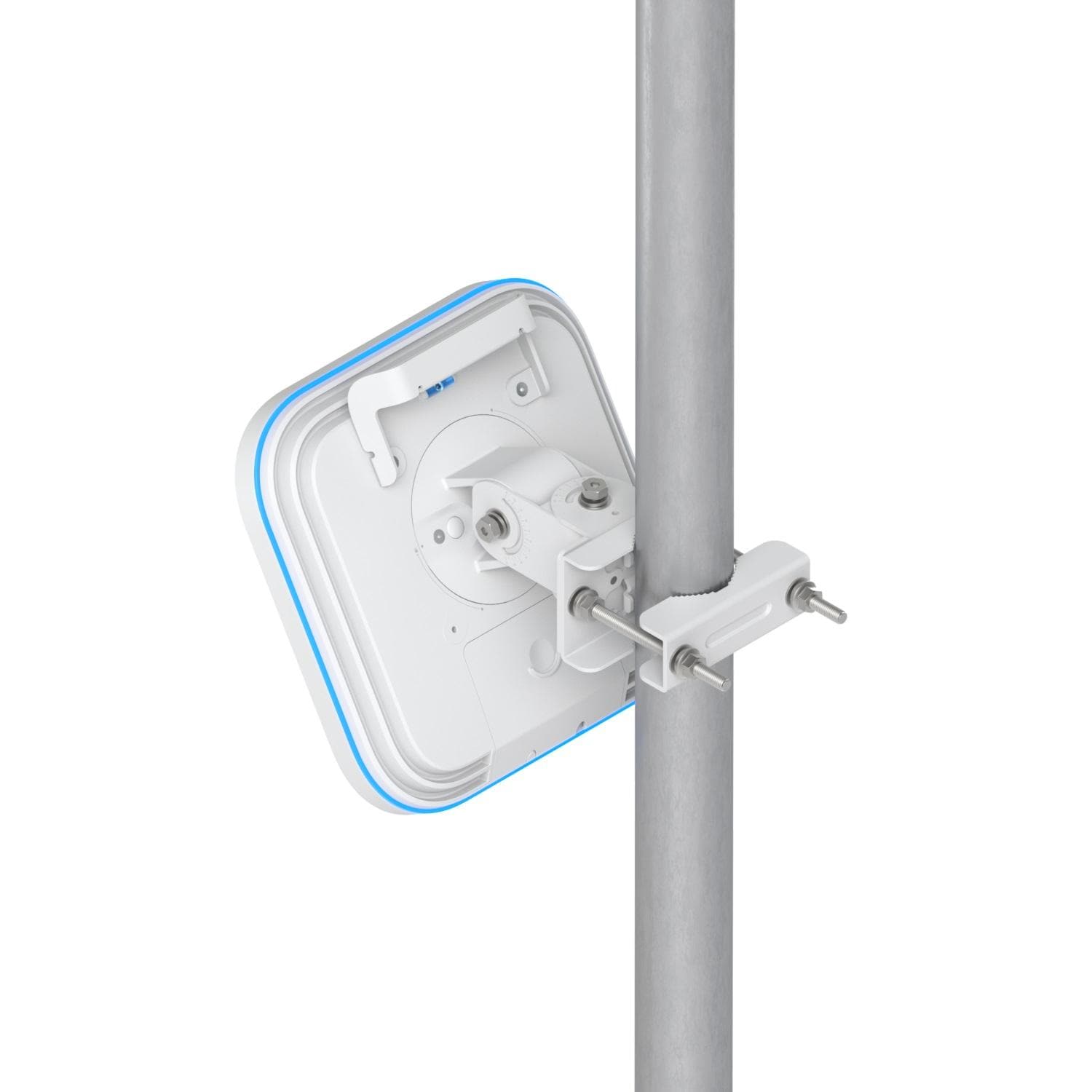

  • Versatile articulating wall/pole mount for precise position (included), VESA 100x100 compatibility
  • Powered using PoE++

Specifications

Specifications E7-Campus-US

DimensionsDevice: 250 x 250 x 45.5 mm (9.8 x 9.8 x 1.8")
Articulating mount: Ø104 x 149.4 (Ø4.1 x 5.9")
WeightDevice: 2.2 kg (4.9 lb)
Articulating mount: 0.9 kg (2 lb)
Enclosure materialUV-stabilized polycarbonate, aluminum alloy
Mount materialStainless steel, aluminum alloy
Pole mount diameter1–2.5" (25–63.5 mm) on pipe outer diameter
Wind survivability164.75 N at 200 km/h (37 lbf at 125 mph)
WeatherproofingIPX6
IP67 with Waterproof Door Kit (Included)
Hardware
Networking interface(1) 10 GbE RJ45 port
(1) 1 GbE RJ45 port
Management interfaceEthernet
Power methodPoE++
Power supplyUniFi PoE switch
Supported voltage range42.5—57V DC
Max. power consumption44W
Max. TX power
2.4 GHz
5 GHz
6 GHz
23 dBm
30 dBm
30 dBm (36 dBm EIRP)*
*With 6 GHz Extended Range mode. Available in FCC/IC region only.
MIMO
2.4 GHz
5 GHz
6 GHz

2 x 2 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
4 x 4 (DL/UL MU-MIMO)
Max. data rate
2.4 GHz
5 GHz
6 GHz

688 Mbps (BW40)
8.6 Gbps (BW240)
11.5 Gbps (BW320)
Antenna gain
2.4 GHz
5 GHz
6 GHz

9 dBi
12 dBi
12 dBi
Antenna beamwidth
2.4 GHz
5 GHz
6 GHz

90° x 80°
100° x 55°
90° x 50°
AntennaInternal with directional patterns
LEDsR/G/B
ButtonFactory reset

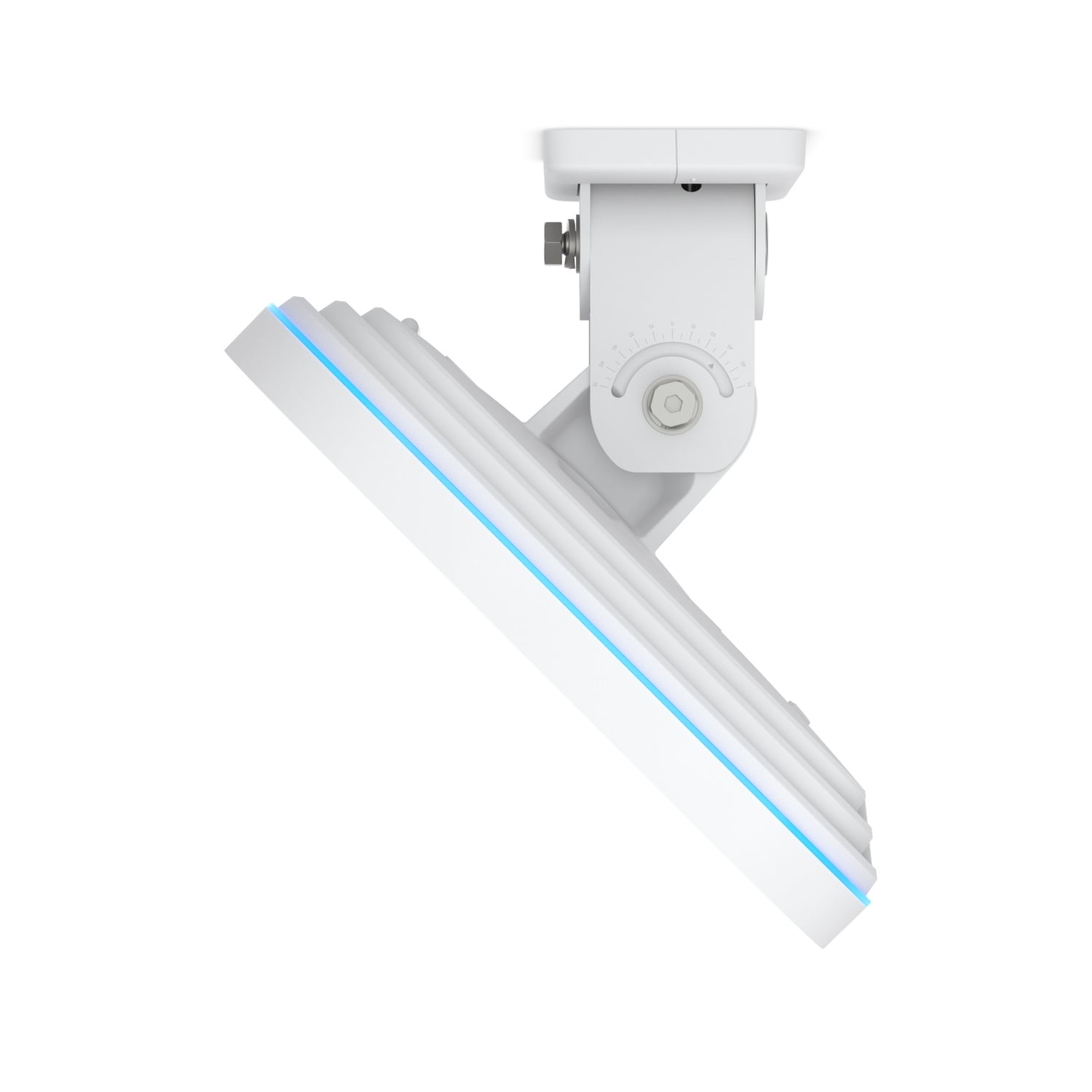

MountingArticulating mount for wall, pole or ceiling mounting (Included)
Ambient operating temperature-30 to 60° C (-22 to 140° F)
Ambient operating humidity5 to 95% noncondensing
CertificationsFCC, IC
Software
WiFi standards802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7)
Wireless securityWPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)
BSSID8 per radio
VLAN802.1Q
Advanced QoSPer-user rate limiting
Guest traffic isolationSupported
Concurrent clients1,000+
Ubiquiti specific featuresHigh selectivity PRISM™ RF filtering technology
Dedicated spectral analyzer radio
Supported Data Rates
802.11a6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b1, 2, 5.5, 11 Mbps
802.11g6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
802.11ac6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11ax (WiFi 6)7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11be (WiFi 7)7.3 Mbps to 11.5 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240/320)
