Ubiquiti UniFi Pro Max 24 PoE L3 Etherlighting Switch

(0)No Reviews yet
  • SKU: USW-Pro-Max-24-POE
$799.00
  • Manufacturer: Ubiquiti Networks
  • Spec Sheet: Download
  • Installation Guide: Download

42 In Stock

42 in stock
College Station - TX
28 In stock
Mississippi
14 In stock

Product Information

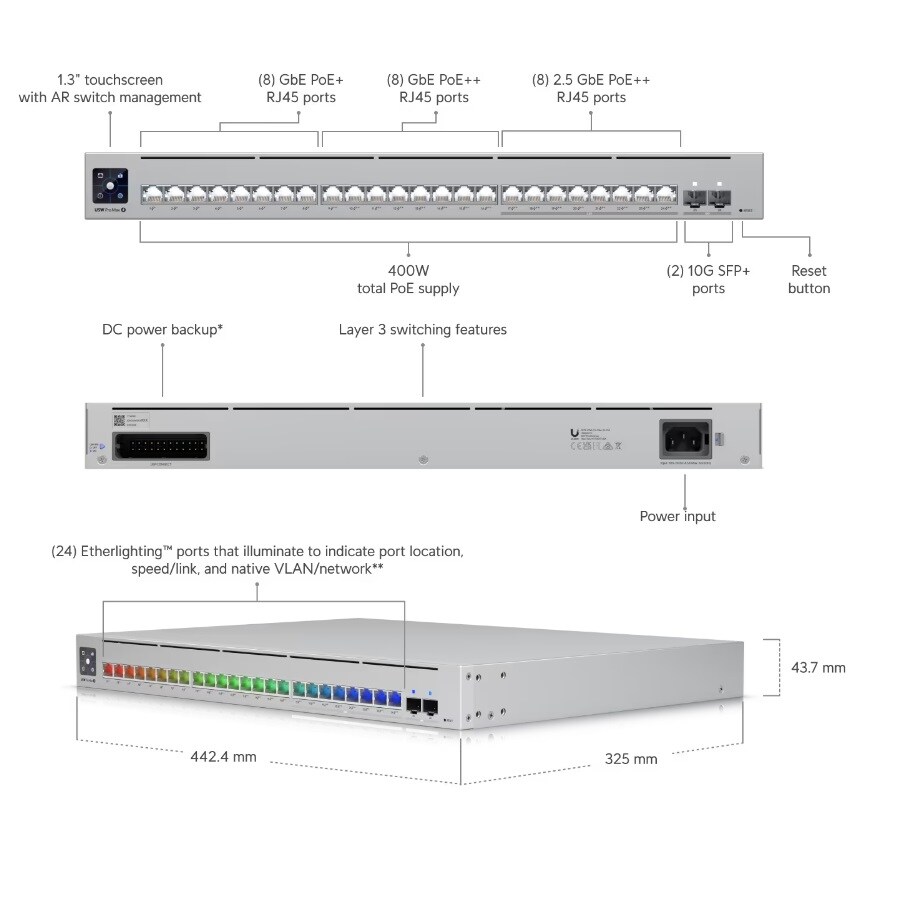

Ubiquiti Switches - A 24-port, Layer 3 Etherlighting switch capable of high-power PoE++ output. Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network* (8) 2.5 GbE PoE++ ports (16) GbE ports including (8) PoE+ and (8) PoE++ (2) 10G SFP+ ports DC power backup ready 400W total PoE availability

Specifications

Specifications

Dimensions442.4 x 325 x 43.7 mm (17.4 x 12.8 x 1.7")
WeightWithout mounting brackets: 5.1 kg (11.3 lb)
With mounting brackets: 5.2 kg (11.5 lb)
Enclosure materialSGCC steel
Hardware
Management interfaceEthernet In-Band
Networking interface(16) GbE RJ45 ports
(8) 1/2.5 GbE RJ45 ports
(2) 10G SFP+ ports
PoE interface(8) PoE/PoE+ (Pins 1, 2+; 3, 6-)
(16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-)
Total non-blocking throughput56 Gbps
Switching capacity112 Gbps
Power methodUniversal input, 100—240V AC, 50/60 Hz USP RPS DC input
Power supplyAC/DC, internal, 450W
Supported voltage range100—240V AC
Max. power consumption50W (Excluding PoE output)
Total available PoE400W
Max. PoE wattage per port by PSEPoE: 15.4W
PoE+: 30W
PoE++: 60W
Voltage range PoE modePoE: 44—57V
PoE+: 50—57V
LCM display(1) 1.3" touchscreen
ButtonFactory reset
Operating temperature-5 to 40° C (23 to 104° F)
Operating humidity10 to 90% noncondensing
CertificationsCE, FCC, IC
Etherlighting™
EthernetLocating
Speed/link
Native VLAN/network
SFP+Locating
Speed/link
Native VLAN/network
LEDs
SystemStatus
RPSStatus
Application Requirements
UniFi NetworkVersion 8.0.24 and later
