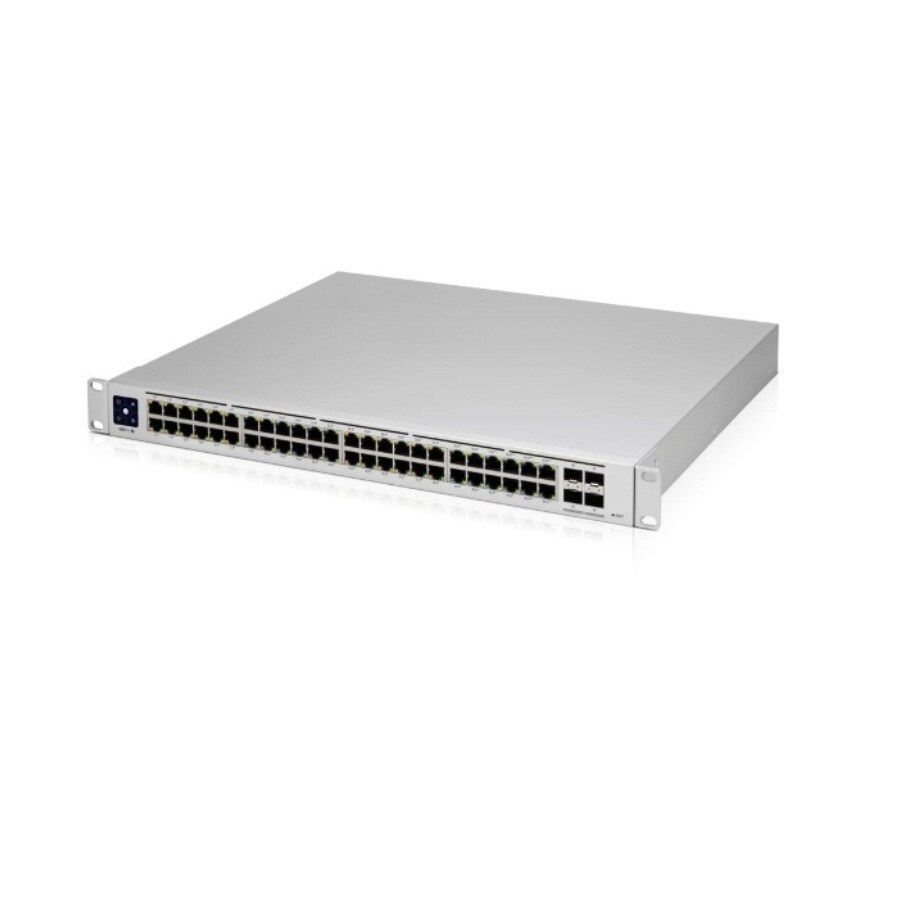

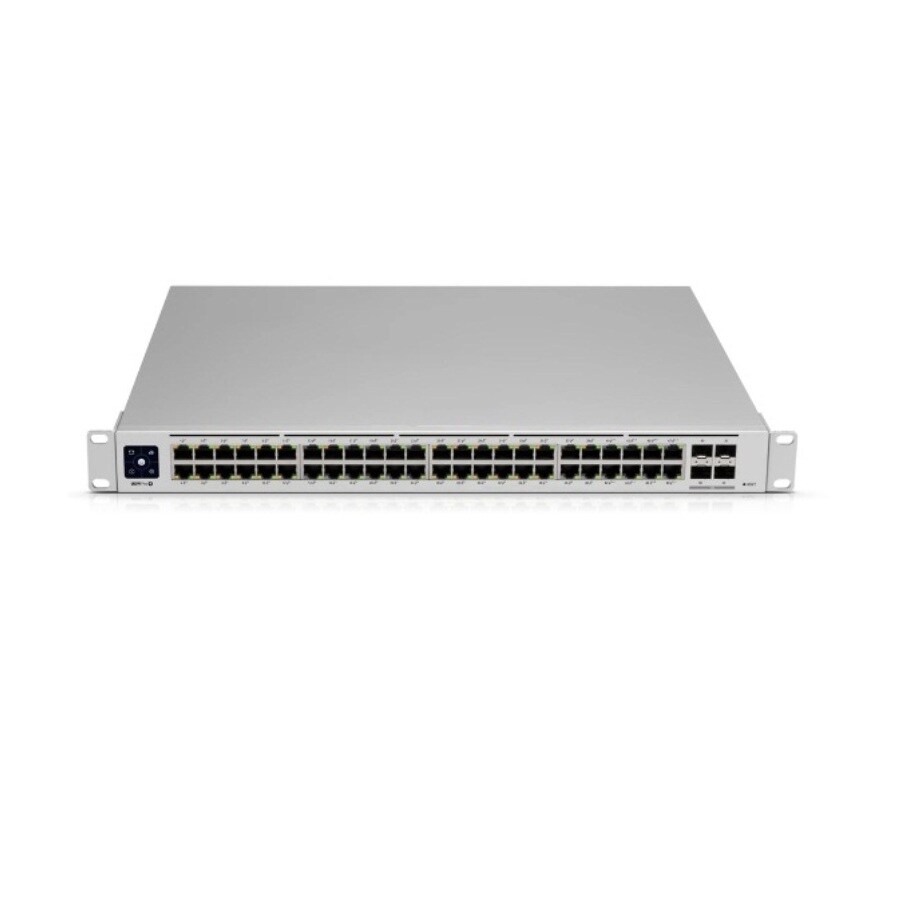

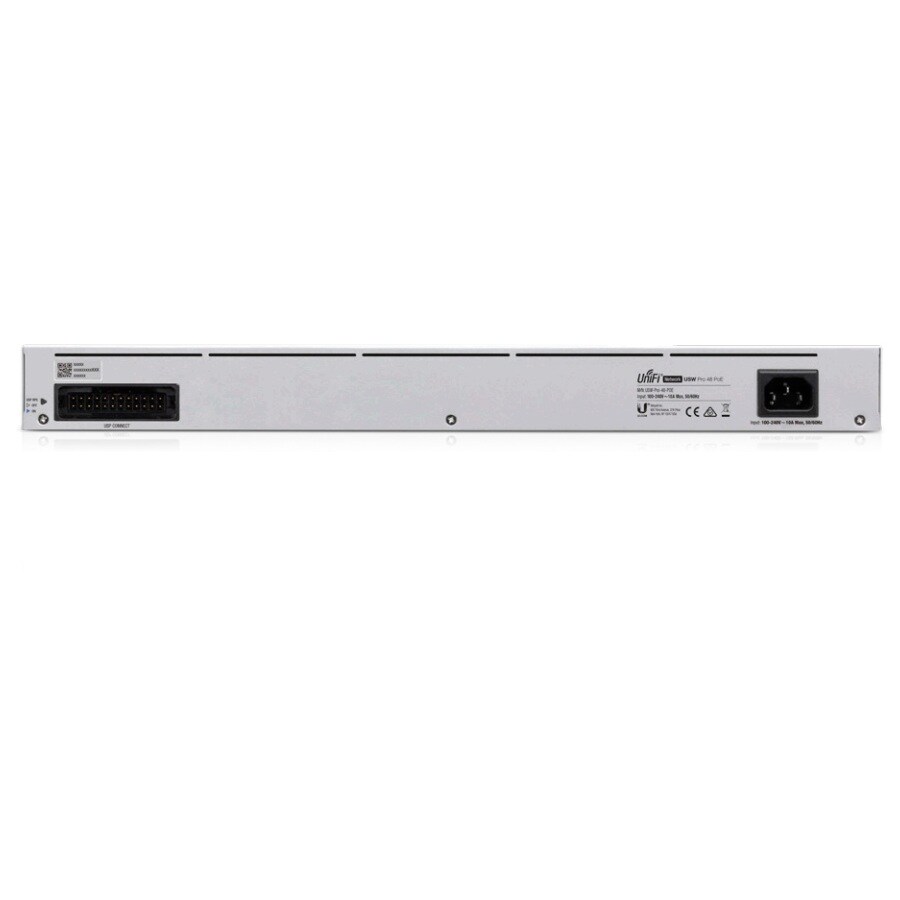

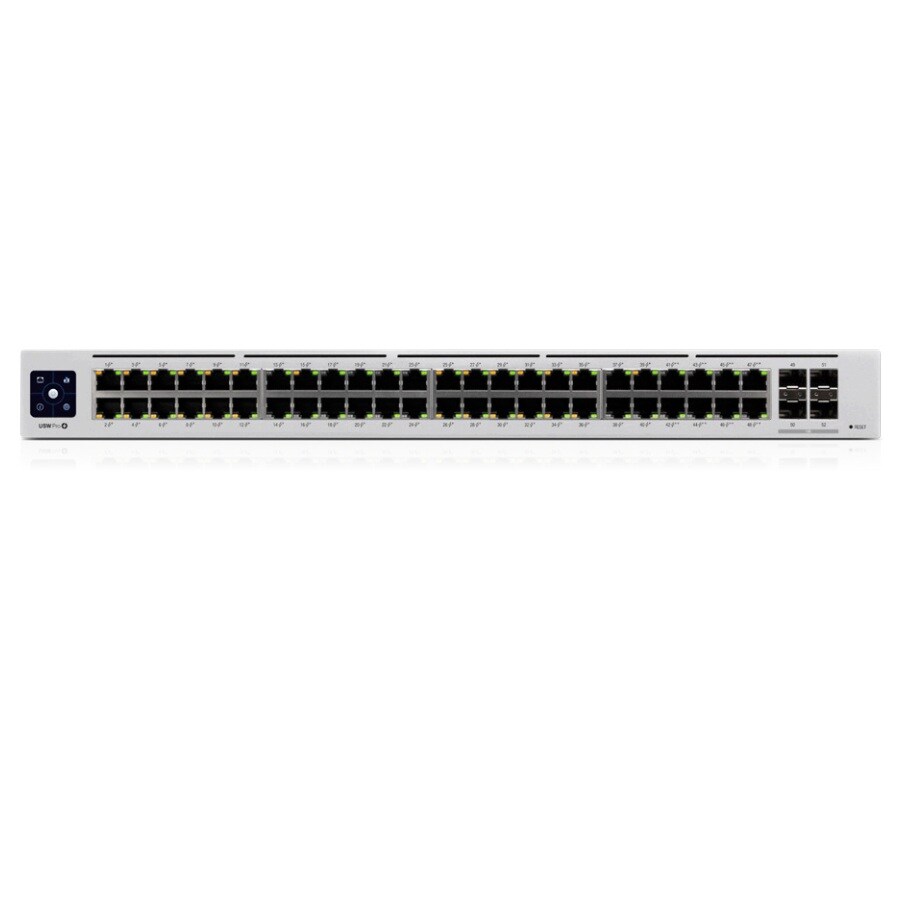

Ubiquiti UniFi Pro 48-Port PoE++ L3 Switch
- SKU: USW-Pro-48-POE
$1,099.00
+ $86.00 Surcharge
Product Information
Expand and power your network with the UniFi Pro 48-Port PoE Switch, part of the Ubiquiti UniFi Enterprise System. This is an auto-sensing IEEE 802.3af/at/bt PoE Gigabit switch with Layer 3 features and 4-SFP+ ports for 10G links.
Product Features- Layer 3 features including inter-VLAN routing, static routing, and DHCP server functionality
- Integrated fans for near-silent cooling
- Fiber connectivity with SFP+ ports
- 802.3bt PoE++
- Power supply redundancy
Product Specifications
- (40) Gigabit RJ45 ports with 802.3af/at
- (8) Gigabit RJ45 ports with 802.3bt
- (4) 1/10G SFP+ ports
- 1U rackmountable (hardware included)
Specifications
Specifications USW-Pro-48-POE
| Dimensions | 442.4 x 399.6 x 43.7 mm (17.42 x 15.73 x 1.72") |
| Weight With Brackets | 6.25 kg (13.78 lb) 6.34 kg (13.98 lb) |
| Interfaces Networking Management | (48) 10/100/1000 RJ45 Ports (4) 1/10G SFP+ Ethernet Ports Ethernet In-Band |
| Total Non-Blocking Throughput | 88 Gbps |
| Switching Capacity | 176 Gbps |
| Forwarding Rate | 130.944 Mpps |
| Power Method Universal Input USP RPS DC Input | 100-240VAC, 50/60 Hz 52VDC, 11.54A; 11.5VDC, 5.22A |
| Power Supply | AC/DC, Internal, 660W |
| Voltage Range | 100 to 240VAC |
| Max Power Consumption (Excluding PoE Output) | 60W |
| LEDs System RJ45 Data Ports SFP Data Ports | Status PoE; Speed/Link/Activity Link/Activity |
| ESD/EMP Protection | Air: ± 16 kV, Contact: ± 12 kV |
| Shock and Vibration | ETSI300-019-1.4 Standard |
| Operating Temperature | -5 to 40° C (23 to 104° F) |
| Operating Humidity | 10 - 90% Noncondensing |
| Certifications | CE, FCC, IC |
| PoE | |
| Total Available PoE | 600W |
| PoE Interfaces Ports 1-40 Ports 41-48 | POE+ IEEE 802.3af/at (Pins 1, 2+; 3, 6-) 60W PoE++ IEEE 802.3bt (Pair A 1, 2+; 3, 6-) (Pair B 4 , 5+; 7, 8-) |
| Max. PoE Wattage per Port by PSE 802.3at 802.3bt | 32W 64W |
| Voltage Range 802.3af Mode 802.3at/bt Mode | 44-57V 50-57V |
Add-Ons
UICARE-USW-Pro-48-POE-DUbiquiti With UI Care, you'll extend replacement protection to five years and enjoy exclusive benefits. You must activate your UI Care protection for the intended UI Care products prior to resale, before you ship products out. Follow the instructions provided in the portal section Licenses/UI Care Vouchers.
In Stock
