Product Information

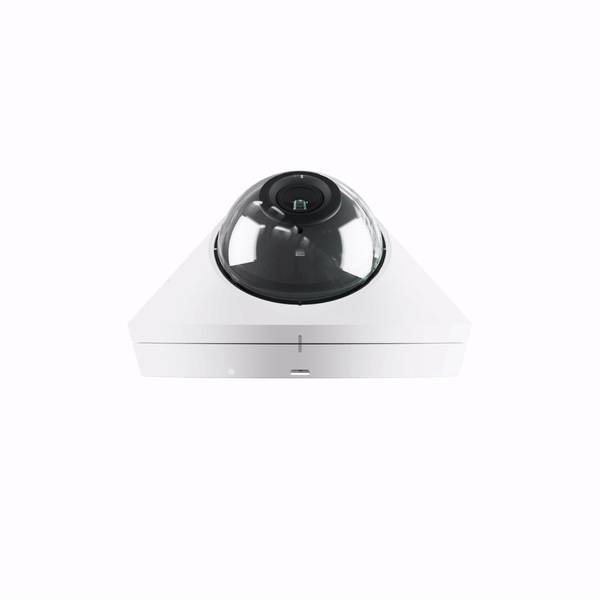

Next-gen 2K HD PoE ceiling camera with enhanced dynamic range and low-light performance.
Managed with the UniFi Protect application: Version 2.2.7 or 2.7.18 and later (web) / 1.10.0 and later (mobile)
Features:
- 2K HD, 30 FPS camera with a 5MP CMOS sensor
- Wide-angle view (102.4˚)
- Weatherproof IPX4-rated enclosure with IK08-rated vandal resistance
- Improved low-light performance and IR night vision up to 10m
- Improved dynamic range

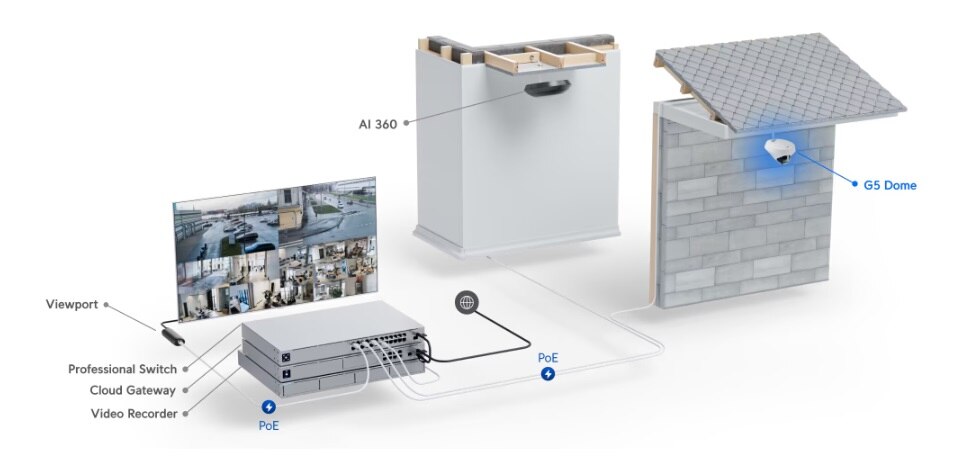

Works with the UniFi Protect Application
- Plug-and-play installation
- Designed for scalability
- Intuitive user interface
- Powerful mobile app
- Subscription-free
Specifications

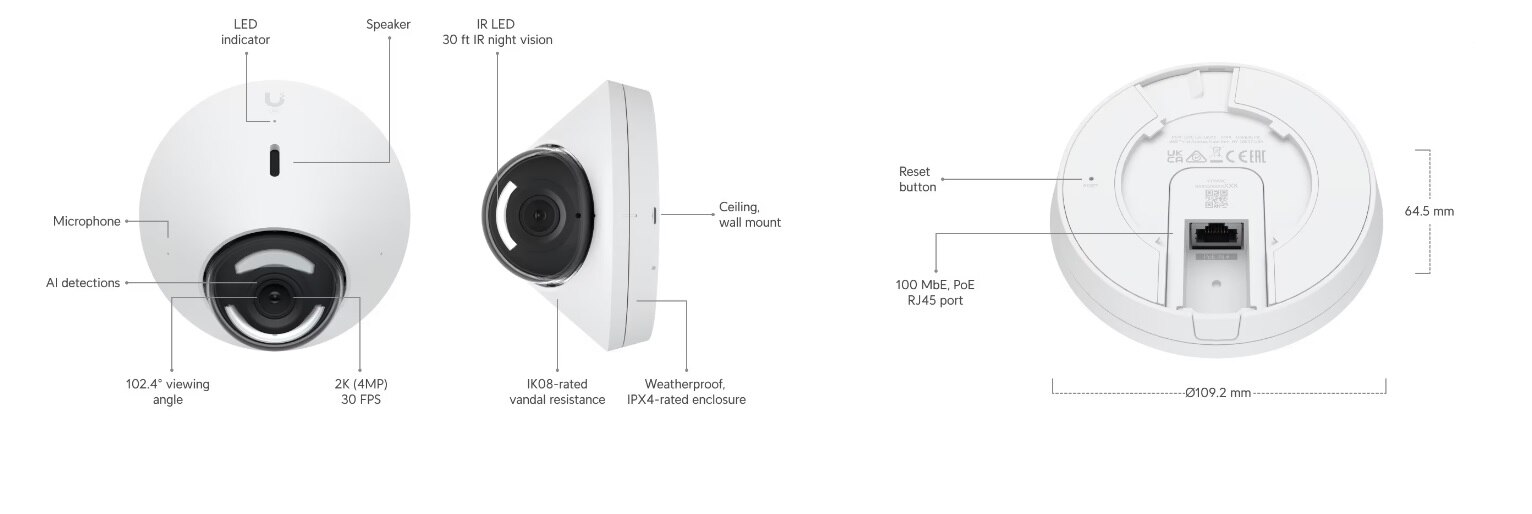

Specifications UVC-G5-Dome
| Mechanical | |
| Dimensions | Ø109.2 x 64.5 mm (Ø4.3 x 2.5") |
| Weight | Without mount: 370 g (13.05 oz) With mount: 390 g (13.76 oz) |
| Enclosure materials | Aluminum alloy, polycarbonate, hard-coated dome |
| Mount materials | Polycarbonate, stainless steel |
| Weatherproofing | IPX4 |
| Resistance | IK08 |
| Optics | |
| Sensor | 5MP CMOS sensor |
| Lens | Fixed focal length |
| View angle | H: 102.4°, V: 71.4°, D: 134.3° |
| Night mode | Built-in IR LED illumination and IR cut filter |
| Video | |
| Video compression | H.264, MJPEG |
| Resolution | 2688 x 1512 (16:9) |
| Max. frame rate | 30 FPS |
| Image settings | Color, brightness, sharpness, contrast, white balance, exposure control, 2DNR, 3DNR, NR by motion, masking, text overlay |
| System | |
| Processor | Dual-core Arm® Cortex®-A7 based chip |
| Networking interface | 10/100 MbE RJ45 port |
| Max. power consumption | 5W |
| Power method | PoE |
| Supported voltage range | 37–57V DC |
| LED | R/G/B/W |
| Button | Factory reset |

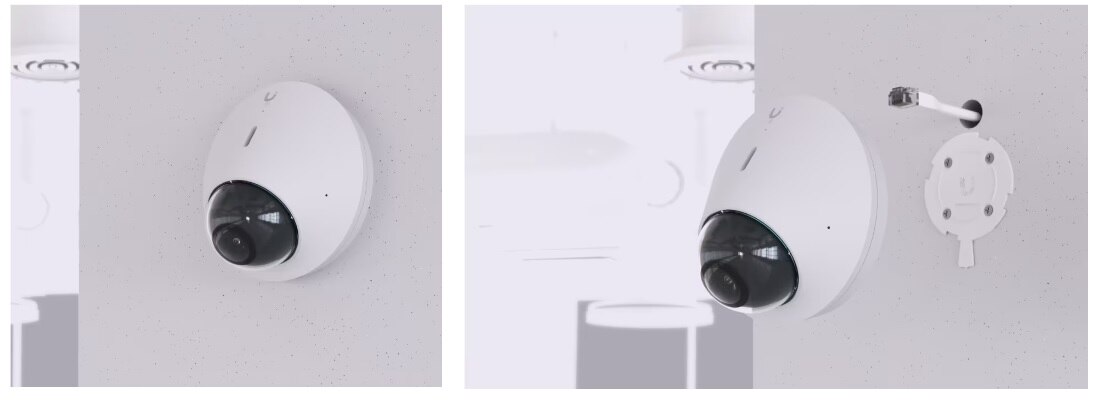

| Mounting | Wall, ceiling mount |
| Operating temperature | -20 to 40º C (-4 to 104º F) |
| Operating humidity | 0 to 90% noncondensing |
| Certifications | FCC, IC, CE |
| Audio | |
| Microphone | Yes (Can be disabled) |
| Speaker | Yes |
| Software | |
| UniFi OS application | UniFi Protect |
| Mobile app | UniFi Protect iOS™ and Android™ |
