Ubiquiti UISP airMAX LiteBeam 5AC Long-Range CPE (US)
- SKU: LBE-5AC-LR-US
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information

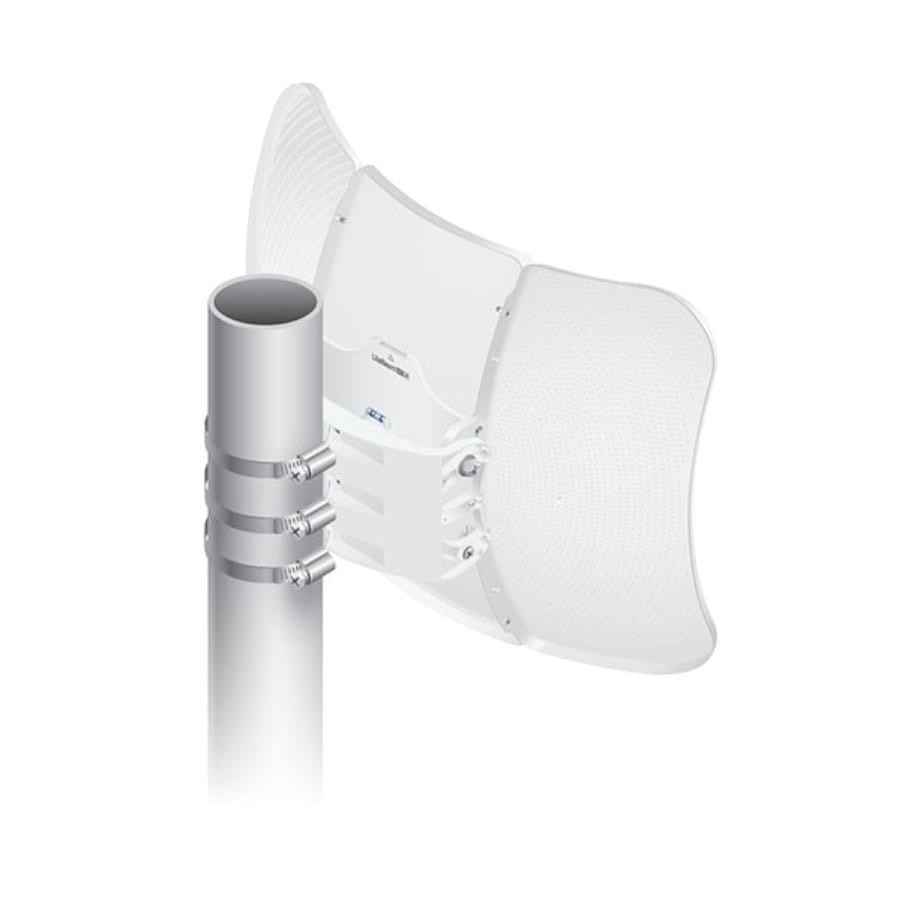

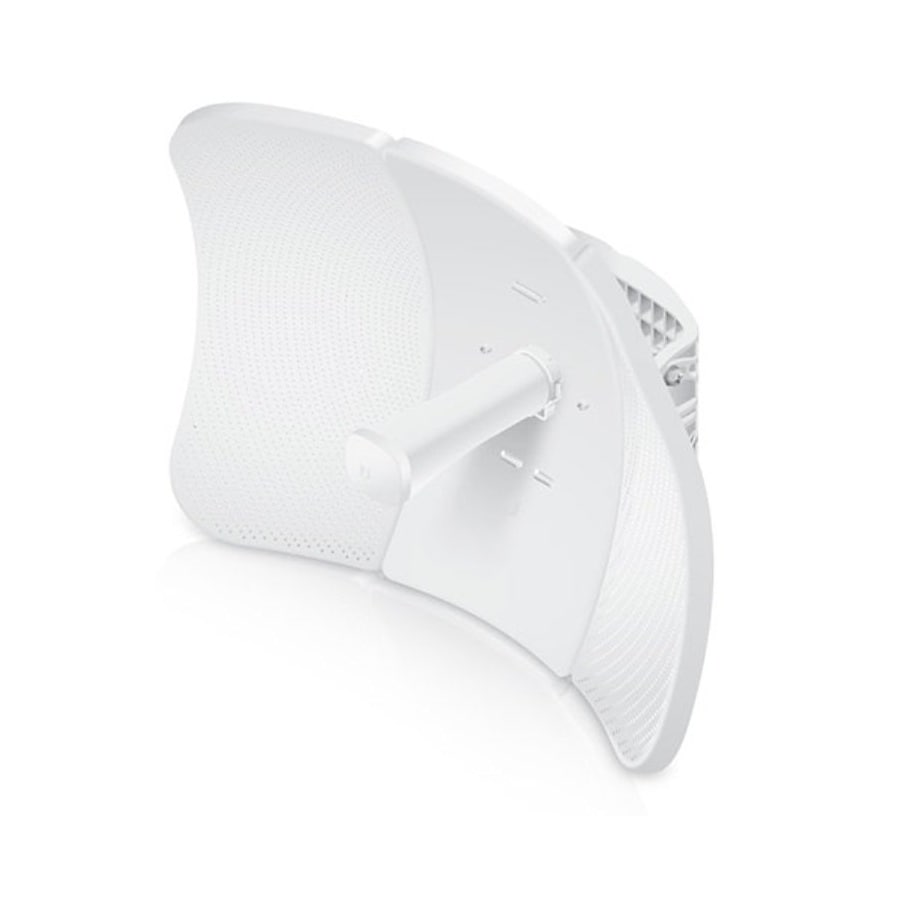

The Ubiquiti airMAX LiteBeam 5AC LR is engineered for long-range deployment. It features an expansive reflector size and adjustable elevation (with azimuth adjustment accomplished via pole rotation). Ubiquiti Networks introduces the next iteration of airMAX CPE (Customer Premises Equipment) with the LiteBeam 5AC Gen 2, which includes dedicated Wi-Fi management capabilities.
This Long-Range model boasts enhanced noise immunity through its narrow beamwidth, allowing for more focused RF energy transmission. By concentrating the signal in a specific direction, the LiteBeam 5AC Gen 2 effectively mitigates interference from surrounding RF sources operating on similar frequencies. This attribute is particularly beneficial in RF-dense environments.
The Ubiquiti airMAX LiteBeam 5AC LR also supports rapid and intuitive alignment and improved surge protection to ensure reliable operation in fluctuating conditions.
Product Features:
- Lightweight, Low-Cost Solution
- Full Adjustment Flexibility
- Quick Assembly and Installation
Specifications
Specifications LBE-5AC-LR-US
| Dimensions | 512.5 x 385.75 x 258.3 mm (20.18 x 15.19 x 10.17") |
| Weight Without Mount With Mount | 1.360 kg (2.998 lb) 1.735 kg (3.825 lb) |
| Power Supply | 24V, 0.3A Gigabit PoE Adapter (Included) |
| Max. Power Consumption | 7W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 24V ± 10% |
| Gain | 26 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor Specs | MIPS 74Kc |
| Memory | 64 MB DDR2 |
| LEDs | Power, Ethernet |
| Channel Sizes | PtP Mode 10/20/30/40/50/60/80 MHz PtMP Mode 10/20/30/40 MHz |
| Enclosure Characteristics | Reflector (Aluminum) / Plastic: PC |
| Mounting | Pole-Mounting Kit (Included) |
| Wind Loading | 550 N @ 200 km/h (123.6 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | ± 24 kV Contact / Air |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
| Operating Frequency (MHz) | |
| Worldwide | 5150 - 5875 |
| US/CA | U-NII-1: 5150 - 5250 U-NII-2A: 5250 - 5350 MHz U-NII-2C: 5470 - 5725 MHz U-NII-3: 5725 - 5850 |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 |
| US/CA | 2412 - 2462 |
