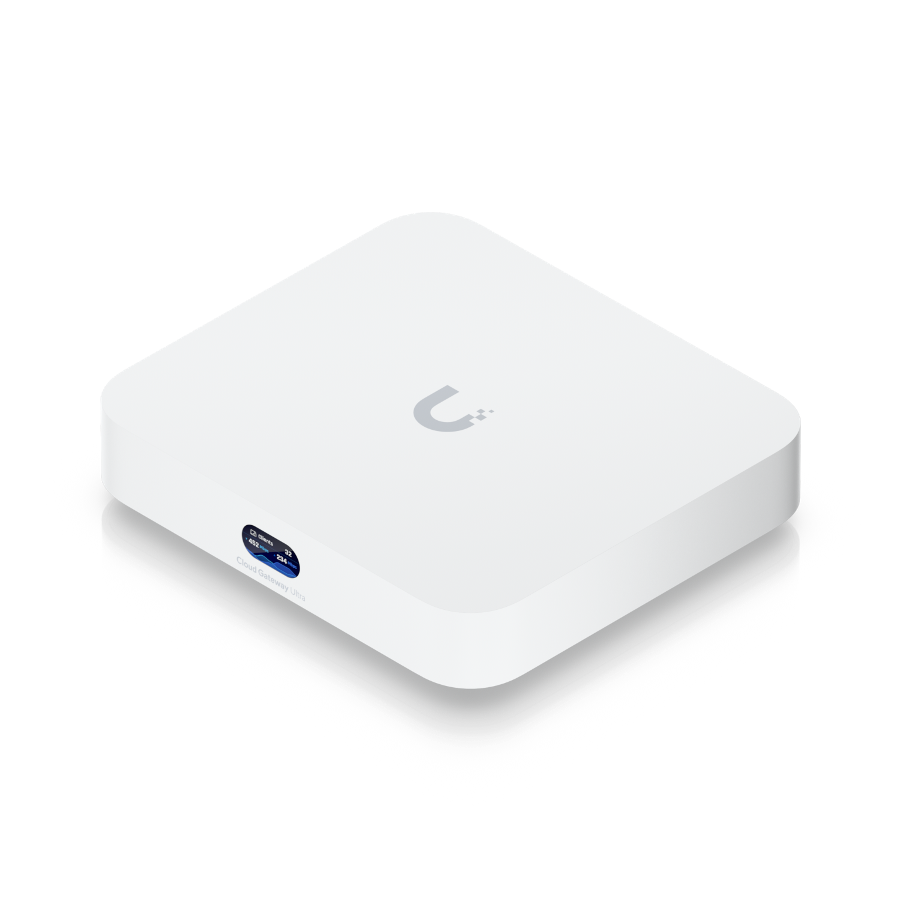

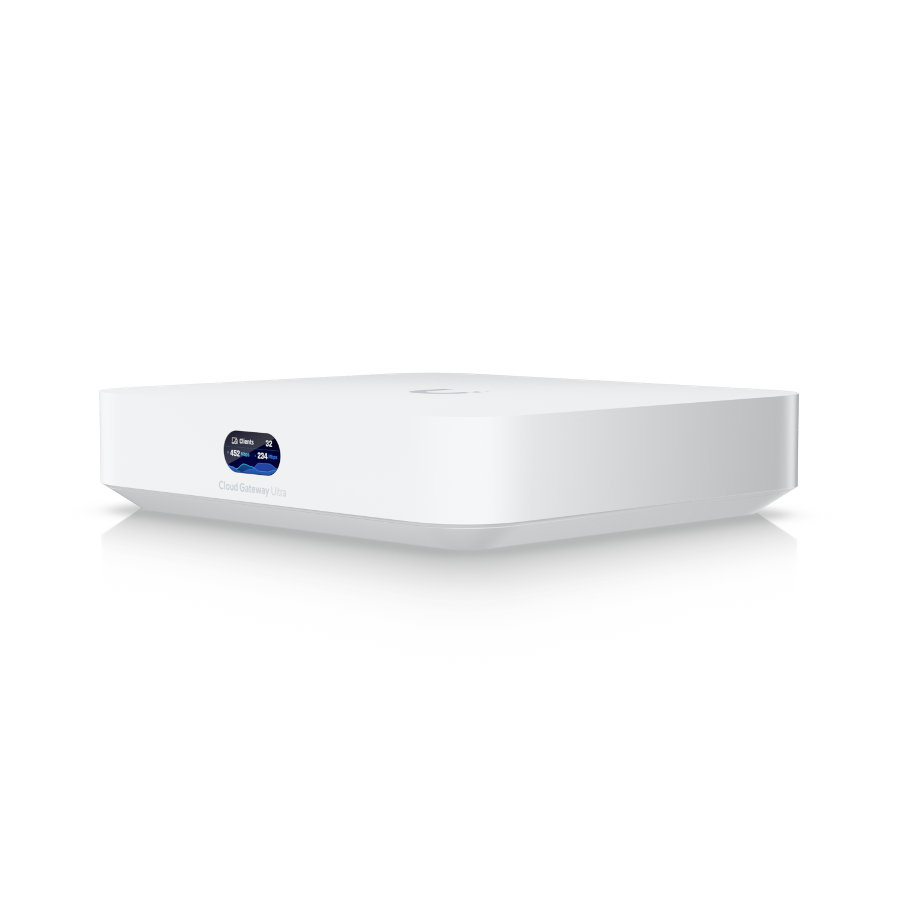

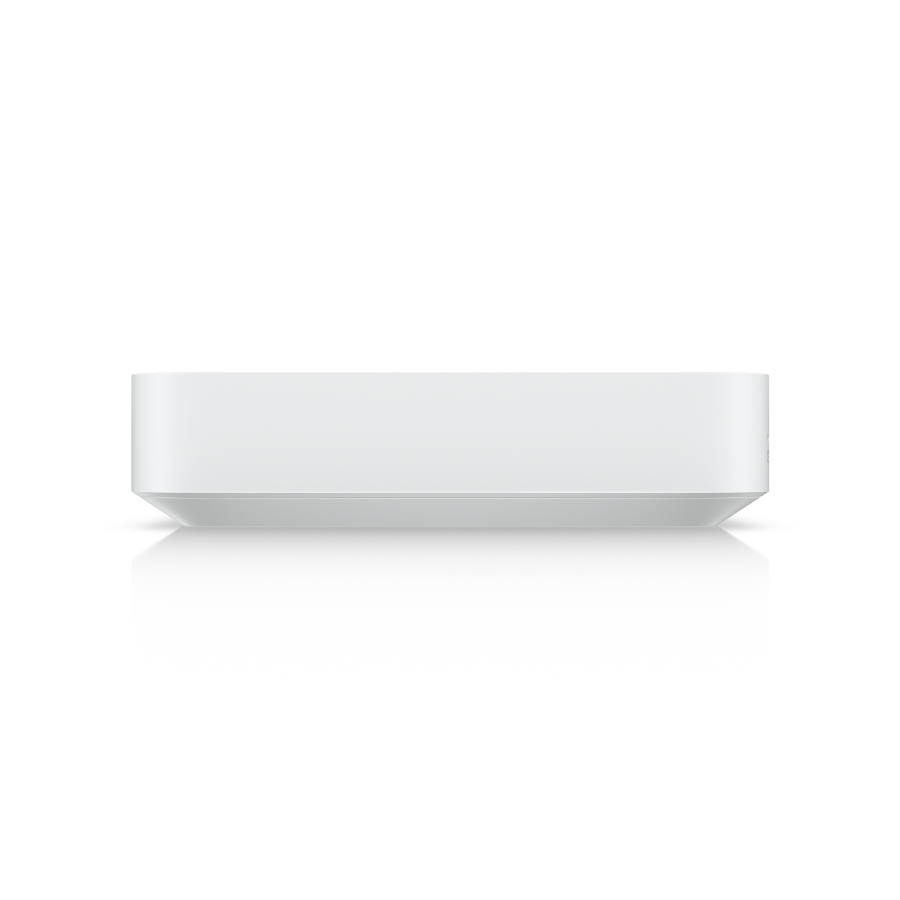

Ubiquiti UniFi Cloud Gateway Ultra
- SKU: UCG-Ultra
$129.00
+ $7.00 Surcharge
Product Information
Ubiquiti UniFi Controllers - Manages 30+ UniFi Network devices and 300+ clients 1 Gbps routing with IDS/IPS Multi-WAN load balancing 0.96" LCM status display USB-C powered (adapter included)
Specifications
Specifications UCG-Ultra
| Dimensions | 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2") |
| Weight | 520 g (1.1 lb) |
| Enclosure material | Polycarbonate |
| Hardware | |
| Processor | Quad-core ARM® Cortex®-A53 at 1.5 GHz |
| System memory | 3 GB DDR4 |
| On-board storage | 16 GB eMMC |
| Management interface | Ethernet Bluetooth |

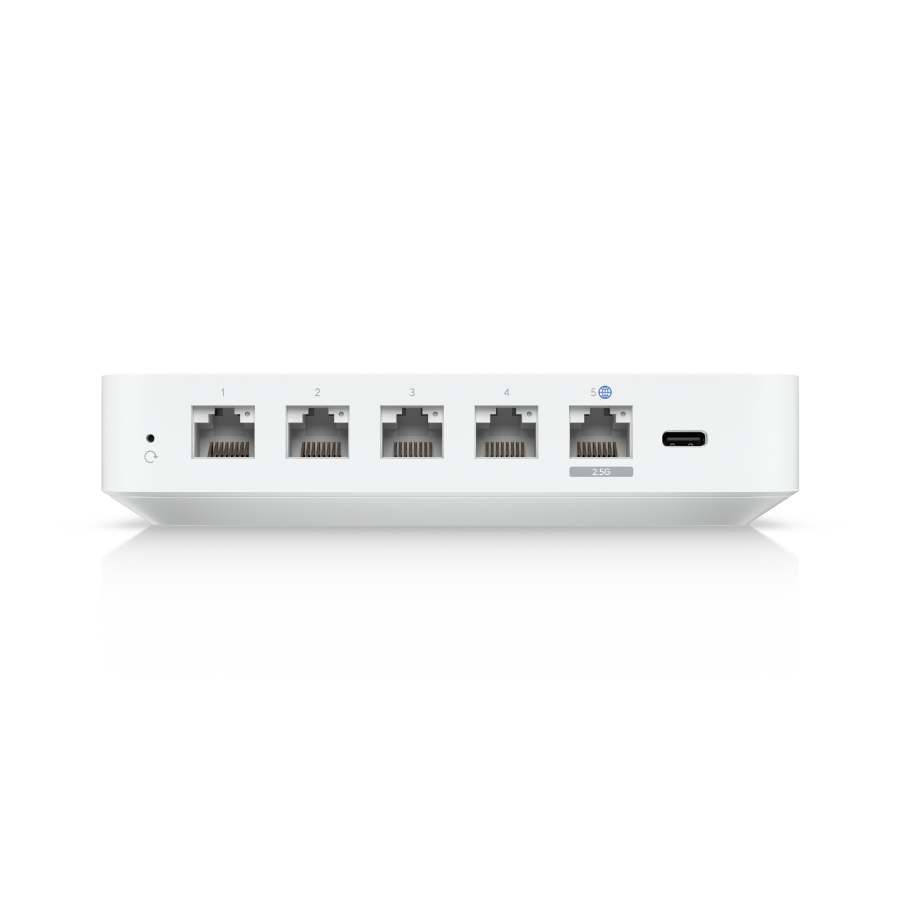

| Networking interface | LAN: WAN: |
| IDS/IPS throughput | 1 Gbps |
| Power method | USB type C (5V DC/3A) |
| Supported voltage range | 100–240V AC |
| Max. power consumption | 6.2W |

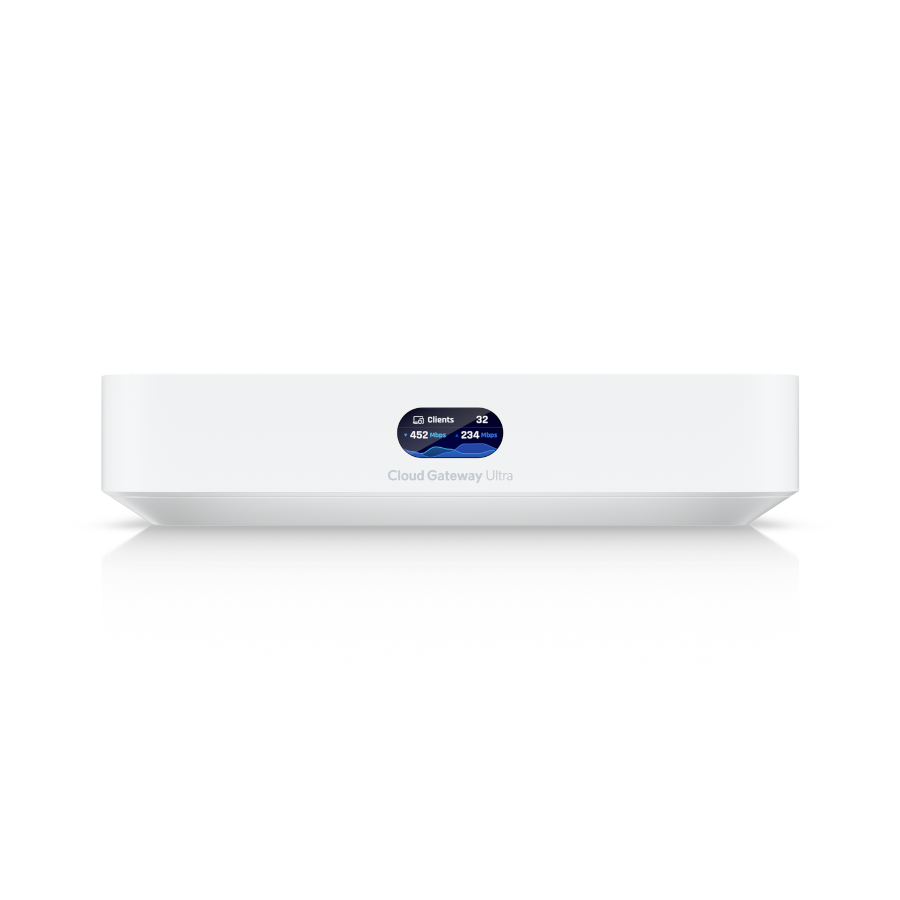

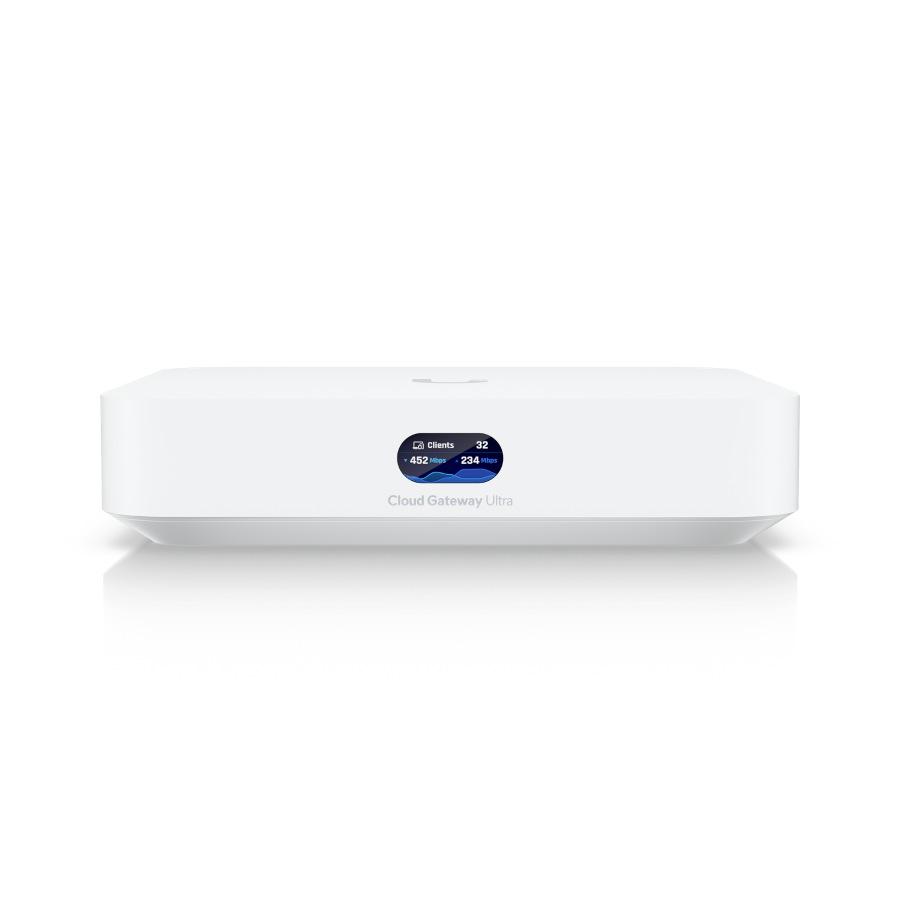

| LCM display | 0.96" status display |
| Button | Factory reset |
| Ambient operating temperature | -10 to 40° C (14 to 104° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Gateway Features | |
| Performance | Redundant WAN with failover and load balancing WiFi QoS with UniFi APs Application, domain, and country-based QoS Application and device type identification Additional internet failover with LTE Backup Internet quality and outage reporting |
| Next-generation security | Application-aware firewall rules Signature-based IPS/IDS threat detection Content, country, domain, and ad filtering VLAN/subnet-based traffic segmentation Full stateful firewall |
| Advanced networking | License-free SD-WAN WireGuard, L2TP and OpenVPN server OpenVPN client OpenVPN and IPsec site-to-site VPN One-click Teleport and Identity VPN Policy-based WAN and VPN routing DHCP relay Customizable DHCP server IGMP proxy IPv6 ISP support |
| LEDs | |
| Ethernet | Green: link/activity |
| Application Requirements | |
| Mobile app | UniFi iOS™: Version 10.12.0 and later UniFi Android™: Version 10.11.2 and later |
