Ubiquiti Networks U7-Pro-Outdoor-US
- SKU: U7-Pro-Outdoor-US
$279.00
- Manufacturer: Ubiquiti Networks
- Installation Guide: Download
Product Information

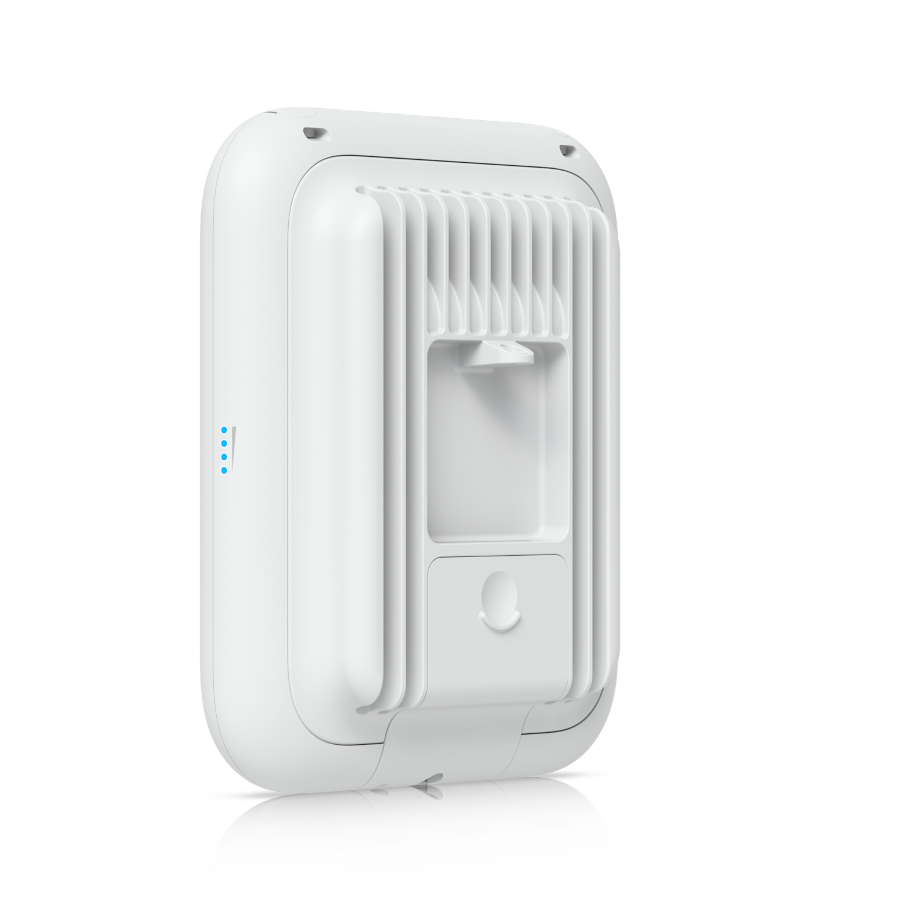

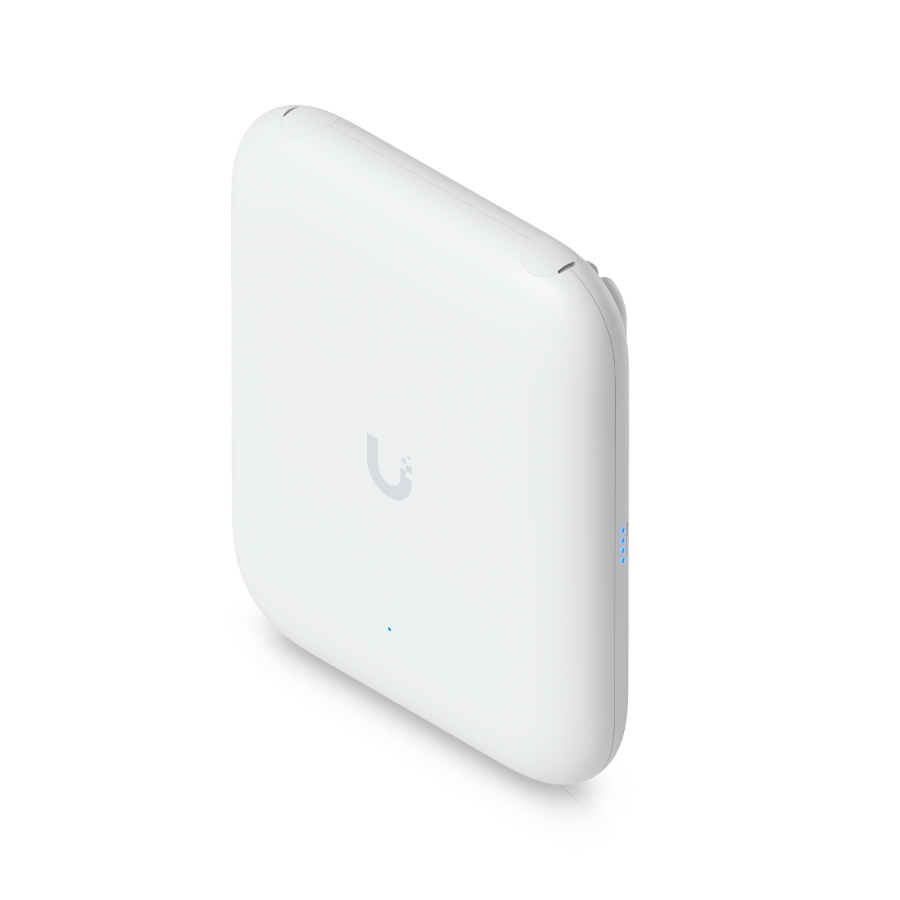

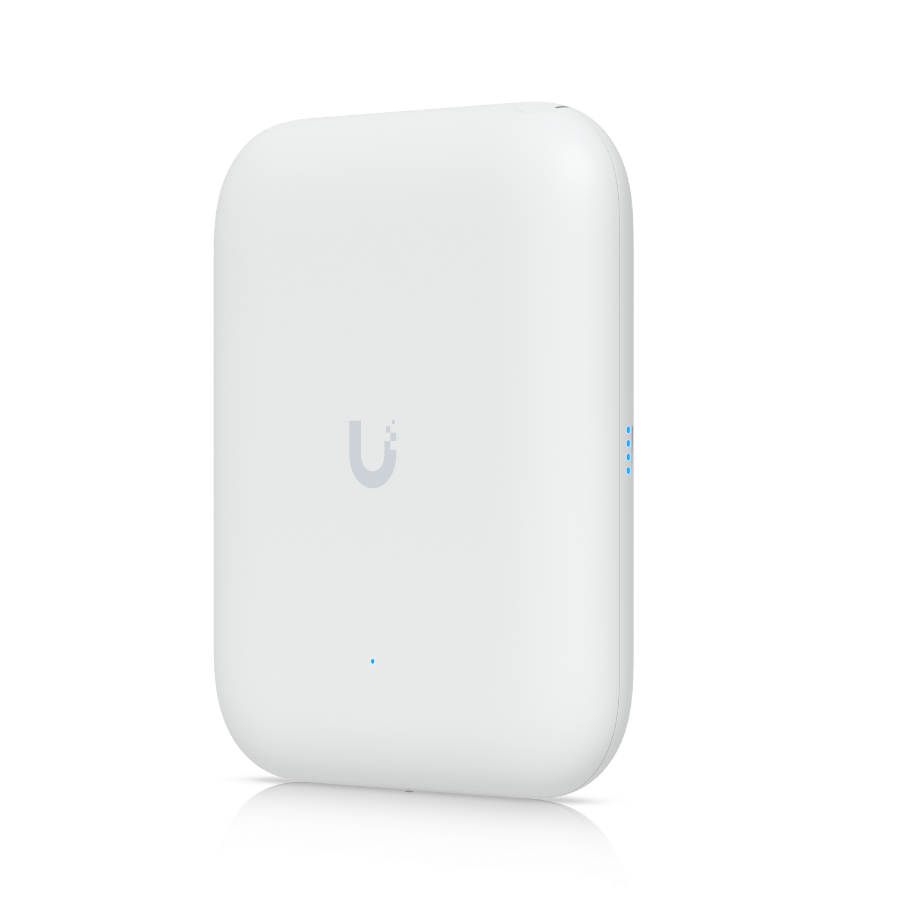

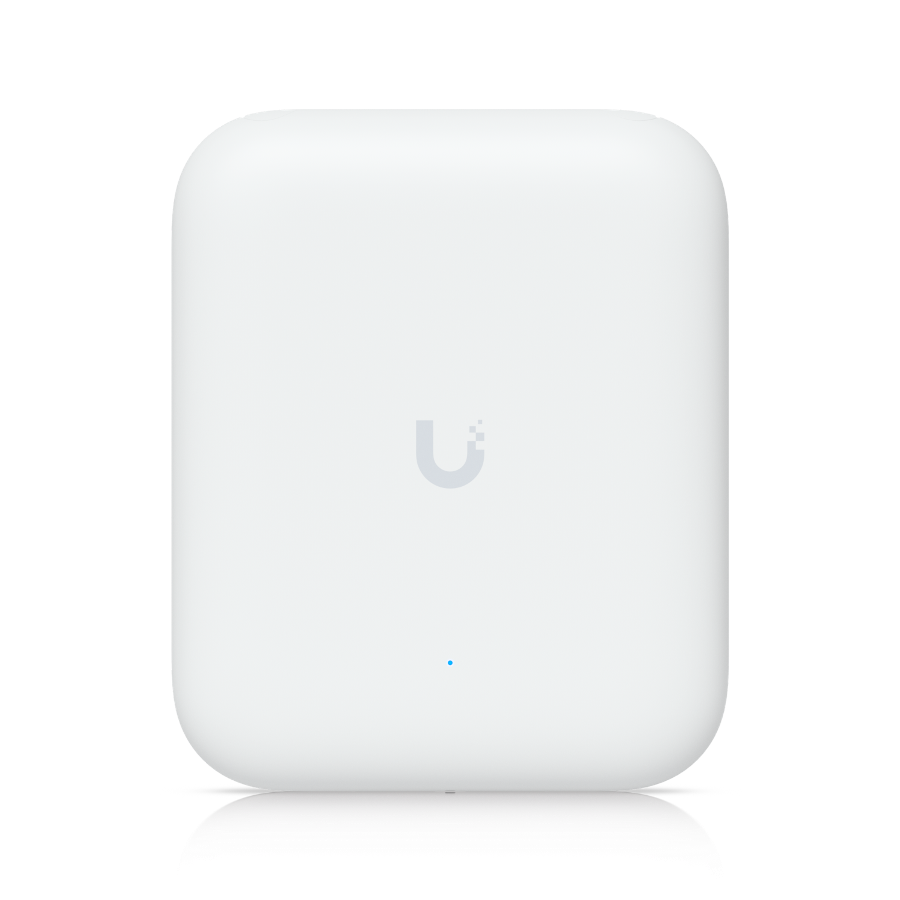

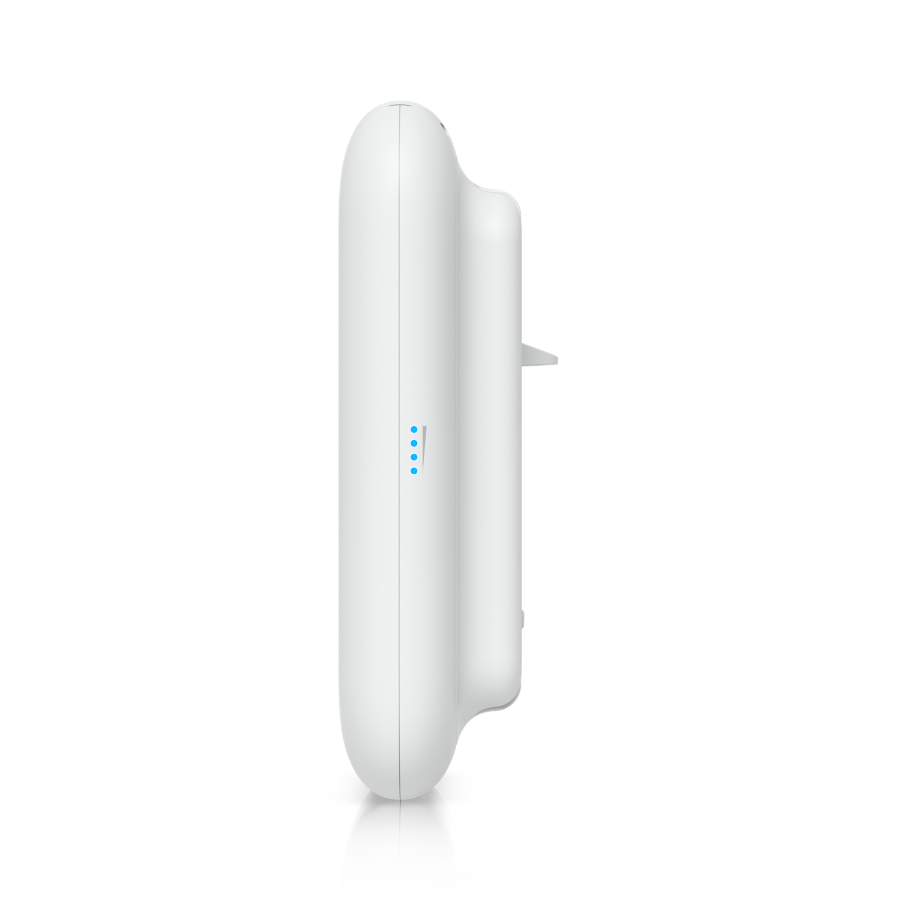

Ubiquiti U7 WiFi 7 Pro Outdoor AP and Articulation Mounting Bracket
Specifications
Specifications U7-Pro-Outdoor
| Dimensions | Without mount: 170 x 208 x 66.5 mm (6.7 x 8.2 x 2.6") With mount: 170 x 208 x 121.8 mm (6.7 x 8.2 x 4.8") | |
| Weight | Device: 1.2 kg (2.6 lb) Mount: 130 g (0.3 lb) | |
| Enclosure material | UV-stabilized polycarbonate, aluminum alloy | |
| Mount material | UV-stabilized polycarbonate | |

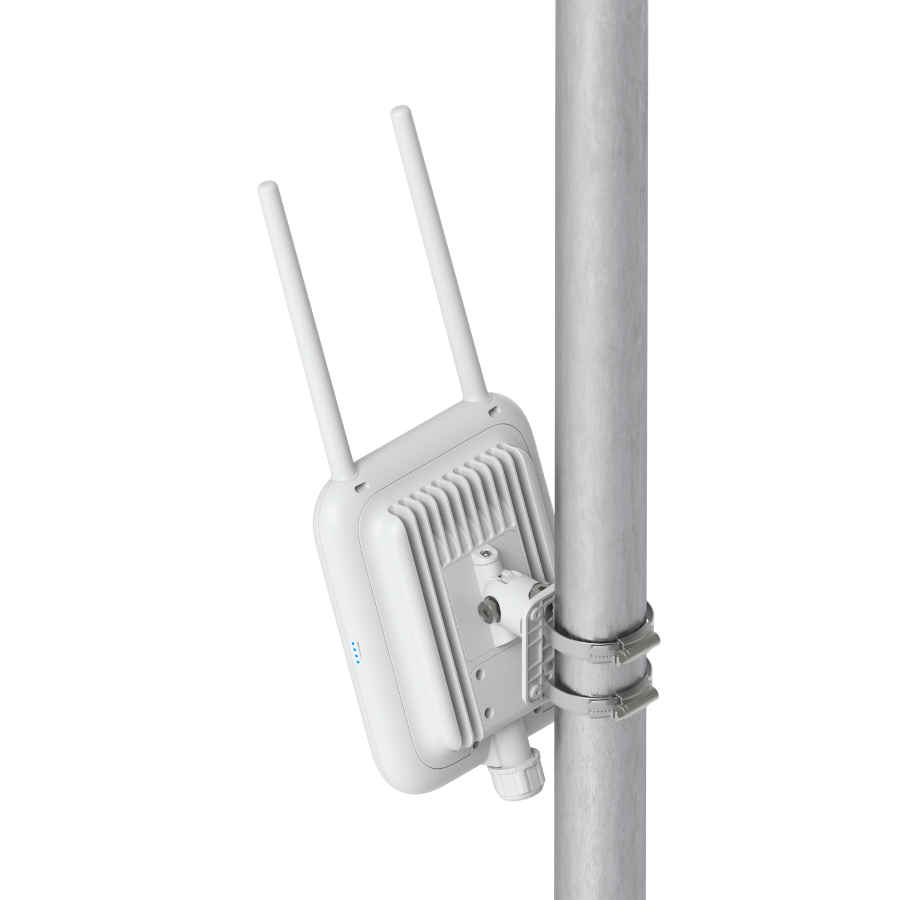

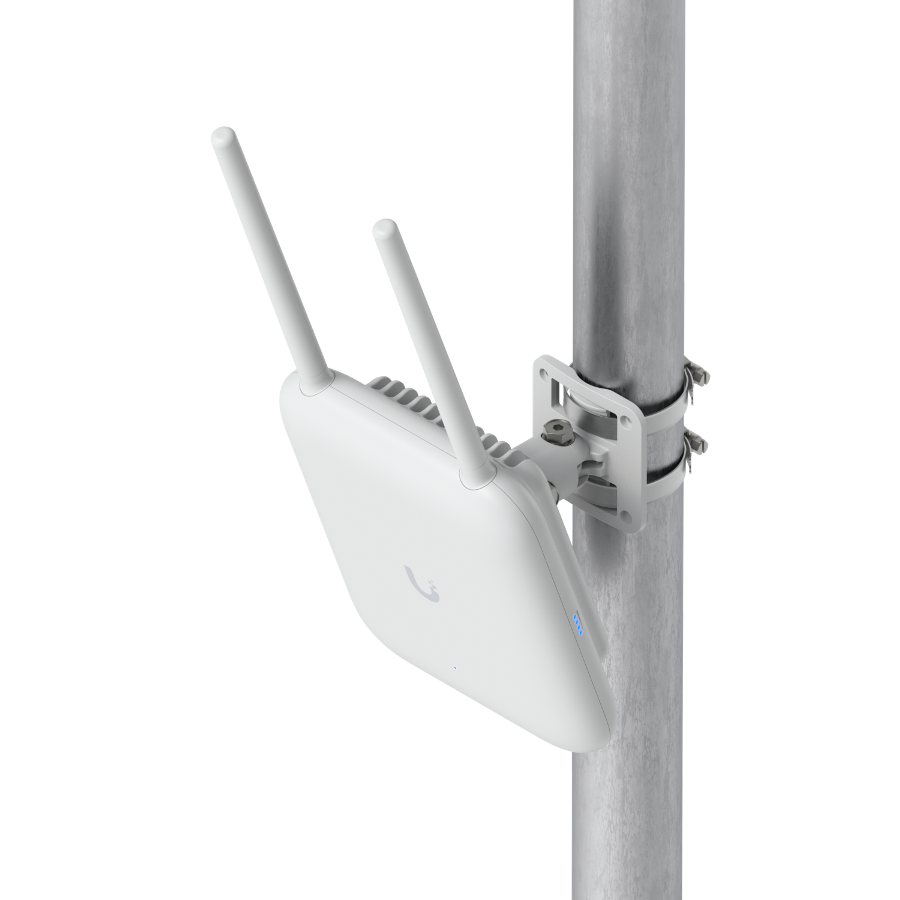

| Pole mount diameter | 25–63.5 mm (1–2.5") on pipe outer diameter | |
| Wind survivability | 74.6 N at 200 km/h (16.8 lbf at 125 mph) | |

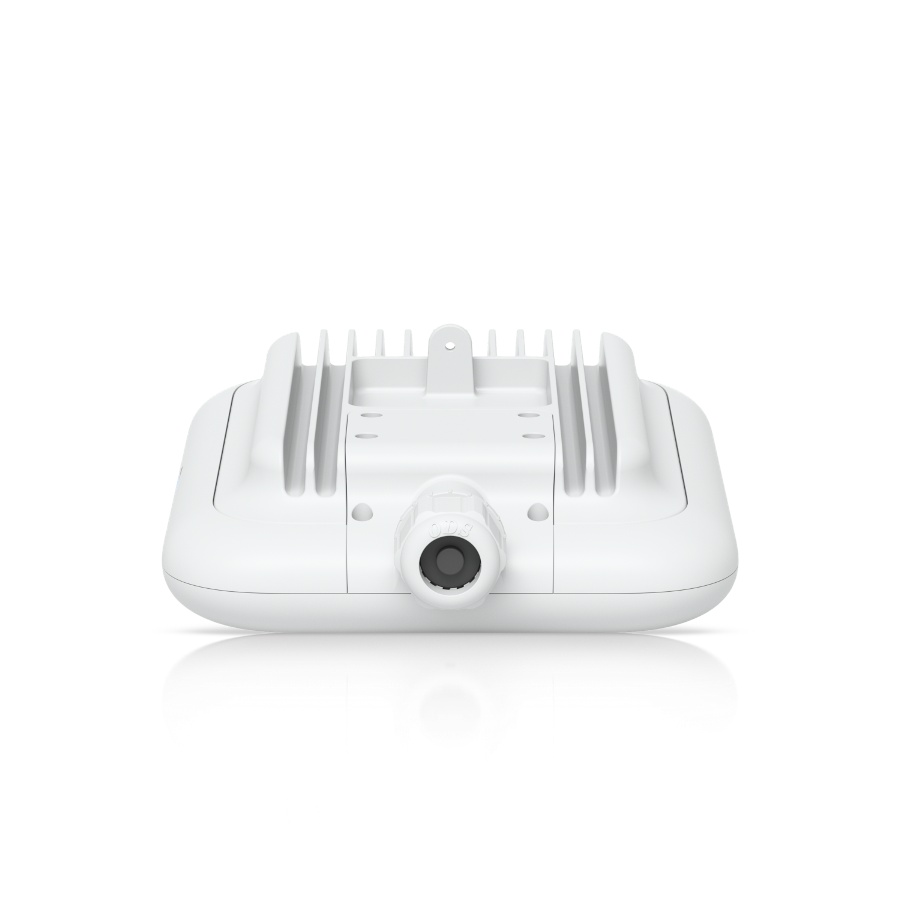

| Weatherproofing | IPX6 IP67 with cable-gland door kit (Included) | |
| Hardware | ||
| Networking interface | (1) 1/2.5 GbE RJ45 port | |
| Management interface | Ethernet | |
| Power method | PoE+ | |
| Power supply | UniFi PoE switch | |
| Supported voltage range | 42.5—57V DC | |
| Max. power consumption | 21W | |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 23 dBm 26 dBm 26 dBm* | |
| MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) 2 x 2 (DL/UL MU-MIMO) | |
| Max. data rate 2.4 GHz 5 GHz 6 GHz | 688 Mbps (BW40) 4.3 Gbps (BW240) 5.7 Gbps (BW320) | |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | Directional internal: 8 dBi / External omni: 6 dBi Directional internal: 11 dBi / External omni: 8 dBi Directional internal: 10 dBi / External omni: – | |
| Antenna beamwidth 2.4 GHz 5 GHz 6 GHz | 90° 90° 90° | |

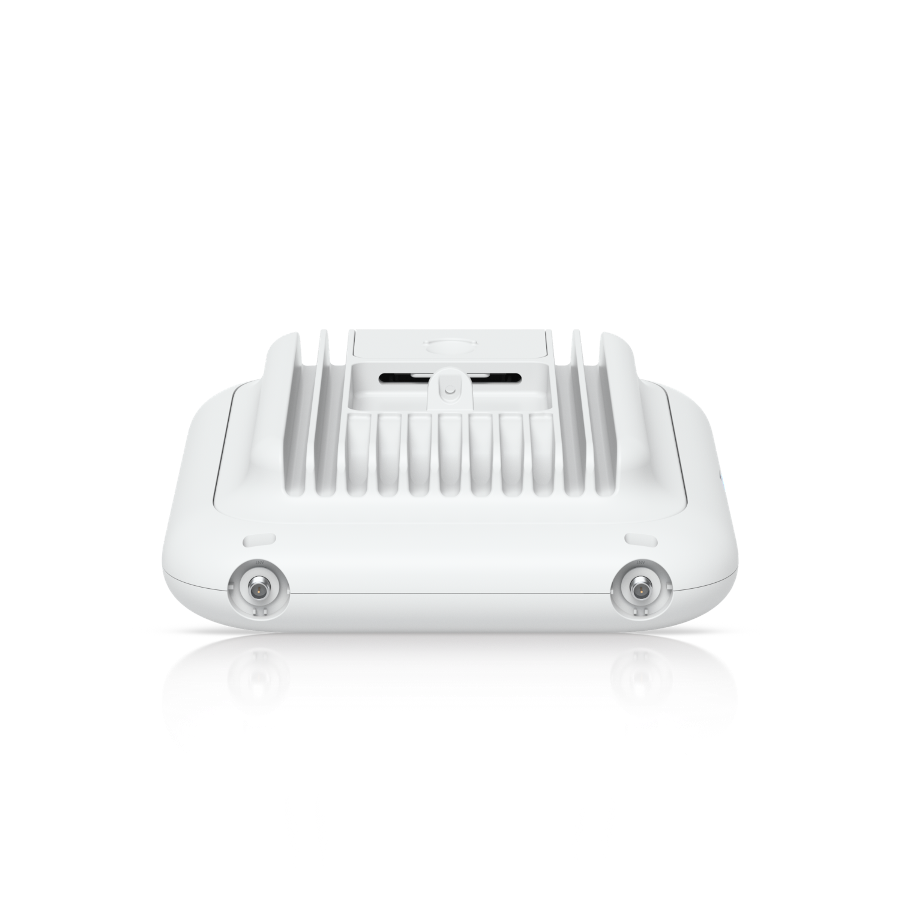

| Antennas | (1) Directional internal antenna (2) RP-SMA connectors for external antenna | |
| LEDs | (1) Power: white/blue (4) Mesh signal: blue | |
| Button | Factory reset | |
| Mounting | Wall, ceiling, pole (Included) | |
| Ambient operating temperature | -30 to 60° C (-22 to 140° F) | |
| Ambient operating humidity | 5 to 95% noncondensing | |
| Certifications | FCC, IC | |
| Software | ||
| WiFi standards | 802.11a/b/g/n/ac/ax/be (WiFi 6, WiFi 7) | |
| Wireless security | WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK) | |
| BSSID | 8 per radio | |
| VLAN | 802.1Q | |
| Advanced QoS | Per-user rate limiting | |
| Guest traffic isolation | Supported | |
| Concurrent clients | 300+ | |
| Supported Data Rates | ||
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11b | 1, 2, 5.5, 11 Mbps | |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps | |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) | |
| 802.11ac | 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160) | |
| 802.11ax (WiFi 6) | 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160) | |
| 802.11be (WiFi 7) | 7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320) | |
| Application Requirements | ||
| UniFi Network | Version 9.0.108 and later |
