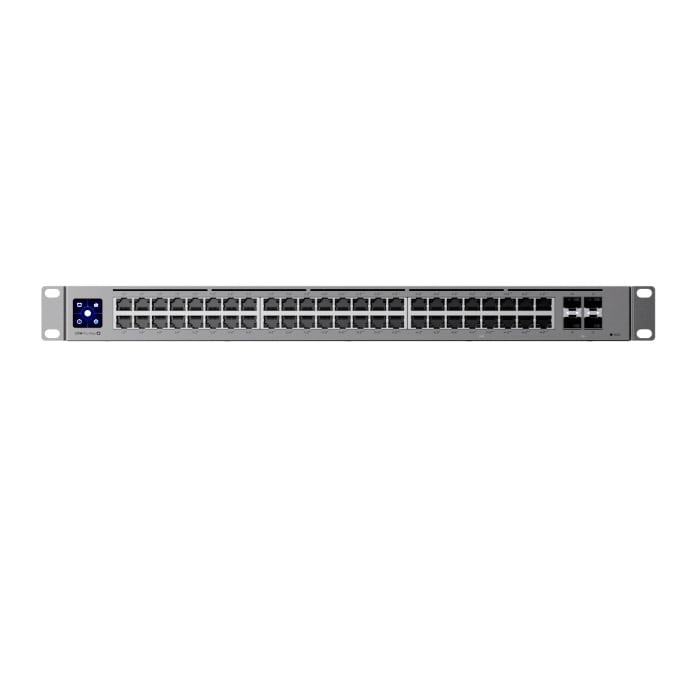

Ubiquiti UniFi Pro Max 48 PoE L3 Etherlighting Switch
- SKU: USW-Pro-Max-48-POE
$1,299.00
Product Information
Ubiquiti Switches - A 48-port, Layer 3 Etherlighting switch capable of high-power PoE++ output. Etherlighting ports that illuminate to indicate port location, speed/link, and native VLAN/network* (16) 2.5 GbE ports including (8) PoE+ and (8) PoE++ (32) GbE ports including (24) PoE+ and (8) PoE++ (4) 10G SFP+ ports DC power backup ready 720W total PoE availability Managed with UniFi Network 8.0.24 and later
Specifications
Specifications

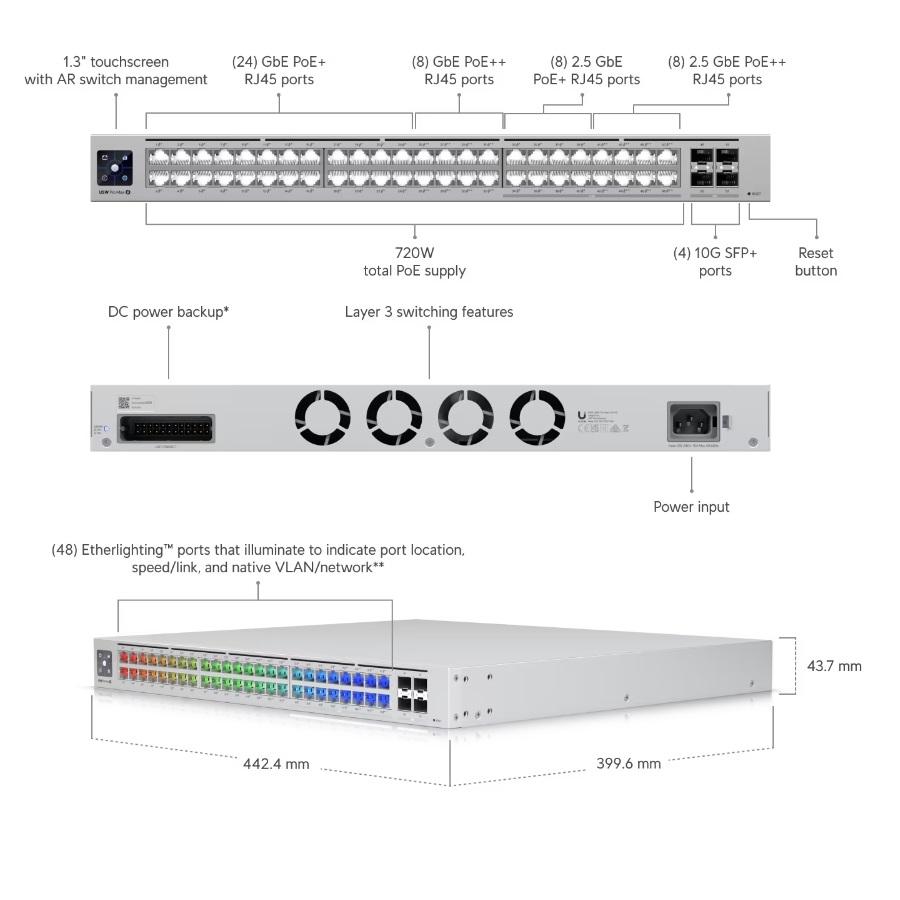

| Dimensions | 442.4 x 399.6 x 43.7 mm (17.4 x 15.7 x 1.7") |
| Weight | Without mounting brackets: 6.2 kg (13.7 lb) With mounting brackets: 6.3 kg (13.9 lb) |
| Enclosure material | SGCC steel |
| Hardware | |
| Management interface | Ethernet In-Band |
| Networking interface | (32) GbE RJ45 ports (16) 1/2.5 GbE RJ45 ports (4) 10G SFP+ ports |
| PoE interface | (32) PoE/PoE+ (Pins 1, 2+; 3, 6-) (16) 60W PoE++ (Pair A 1, 2+; 3, 6-) (Pair B 4, 5+; 7, 8-) |
| Total non-blocking throughput | 112 Gbps |
| Switching capacity | 224 Gbps |
| Power method | Universal input, 100—240V AC, 50/60 Hz USP RPS DC input |
| Power supply | AC/DC, internal, 820W |
| Supported voltage range | 100—240V AC |
| Max. power consumption | 100W (Excluding PoE output) |
| Total available PoE | 720W |
| Max. PoE wattage per port by PSE | PoE: 15.4W PoE+: 30W PoE++: 60W |
| Voltage range PoE mode | PoE: 44—57V PoE+: 50—57V |
| LCM display | (1) 1.3" touchscreen |
| Button | Factory reset |
| Operating temperature | -5 to 40° C (23 to 104° F) |
| Operating humidity | 10 to 90% noncondensing |
| Certifications | CE, FCC, IC |
| Etherlighting™ | |
| Ethernet | Locating Speed/link Native VLAN/network |
| SFP+ | Locating Speed/link Native VLAN/network |
| System | Status |
| RPS | Status |
| Application Requirements | |
| UniFi Network | Version 8.0.24 and later |
Add-Ons
UICARE-USW-Pro-Max-48-PoE-DUbiquiti With UI Care, you'll extend replacement protection to five years and enjoy exclusive benefits. You must activate your UI Care protection for the intended UI Care products prior to resale, before you ship products out. Follow the instructions provided in the portal section Licenses/UI Care Vouchers.
In Stock
