Ubiquiti UISP airMAX PowerBeam 5AC ISO Bridge (US)
- SKU: PBE-5AC-ISO-GEN2-US
$135.00
- Manufacturer: Ubiquiti Networks
- Data Sheet: Download
Product Information
5GHz WiFi bridge with a 450+ Mbps real TCP/IP throughput rate and enhanced surge protection.
Specifications
Specifications PBE-5AC-ISO-GEN2
| Dimensions | 459 x 459 x 261 mm (18.07 x 18.07 x 10.28") |
| Weight (Mount Included) | 3.22 kg (7.10 lbs) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Max. Power Consumption | 8.5W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20 to 26VDC |
| Gain | 25 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor Specs | MIPS 74Kc |
| Memory | 64 MB |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Channel Sizes | PtP Mode: 10/20/30/40/50/60/80 MHz PtMP Mode: 10/20/30/40 MHz |
| Enclosure Characteristics | Antenna Feed: Outdoor UV Stabilized Plastic Dish Reflector: Powder-Coated SPCC |

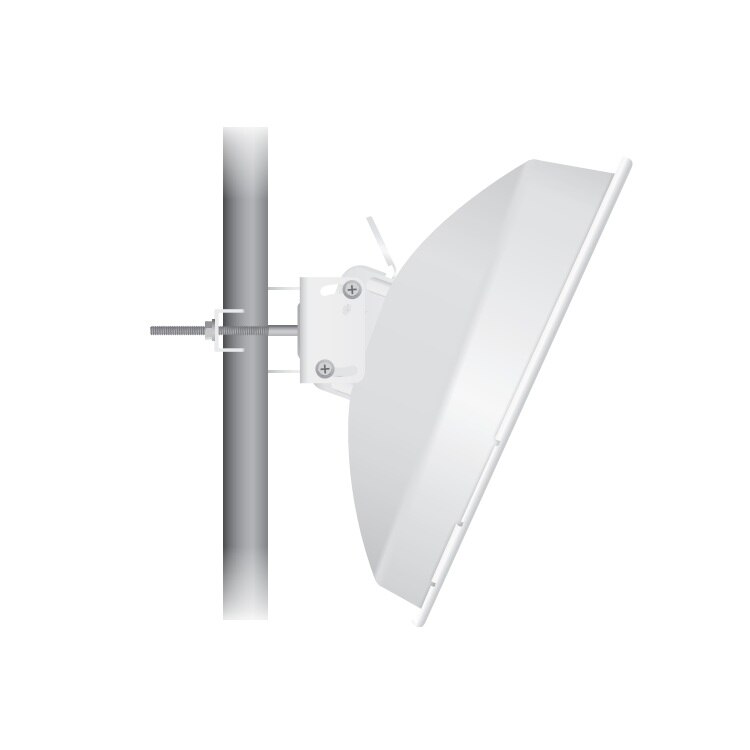

| Mounting | Pole-Mounting Kit (Included) |
| Wind Loading | 559 N @ 200 km/h (125.7 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Certifications | CE, FCC, IC |
| Management Radio (MHz) | |
| Worldwide | 2412 - 2472 |
| USA | 2412 - 2462 |
