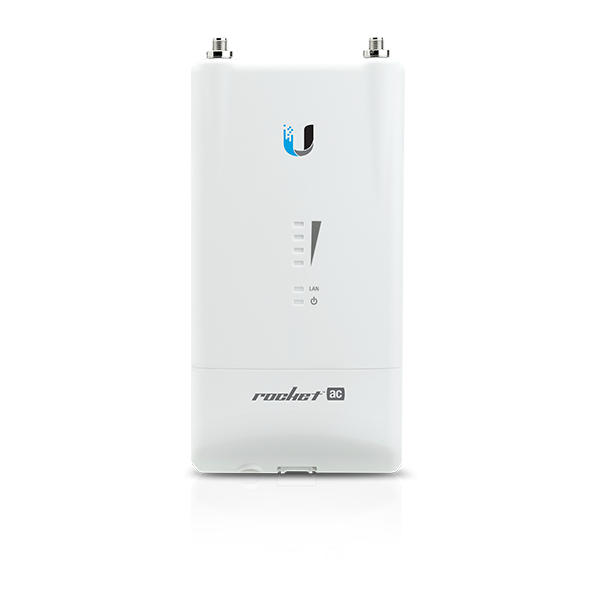

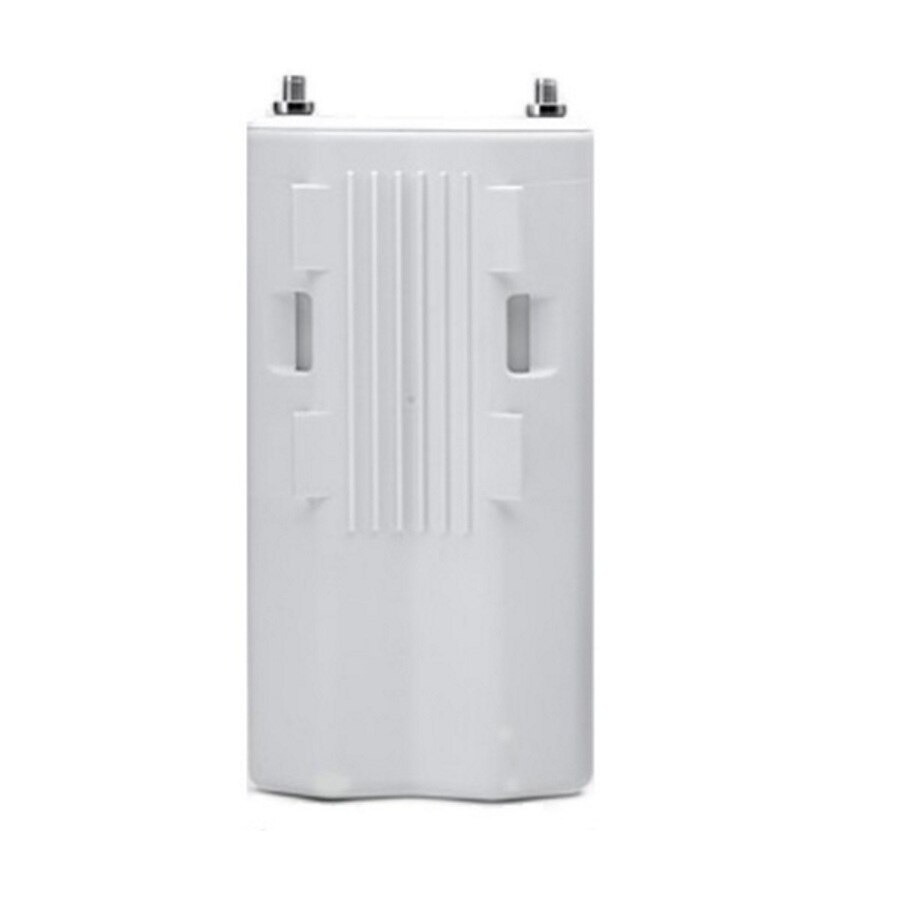

Ubiquiti UISP airMAX Rocket AC Lite (US)
- SKU: R5AC-LITE-US
$135.00
Product Information
airMAX AC Technology for up to 500+ Mbps throughput.
Specifications
R5AC-Lite Specifications
| Dimensions | 162 x 84 x 37 mm (6.38 x 3.31 x 1.46”) |
| Weight | 250 g (8.81 oz) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Max. Power Consumption | 8.5W |
| Processor | Atheros MIPS 74Kc, 720 MHz |
| Memory | 128 MB DDR2 SDRAM, 16 MB NOR FLASH |
| Networking Interface | (1) 10/100/1000 Mbps |
| RF Connections | (2) RP-SMA (Waterproof ) |
| LEDs | Power, LAN, (4) Signal Strength |
| Channel Sizes | 10/20/30/40/50/60/80 MHz,10/20/30/40 MHz |
| Enclosure Characteristics | Outdoor UV Stabilized Plastic |
| Supported Voltage Range | 20-26VDC |
| ESD/EMP Protection | ± 24KV Air / Contact |
| Operating Temperature | -40 to 80° C (-40 to 176° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Shock and Vibration | ETSI300-019-1.4 |
| Wireless Approvals | FCC, IC, CE |
| RoHS Compliance | Yes |
| Modes | Access Point, Station |
| Services | Web Server, SNMP, SSH Server, Telnet , Ping Watchdog, DHCP, NAT, Bridging, Routing |
| Utilities | Antenna Alignment Tool, Discovery Utility, Site Survey, Ping, Traceroute, Speed Test |
| Distance Adjustment | Dynamic Ack and Ackless Mode |
| Power Adjustment | Software Adjustable UI or CL |
| Security | WPA2 AES Only |
| QoS | Supports Packet Level Classification WMM and User Customer Level: High/Medium/Low |
| Statistical Reporting | Up Time, Packet Errors, Data Rates, Wireless Distance, Ethernet Link Rate |
| Other | Remote Reset Support, Software Enabled/Disabled, VLAN Support, 256QAM |
| Ubiquiti Specific Features | 30/50/60 MHz Channels, airMAX ac Mode, Traffic Shaping with Burst Support, Discovery Protocol, Frequency Band Offset, Ackless Mode |
