viaPhoton Power Jumper, 2x16AWG, Shielded, Harting Coordination Power Cable, 10 Meter
- SKU: PWR-216-SH-HRTC-M10
$156.39 $159.58
- Manufacturer: viaPhoton
Product Information
Power Jumper, 2x16AWG, Shielded, Harting Coordination Power Cable, 10 Meter

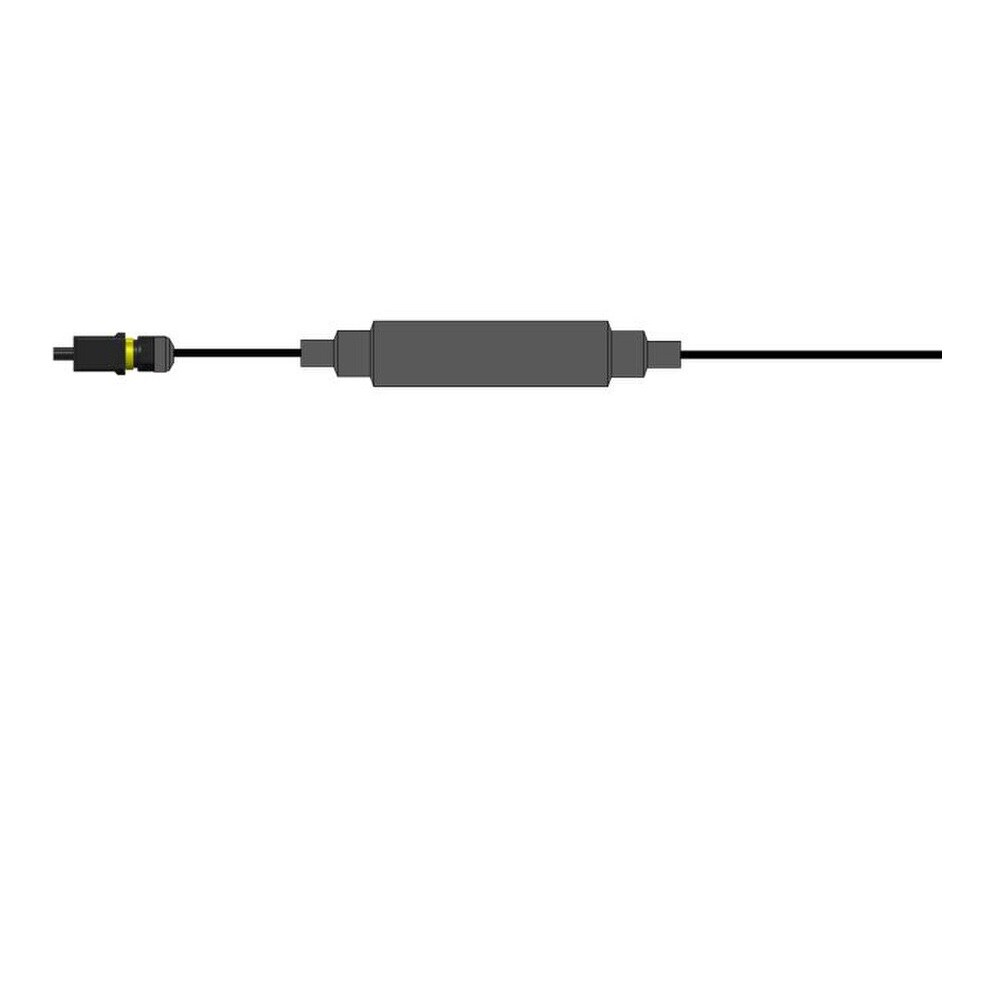

The viaPhoton coordination power jumper cable features 2x16AWG shielded cabling and a Harting power connector with inductor and is 10 meters in length.
Product Features
- Designed specifically for Tarana G1 Base Nodes
- Improved surge protection
- BABA compliant
Specifications
Specifications PWR-216-SH-HRTC-M10
| Connector Type | Push-Pull |
| Number of Contacts | 3 |
| Mating Cycles | ≥ 750 |
| Environmental Sealing | IP67 |
| Cable Shield | Aluminum |
| Drain Wire | Tinned copper |
| Cable Jacket | PVC, black |
| UV Resistance | Yes |
| Diameter Over Jacket | 8.63 mm (0.34 inches) |
| Cable Weight | 0.069 lbs/foot |
| RoHS Compliance | YES |
| DC Power | |
| Number of DC Conductors in Cable | 2 (red, black) |
| Conductor Type | 14 AWG |
| Voltage Withstand | 2,000 Vrms |
| Ampacity | 10 Amps |
| Ground Wire | YES |
| Cable Assembly Environmental | |
| Operating Temperature | -40°C to +70°C (-40°F to +158°F) |
| Storage Temperature | -40°C to +70°C (-40°F to +158°F) |
| Installation Temperature | -10°C to +65°C (14°F to +149°F) |
