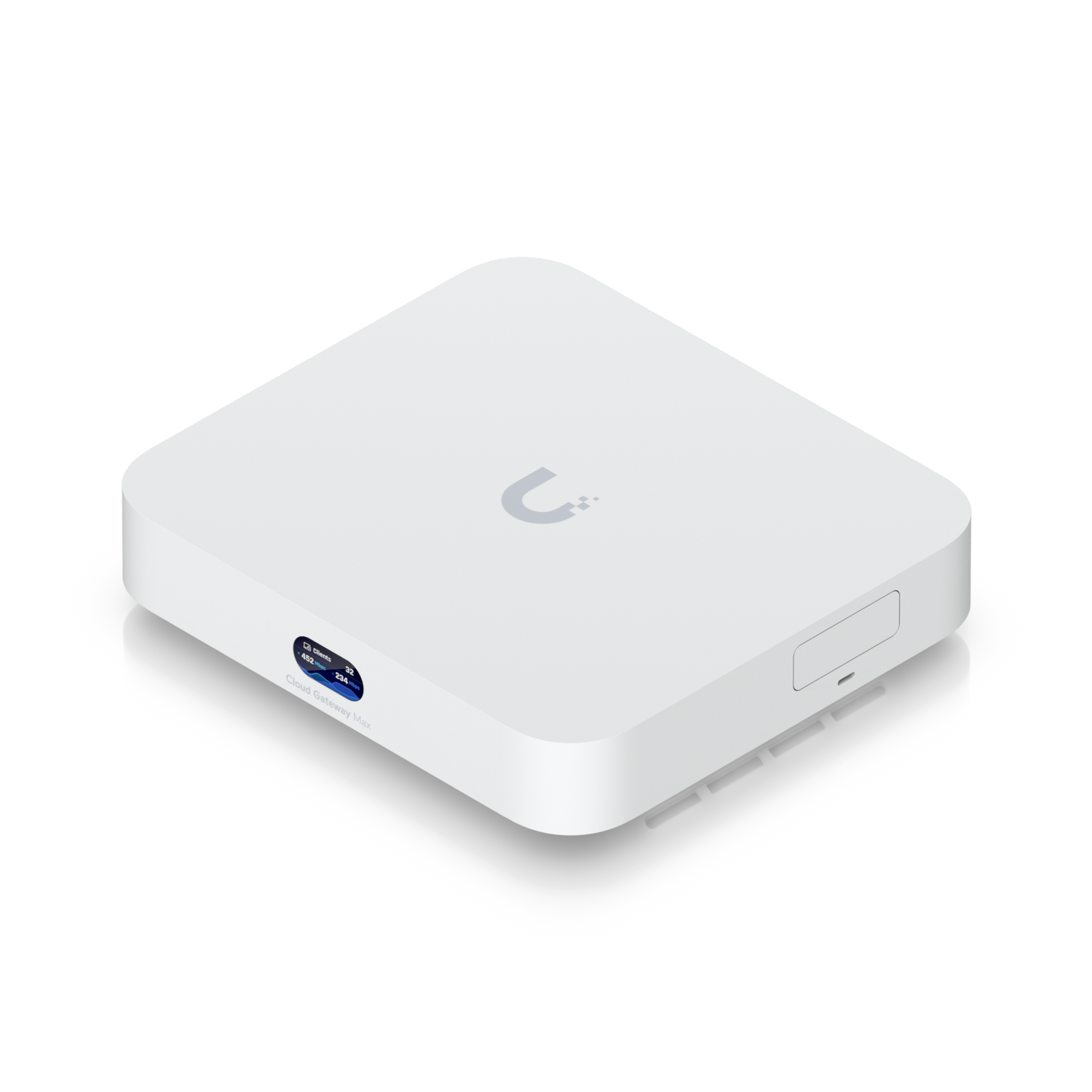

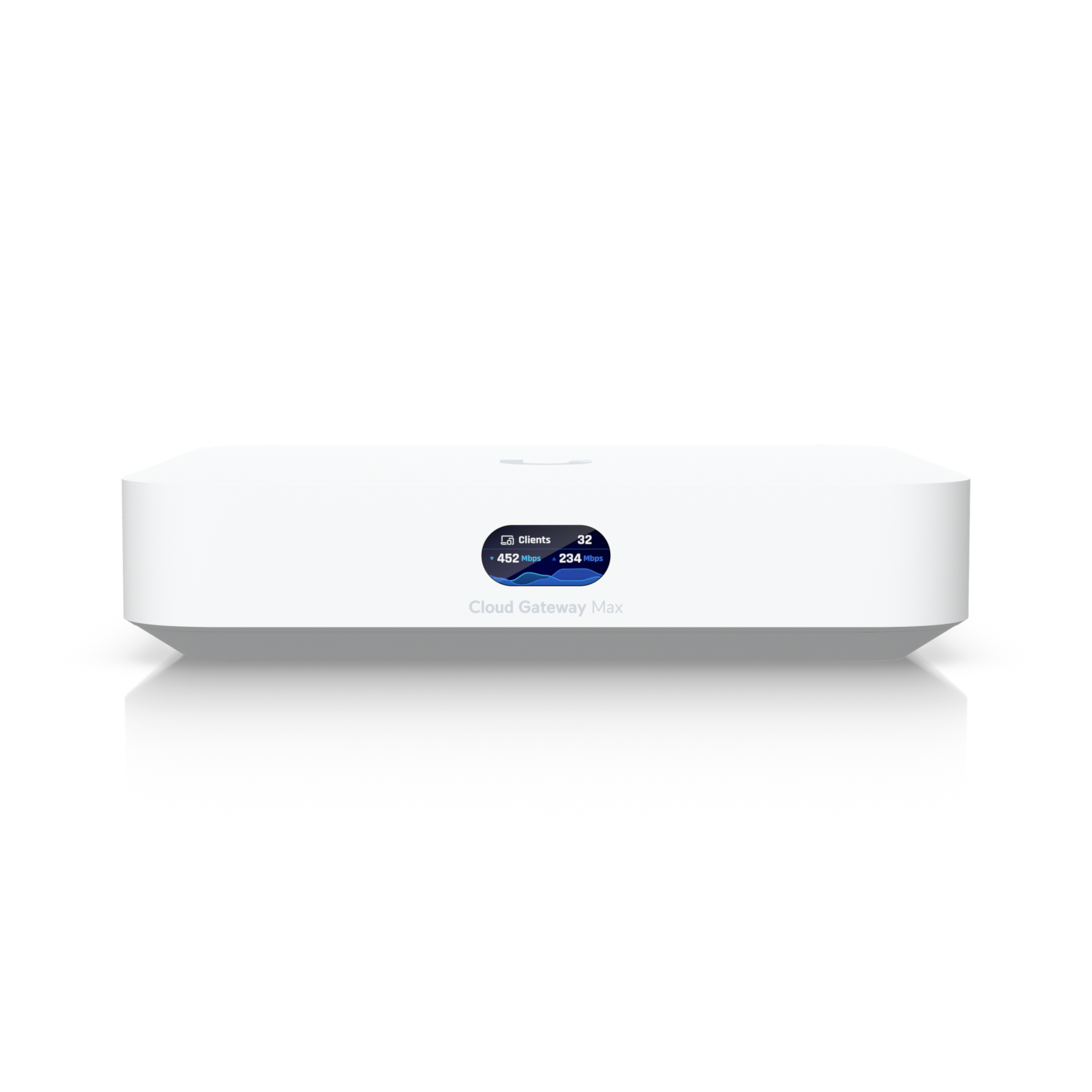

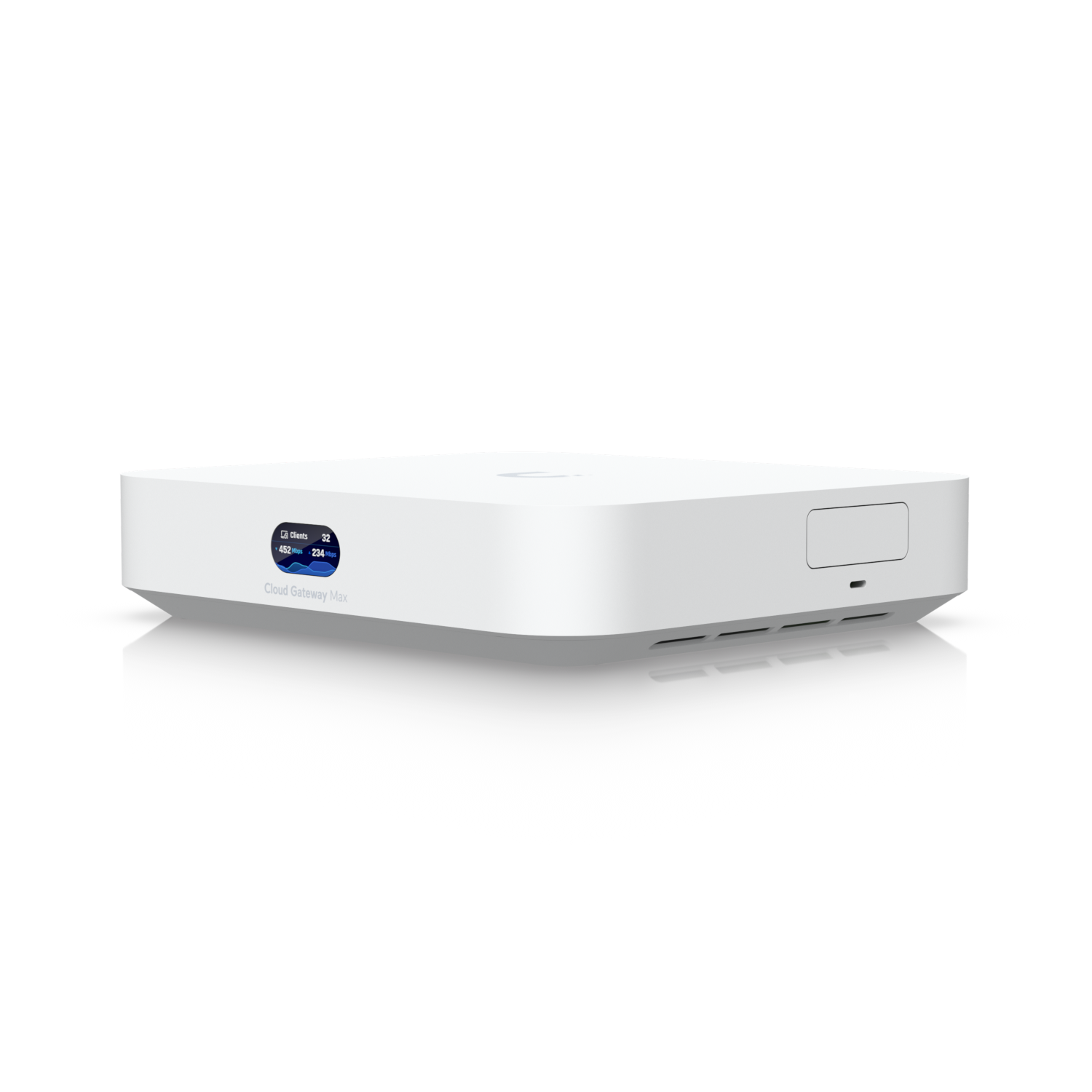

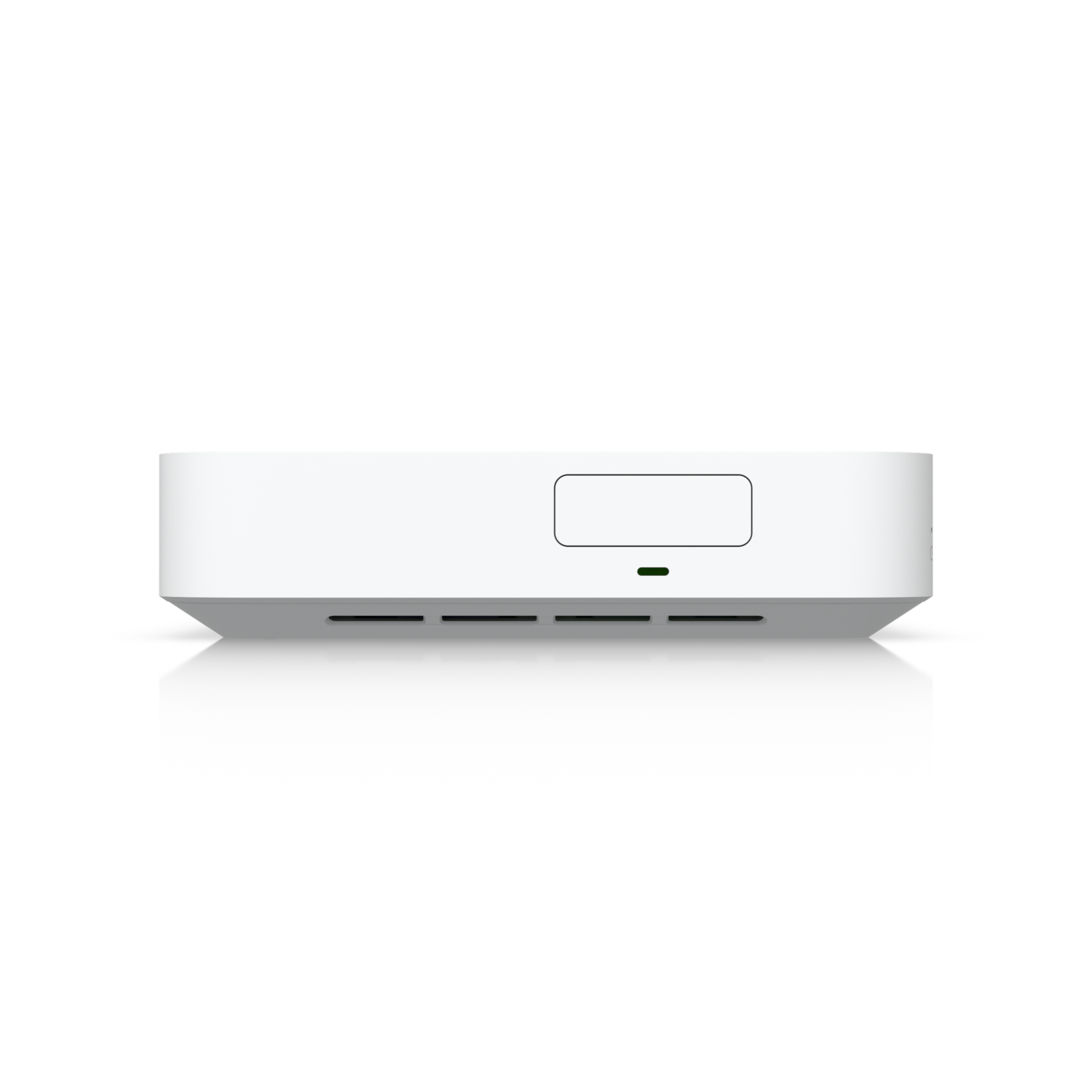

Ubiquiti UniFi Cloud Gateway Max

(0)No Reviews yet
  • SKU: UCG-Max
$279.00
  • Manufacturer: Ubiquiti Networks
  • Spec Sheet: Download
  • Installation Guide: Download

68 In Stock

68 in stock
Mississippi
17 In stock

Product Information

Secure, manage, and monitor over 30 UniFi devices and over 300 clients with the Cloud Gateway Max from Ubiquiti Networks. Supporting up to 1.5 Gb/s IPS routing with advanced security features, this compact gateway may be placed between your network and the internet through its five 2.5 Gb/s Ethernet ports, which include one dedicated WAN and a configurable WAN/LAN port to help manage traffic and deter threats.

Powered by a 1GHz Cortex A53 dual-core processor with 3GB of memory, the Gateway Max can efficiently support VPN connections while features such as a stateful firewall help to protect your network. One of the LAN ports may be configured as a WAN port for multiple internet connections, while multi-WAN load balancing optimizes connectivity. This gateway device also includes a 512GB NVMe SSD for NVR storage. A convenient 0.96" LCM display allows you to check the status of your devices quickly. The full UniFi application suite is installed for device management.

Product Includes
  • Ubiquiti Networks Cloud Gateway Max
  • USB-C Power Adapter & Cable
  • Feet
  • Ethernet Cable
  • L-Wrench
  • Limited 1-Year Manufacturer Warranty

Specifications

Specifications UCG-Max

Dimensions141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2")
Weight519 g (1.1 lb)
Enclosure materialPolycarbonate
Hardware
ProcessorQuad-core ARM® Cortex®-A53 at 1.5 GHz
System memory3 GB DDR4
On-board storage512 GB NVMe SSD
Management interfaceEthernet
Bluetooth

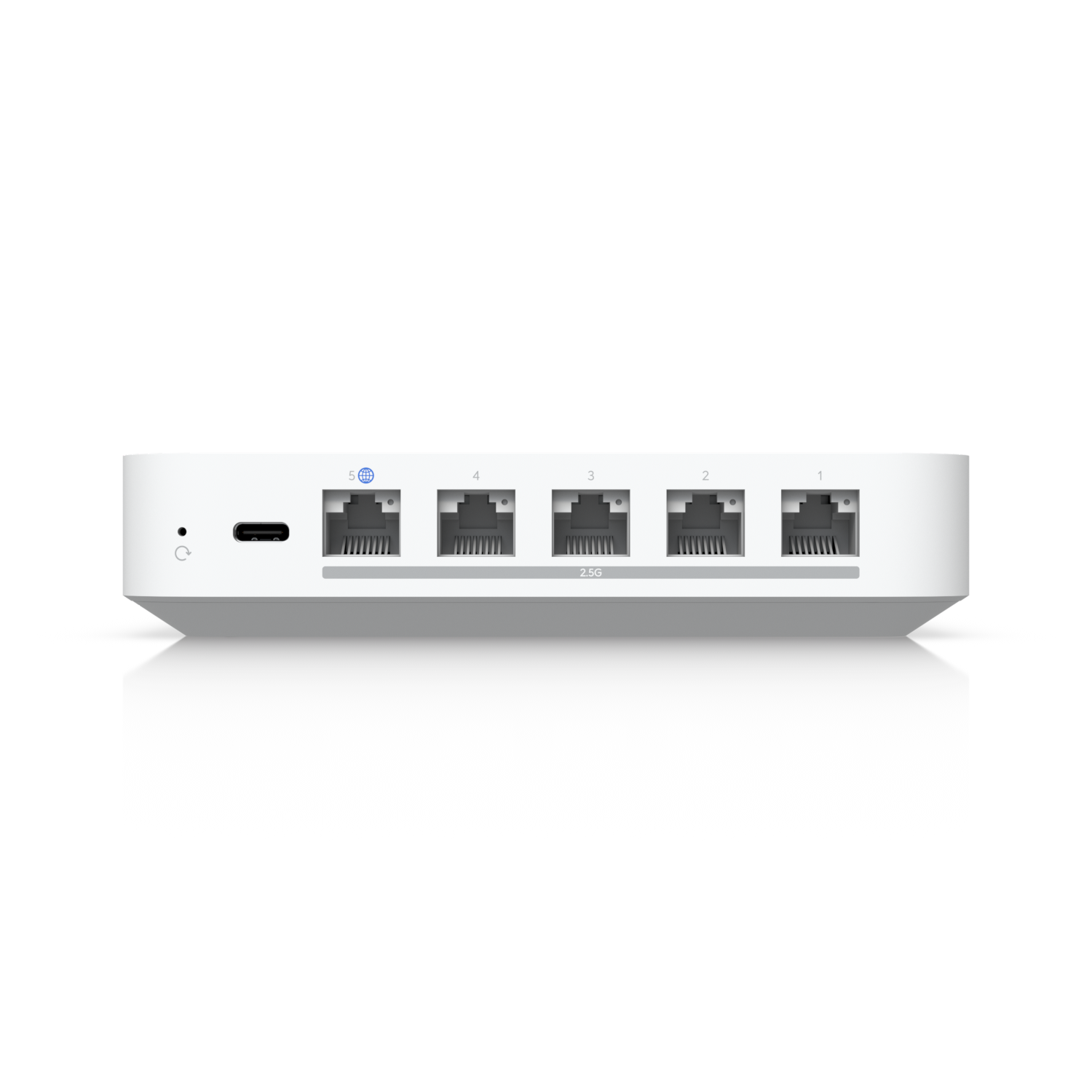

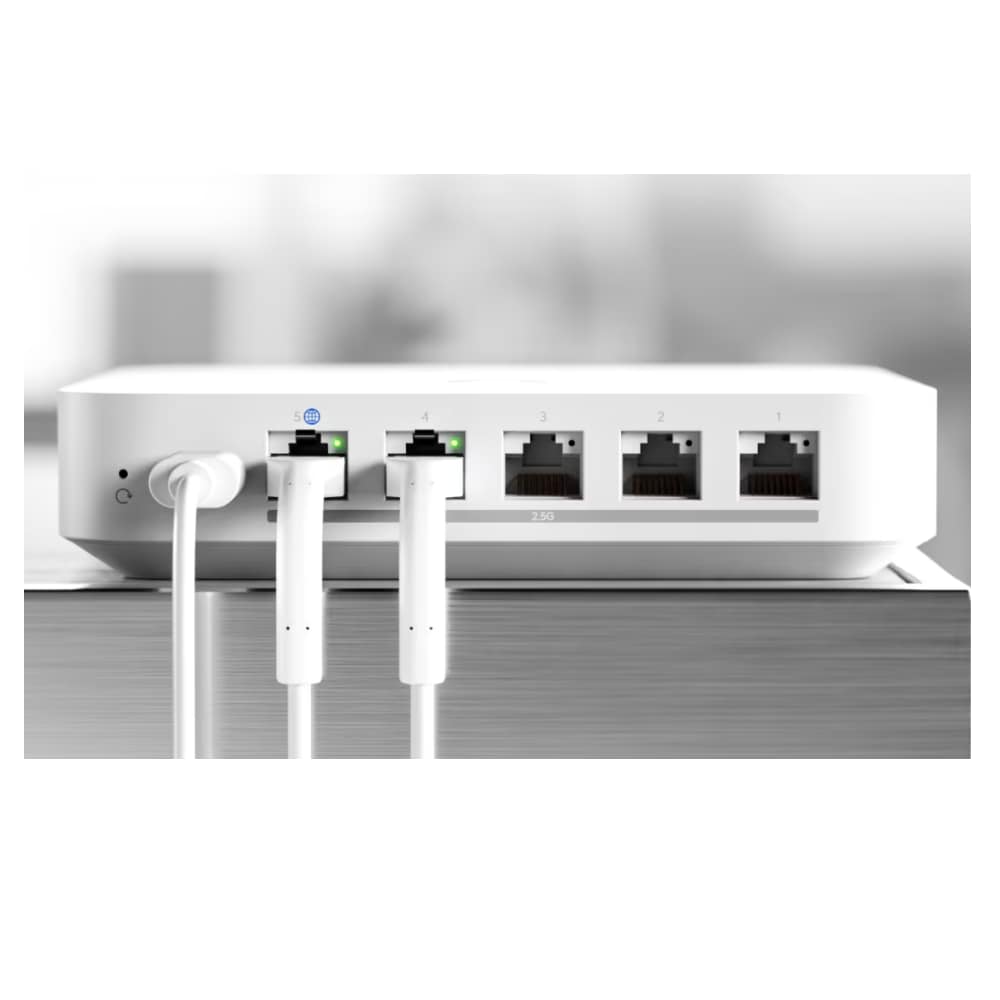

Networking interface

LAN:
(4) 1/2.5 GbE RJ45 ports

WAN:
(1) 1/2.5 GbE RJ45 port

IDS/IPS throughput1.5 Gbps*
Power methodUSB type C (5V DC/5A)
Supported voltage range100–240V AC
Max. power consumption16.1W

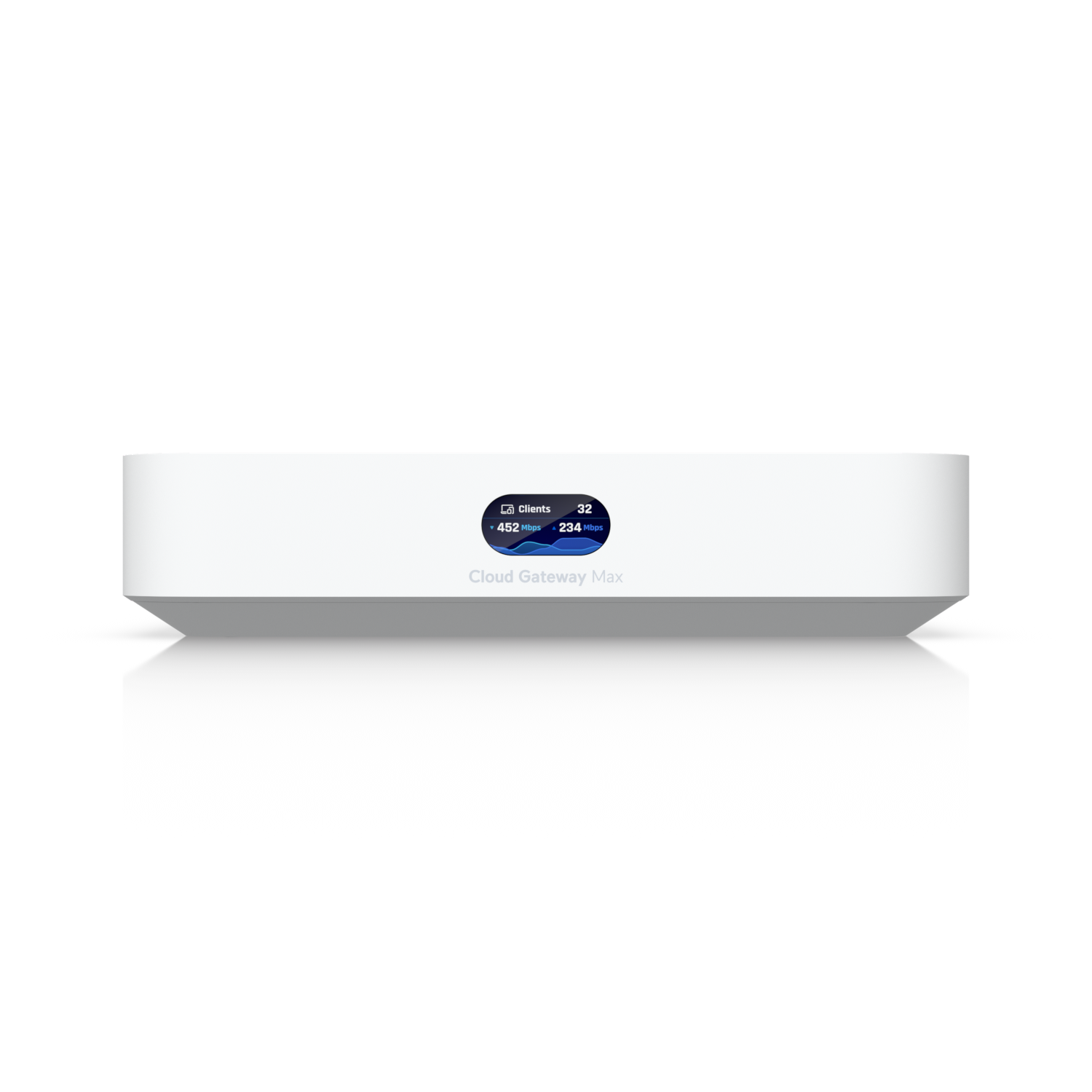

LCM display0.96" status display
ButtonFactory reset
Ambient operating temperature-10 to 40° C (14 to 104° F)
Ambient operating humidity5 to 95% noncondensing
CertificationsCE, FCC, IC
Gateway Features
PerformanceRedundant WAN with failover and load balancing
WiFi QoS with UniFi APs
Application, domain, and country-based QoS
Application and device type identification
Additional internet failover with LTE Backup
Internet quality and outage reporting
Next-generation securityApplication-aware firewall rules
Signature-based IPS/IDS threat detection
Content, country, domain, and ad filtering
VLAN/subnet-based traffic segmentation
Full stateful firewall
Advanced networkingLicense-free SD-WAN
WireGuard, L2TP and OpenVPN server
OpenVPN client
OpenVPN and IPsec site-to-site VPN
One-click Teleport and Identity VPN
Policy-based WAN and VPN routing
DHCP relay
Customizable DHCP server
IGMP proxy
IPv6 ISP support
LEDs
EthernetGreen: link/activity
Application Requirements
Mobile appUniFi iOS™ and Android™: Version 10.17.2 and later
