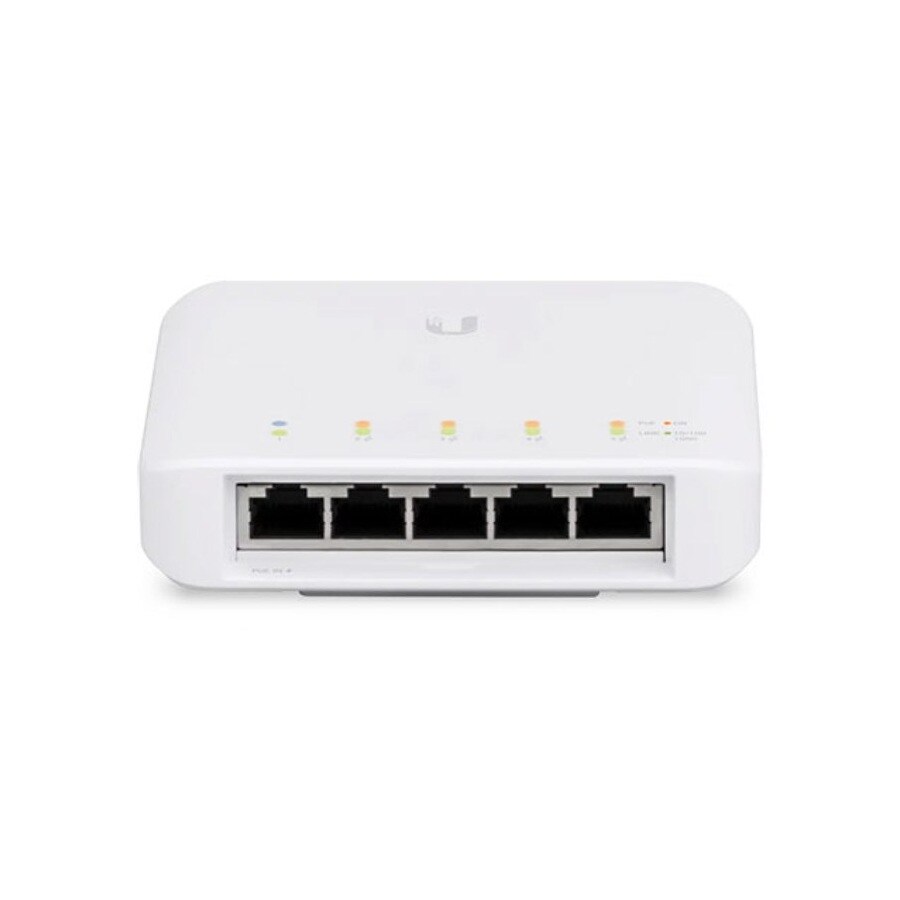

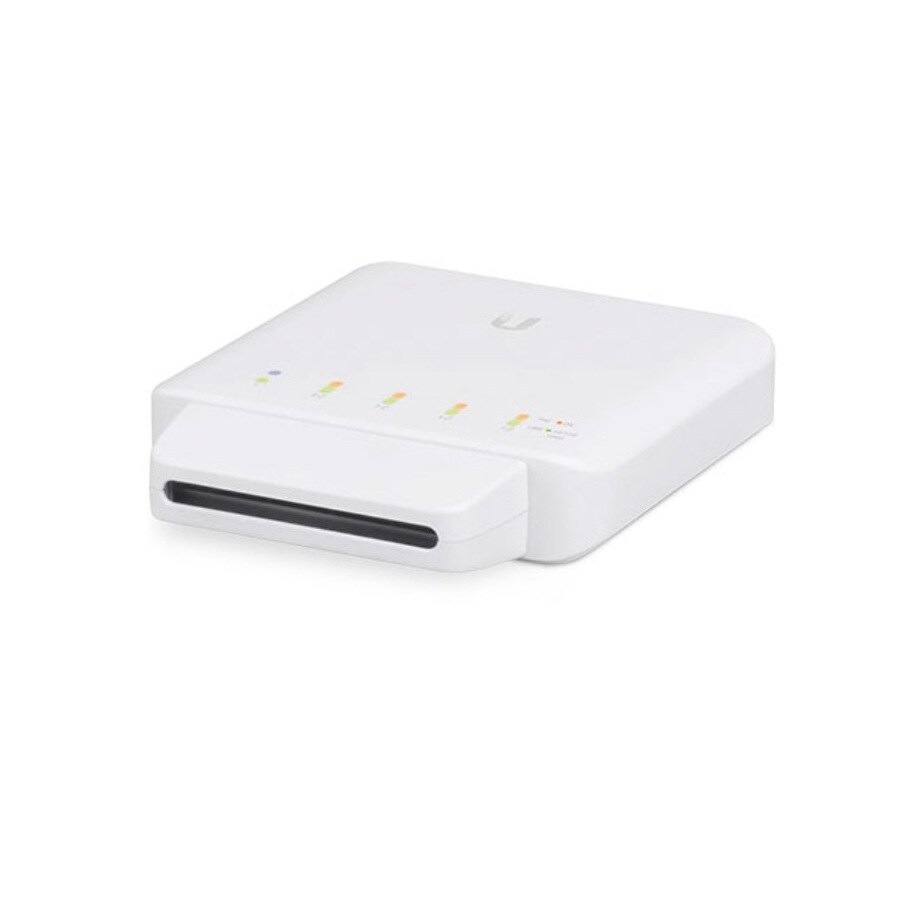

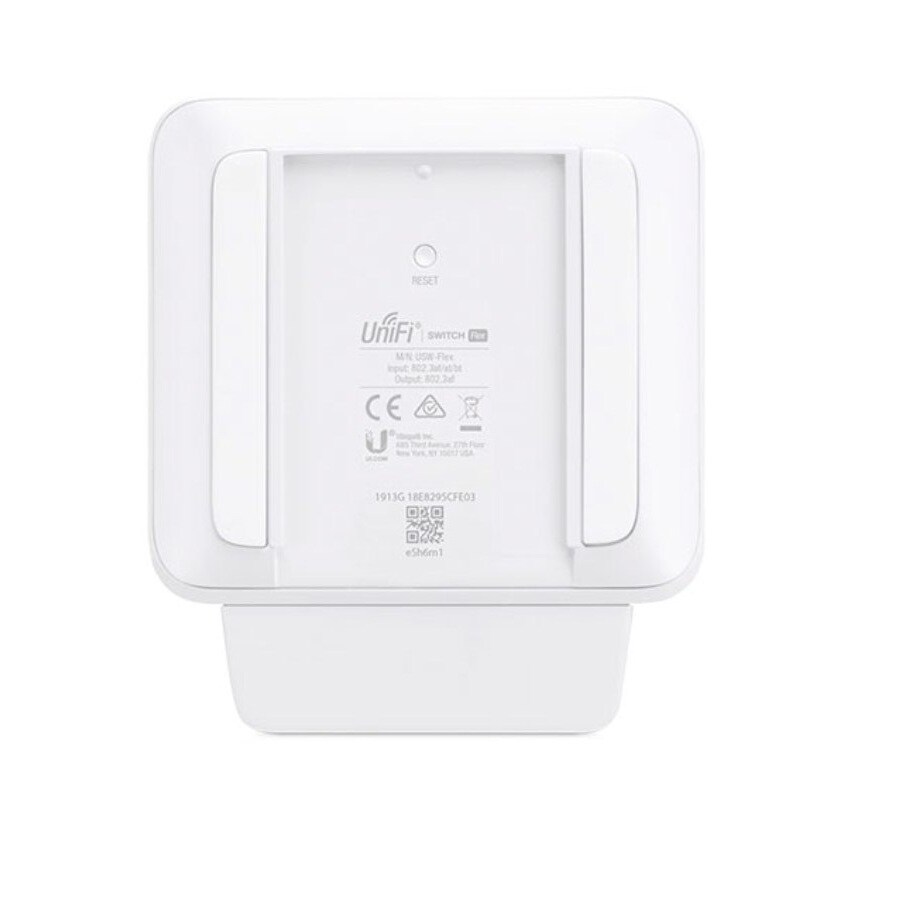

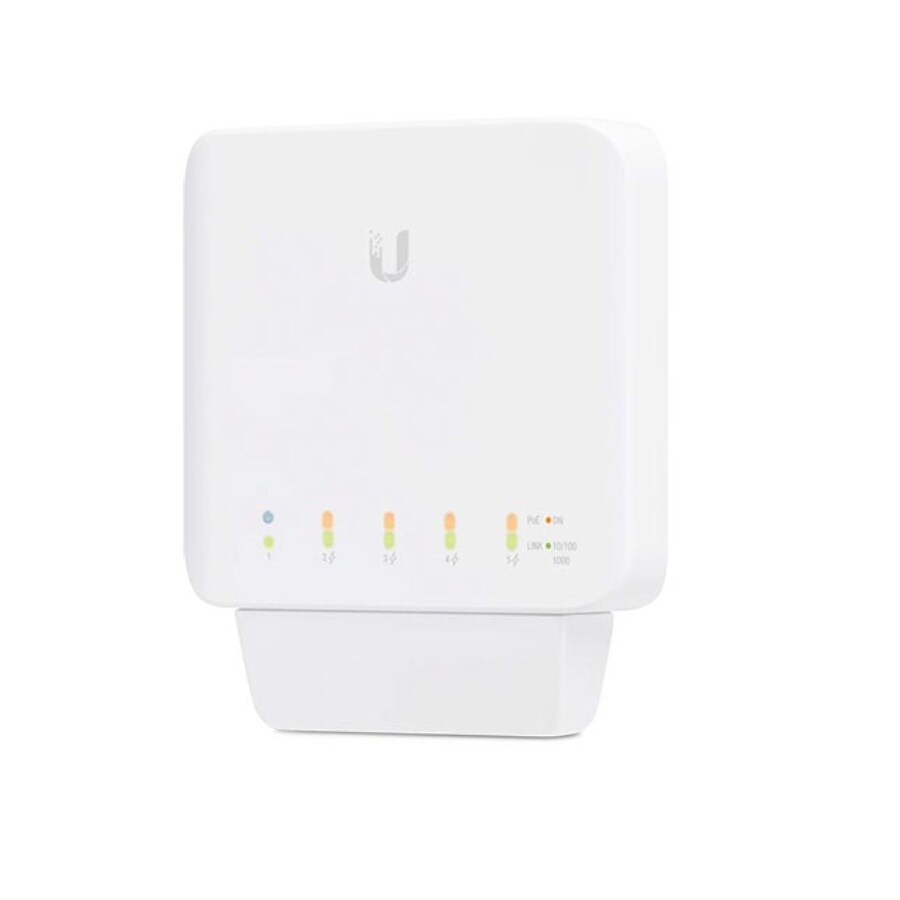

Ubiquiti UniFi Flexible 5-Port Layer 2 PoE Switch
- SKU: USW-Flex
$99.00
Product Information
Flexible 5-port, Layer 2 PoE switch for indoor and outdoor use, that can be powered with PoE++.
Specifications
Specifications USW-FLEX
| Dimensions | 122.5 x 107.1 x 28.0 mm (4.82 x 4.22 x 1.10") |
| Weight | 230 g (8.11 oz) |
| Networking Interfaces | (5) 10/100/1000 Mbps RJ45 Ports |
| Management Interface | Ethernet In-Band |
| Power Method (Port 1) PoE Mode 1 PoE Mode 2 PoE Mode 3 | 802.3af/at (Pins 1, 2+; 3, 6-)1 802.3bt (Pins 1, 2+; 3, 6- and 4, 5+; 7, 8-)2 50V/60W PoE Adapter3 |
| PoE Out (Ports 2-5) | 802.3af (Pins 1, 2+; 3, 6-) |
| Max Power Consumption (Excluding PoE Output) | 5W |
| Max PoE+ Wattage Per Por | 15.4W |
| Total PoE Power Budget Powered by AF mode PSE Powered by AT mode PSE Powered by BT mode PSE Powered by PoE Adapter (Enabled in Controller) | 8W 20W 46W 46W |
| Voltage Range 802.3af 802.3at/bt | 44 - 57V 50 - 57V |
| LEDs System RJ45 Data Ports | Status PoE; Link/Speed/Activity |
| ESD/EMP Protection | ± 16kV Air, ± 16kV Contact |
| Operating Temperature 46W PoE Output 25W PoE Output | -40 to 55° C (-40 to 131° F) -40 to 65° C (-40 to 149° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| Certifications | CE, FCC, IC |
