Ubiquiti UniFi Aggregation L2 Switch
- SKU: USW-Aggregation
$269.00
Product Information

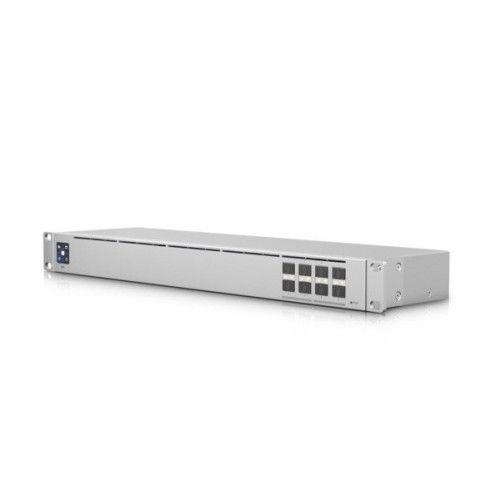

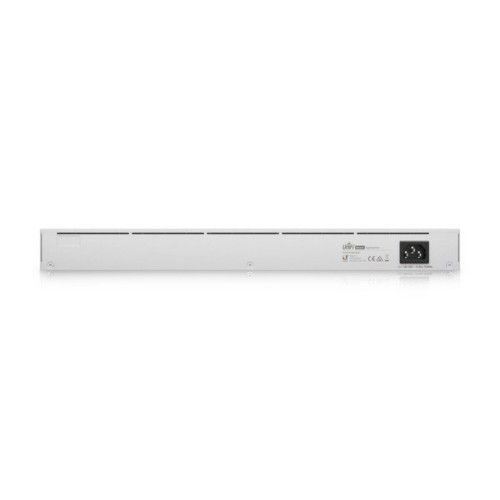

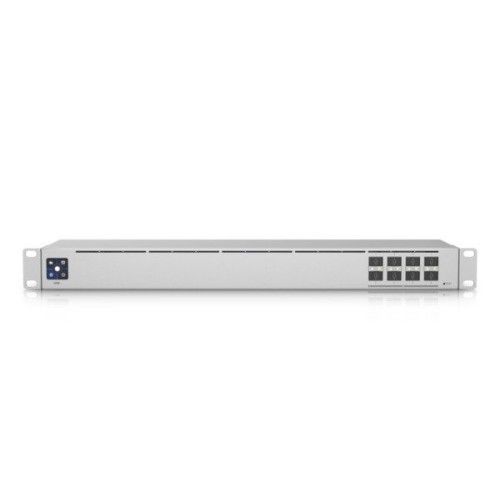

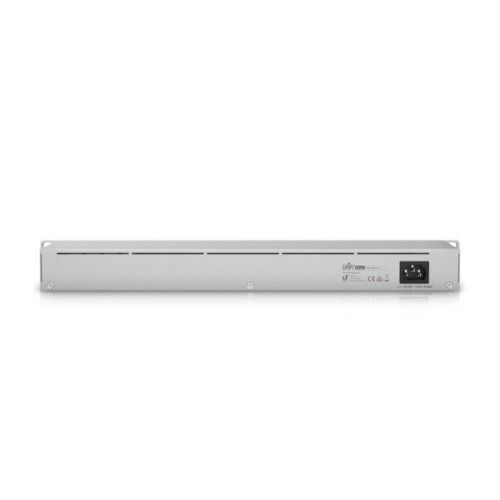

An 8-port, Layer 2 switch made for 10G SFP+ connections.
Specifications
Specifications USW-Aggregation
| Dimensions | 442.4 x 120 x 43.7 mm (17.42 x 4.72 x 1.72") |
| Weight | WithoutMount: 2.65 kg (5.84 lb), With Mount: 2.74 kg (6.04 lb) |
| Enclosure Material | SGCC Steel |
| Total Non-Blocking Throughput | 80 Gbps |
| Switching Capacity | 160 Gbps |
| Forwarding Rate | 119.04 Mpps |
| Max. Power Consumption | 30W |
| Power Method | Universal ACInput: 100-240VAC, 50/60 Hz |
| Power Supply | AC/DC, Internal, 36W |
| ManagementInterface | EthernetIn-Band |
| Modes | SMB Layer 2 GigabitEthernetSwitch |
| ESD/EMPProtection | Air: ± 16kV, Contact: ± 12kV |
| Operating Temperature | -5 to 40° C(23 to 104° F) |
| Operating Humidity | 10 - 90%Noncondensing |
| Certications | CE, FCC, IC |
| System | (1) Bootup Animation: Bootup in Progress FirmwareUpgrade Icon: FirmwareUpgrading SteadyWhite: Factory Defaults, Awaiting Adoption SteadyBlue: Device isAdopted |
| SFP+ | White: 1/10G |
