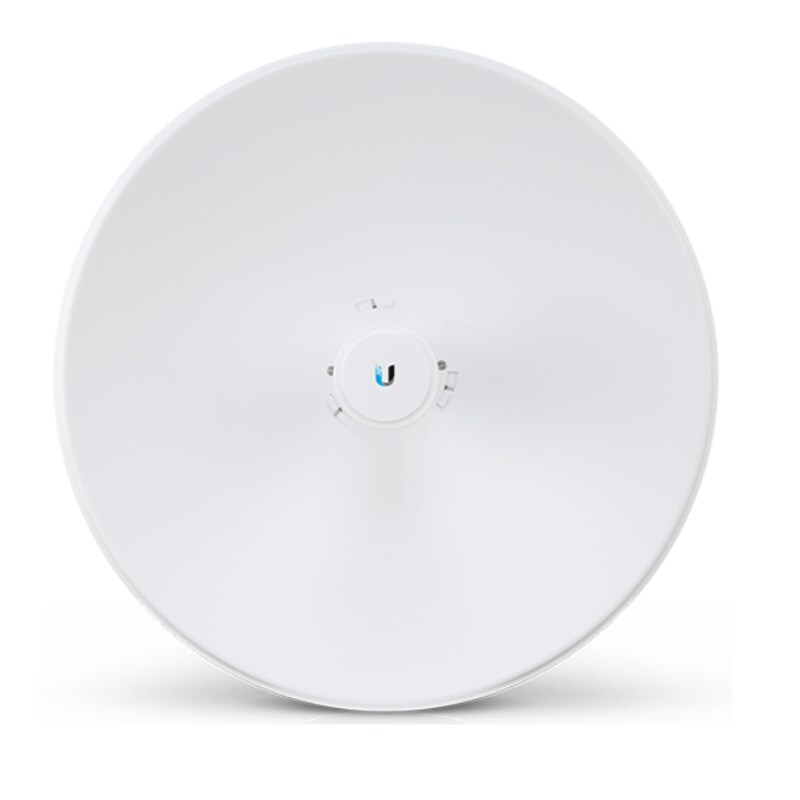

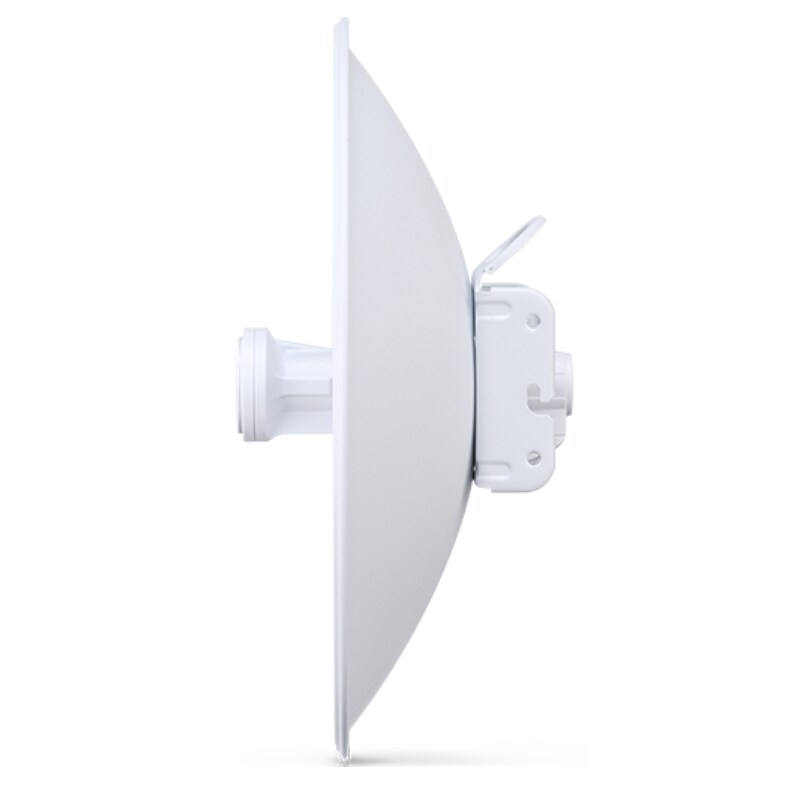

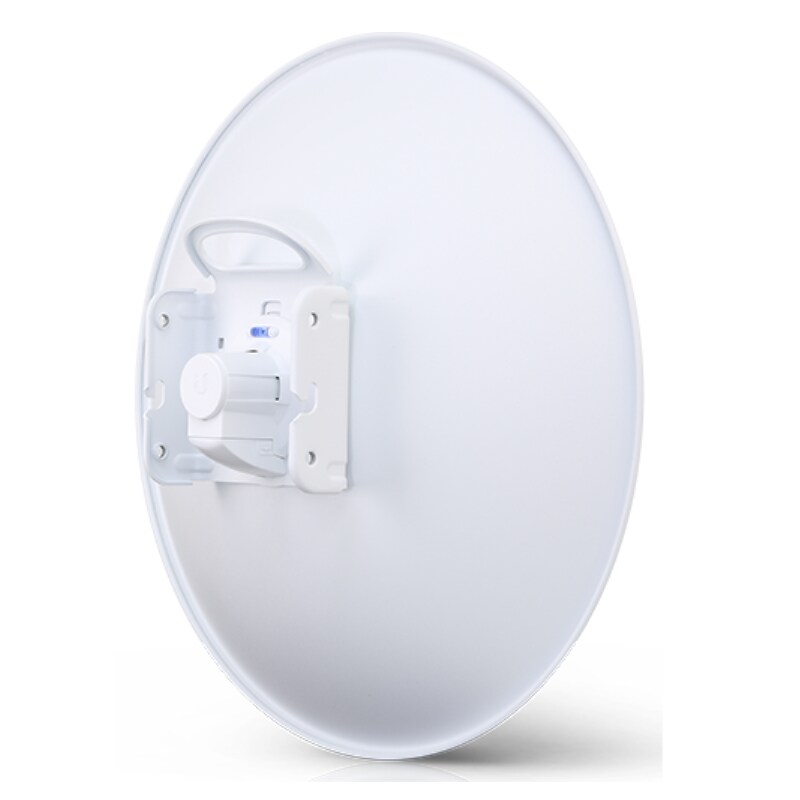

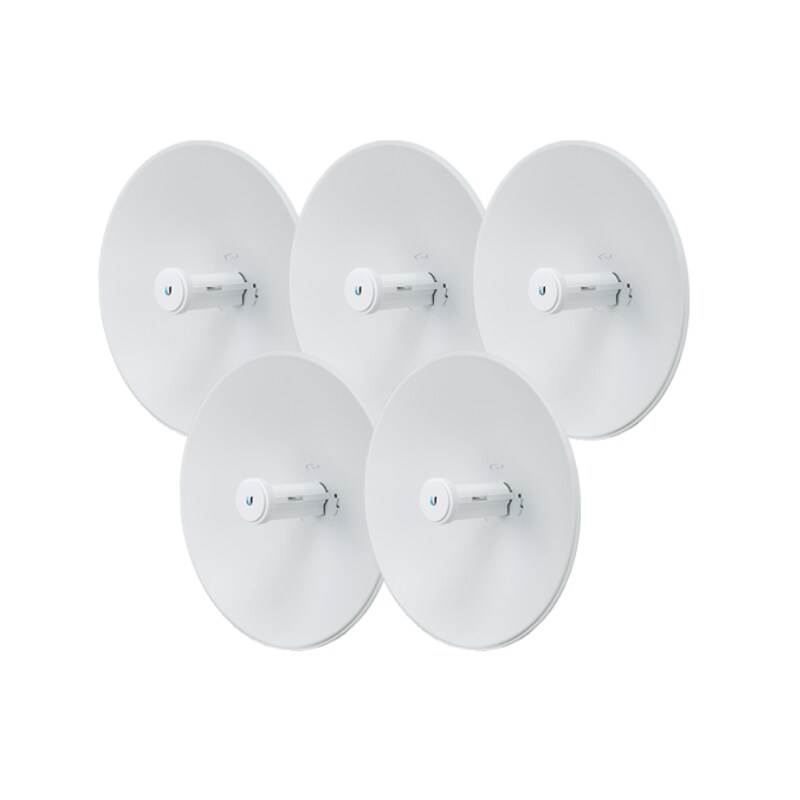

Ubiquiti UISP airMAX PowerBeam 5AC Bridge 5-Pack (US)
- SKU: PBE-5AC-GEN2-5-US
$580.00
Product Information
High-performance 5 GHz Point-to-Point (PtP) bridge with integrated dish reflector.
Specifications
Specifications PBE‑5AC‑Gen2-5
| Dimensions | 420 x 420 x 230 mm (16.54 x 16.54 x 9.06") |
| Weight | 2.22 kg (4.89 lbs) |
| Power Supply | 24V, 0.5A Gigabit PoE Adapter (Included) |
| Max. Power Consumption | 8.5W |
| Power Method | Passive PoE (Pairs 4, 5+; 7, 8 Return) |
| Supported Voltage Range | 20 to 26VDC |
| Operating Frequency | Worldwide 2412 - 2472 MHz 5150 - 5875 MHz USA: U-NII-1 5150 - 5250 MHz USA: U-NII-2A 5250 - 5350 MHz USA: U-NII-2C 5470 - 5725 MHz USA: U-NII-3 5725 - 5850 MHz |
| Gain | 25 dBi |
| Networking Interface | (1) 10/100/1000 Ethernet Port |
| Processor Specs | MIPS 74Kc |
| Memory | 64 MB |
| LEDs | Power, Ethernet, (4) Signal Strength |
| Channel Sizes | PtP Mode 10/20/30/40/50/60/80 MHz PtMP Mode 10/20/30/40 MHz |
| Enclosure Characteristics | Antenna Feed Outdoor UV Stabilized Plastic Dish Reflector Powder-Coated SPCC |
| Mounting | Pole-Mounting Kit (Included) |
| Wind Loading | 380 N @ 200 km/h (85.4 lbf @ 125 mph) |
| Wind Survivability | 200 km/h (125 mph) |
| ESD/EMP Protection | Air: ± 24 kV, Contact: ± 24 kV |
| Operating Temperature | -40 to 70° C (-40 to 158° F) |
| Operating Humidity | 5 to 95% Noncondensing |
| RoHS Compliance | Yes |
| Salt Fog Test | IEC 68-2-11 (ASTM B117), Equivalent: MIL-STD-810 G Method 509.5 |
| Vibration Test | IEC 68-2-6 |
| Temperature Shock Test | IEC 68-2-14 |
| UV Test | IEC 68-2-5 at 40° C (104° F), Equivalent: ETS 300 019-1-4 |
| Wind-Driven Rain Test | ETS 300 019-1-4, Equivalent: MIL-STD-810 G Method 506.5 |
| Certifications | CE, FCC, IC |
