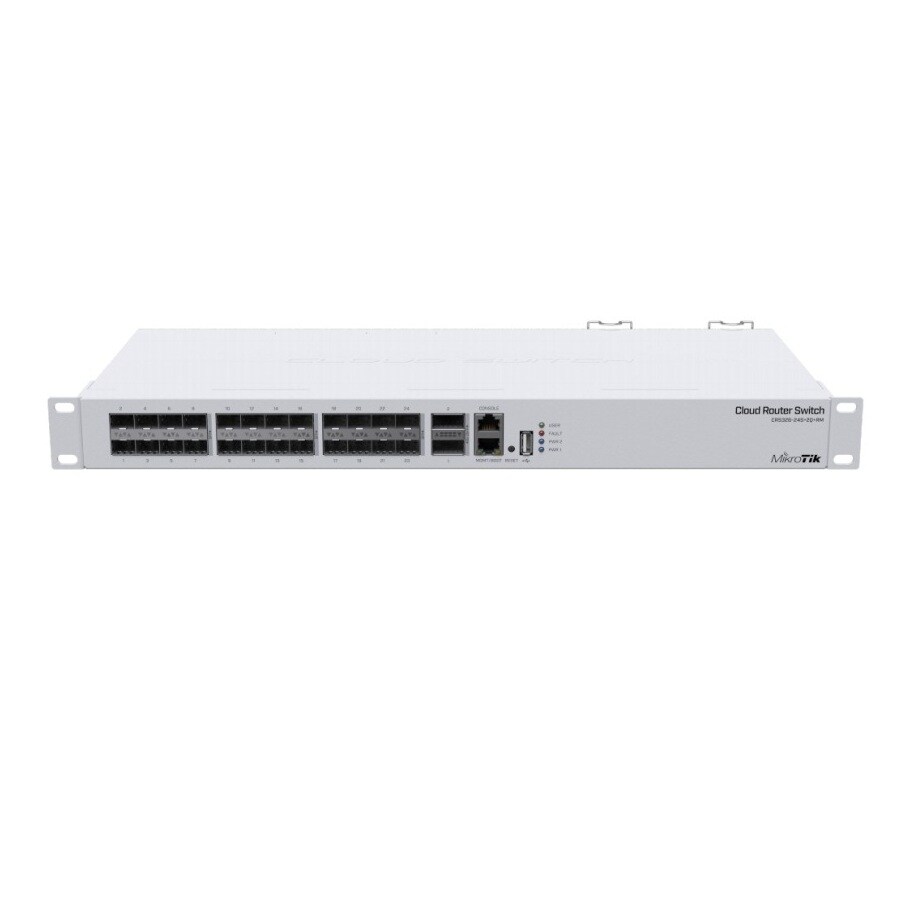

MikroTik CRS326 Cloud Router Switch (24 SFP+ Ports)
- SKU: CRS326-24S+2Q+RM
- Manufacturer: MikroTik
- Data Sheet: Download
Product Information
The MikroTik CRS326 Cloud Router Switch with 24 SFP+ ports is the ideal upgrade for managing substantial data, whether it's providing Internet access or maintaining a massive data center. Boasting two 40 Gbps QSFP+ ports and twenty-four 10 Gbps SFP+ ports for incredibly fast and stable fiber connections, this switch ensures seamless performance and offers a total non-blocking throughput of 320 Gbps and a switching capacity of 640 Gbps, forwarding data at a rate of 252 Mpps for common packets.
The CRS326 Switch is easy to manage, equipped with a full-size USB port for configuration and dual power supply for redundancy, ensuring no unexpected downtime. You can choose between the legendary feature-packed RouterOS or the powerful yet straightforward SwOS for booting, providing you with flexibility in setup and configuration. Whether you're setting up new networks or enhancing existing ones, the Mikrotik CRS326 is a professional's choice, supported by a range of accessories designed to unleash its full potential in any setup.
Product Applications- Internet Service Provider (ISP) Networks
- Data Centers
- Provides total non-blocking throughput of 320 Gbps and switching capacity of 640 Gbps with forwarding rate of 252 Mpps with most common packets
- Easy to manage and it has a full-size USB port for configuration and dual power supply for redundancy with no unexpected downtime
- Great for new or existing networks with an assortment of accessories that will help you unleash the full potential of this switch in any setup
- 40 Gbps QSFP+ ports for remarkably fast and stable fiber connection
- QCA9531 CPU
- One 10/100 Ethernet Port
- 24 SFP+ ports
- 2 40G QSFP+ Ports
- 650 MHz CPU Nominal Frequency
- -20°C to 60°C Operating Temperature
- 443 x 200 x 44 mm
- MikroTik CRS326 Cloud Router Switch (24 SFP+ Ports)
- 2 IEC Cords
- Screw and Feet Kit (K10)
- 2 Rack Ears
Specifications
Specifications CRS326-24S+2Q+RM
Product code | CRS326-24S+2Q+RM |
CPU | QCA9531, 650 MHz |
Size of RAM | 64 MB |
Storage | 16 MB flash |
10/100 Ethernet ports | 1 |
10G SFP+ ports | 24 |
40G QSFP+ ports | 2 |
Supported input voltage | AC power supply 100 - 240 V |
Redundant supply | Yes |
USB port | USB type A |
Serial port | RJ45 |
Dimensions | 443 x 183 x 44 mm |
Operating temperature | -20°C .. +60°C |
Operating system | RouterOS or SwitchOS, License level 5 |
Max power consumption | 69 W |
